Wood And Construction Chemicals Electromechanical Test Machine
Wood and Construction Chemicals Electromechanical Test Machine

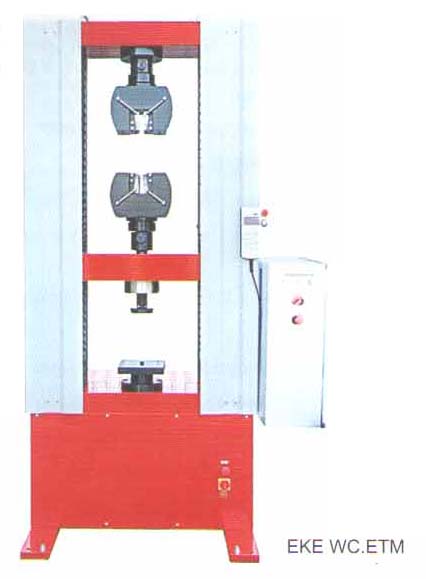

EKE WC.ETM:
Electro – mechanical System with servo Motors, Servo Drive and Electronic Control Unit with Friction, based on high precision and high efficiency . It dose not require hydraulic oil. Maintenance costs are low and environmentalism that stands out with the system.
Tensile , Compression , Flexure and cyclic tests are performed with a single system by changing only the test fixtures. Load capacity 50 kg, 100 kg, 500 kg, 10 kN, 25 kN, 50 kN, 100 kN, 200 kN , 300 kN, 500 kN and 1000 kN are available as standard products in our range, higher capacities are manufactured on special order.
Load and Strain Controlled Tests can be performed with very sensitive elongation. The test requirements as requested position controlled speed (0.0005 mm/min to 2000 mm/min) are provided with high precision. Also according to the requirements, total capacity of the machine under load controlled rate from 0.5% to 100% with maximum error class % ± 0.5
Strain controlled tests could be done with non – contact video extensometer with 1µm resolution. Video extensometer measuring system works in synchronized mod with the systems own software.
A control unit which is the heart of the system could transfer data 1 kHz – 5 kHz and 10 kHz in one second. A remote control device which when attached with control system can perform operations such as , sample insertion, jaws control; positioning and also can perform the complete test directly without using software.
ENKAY electro – mechanical testing machines are preferably used in food, composite material, elastic, plastic, rubber materials, metals , biomedical, and textile sectors.
Technical Specifications:
• Load capacity 50 kg, 100 kg, 500 kg, 10 kN, 25 kN, 50 kN, 100 kN, 200 kN, 300 kN, 500 kN and 1000 kN are available as standard products in our range, higher capacities are manufactured on special order.
• Comes with Standard Jaws and Grips, Extras are optional
• Machine has 2 –columned Frame and Pneumatic “V Type” jaw system for Flat and Cylinder specimens.
• Load measurements and control is processed with load cell and has class 0.5 sensitivity between 1-100% of capacity, according to ISO 7500-1 standard.
• Loading rate is adjustable between 0.01 kN/ sec and 15 kN / sec
• Position Measurement and Control can be done with 0.0001 mm sensitivity, by position sensor which is integrated inside the device
• Machines Electronic Control Unit (EDC Unit) is from USA/Germany
• EDC unit has 4-channel , and each channel has 1000 data per second data control and process rate separately
• With Machine, Test Software will be given
• With, Software , User can make different test procedures like Tensile Force, Tensile Strength , Rupture Force and Total Elongation Automatically
• Also, User can define 32 different parameters depending upon load and position-control
• Remote control unit RMC will be given with EDC unit.
• With remote control , user can follow parameters such as real time stress, displacement and strain on internal screen
• Piston movement control, hydraulic jaws on/off control and systems general functions are also controlled with this remote control without any PC
• Electronic Unit: Controller, from USA/Germany
• Control: 1- Controller and 2 – Computer Software “Test and Motion” (With Load and Displacement Control)
• Sensitivity : 0.01 mm/min or 0.01 kN/sec
• Resolution : 18 bit – 22 bit
• Load control rate : 0.01 kN/sec
• Control speed sensitivity : ≤ % 1 of set value
• Displacement measurement sensitivity : ± 0.5%
• Displacement measurement stability : 0.01µm
• Displacement control rate : 0.01 – 500 mm/min
• Deformation Measurement Sensitivity : 0.01 mm/min
• Deformation control speed : 0.01 mm.min
• Upper test distance : 1195 mm
• Lower test distance : 1100 mm
• Horizontal test width : 500 mm
• Dimensions “ Width x Length x Height ) : (mm) 955 x 1050 x 2300
• Weight : 1000 kg
• PC Software comes as standard ( Test & Motion)
• Available operating temperature : 10 – 30Co, humidity : <80%
