VISCOSITY/ FLOW CUP

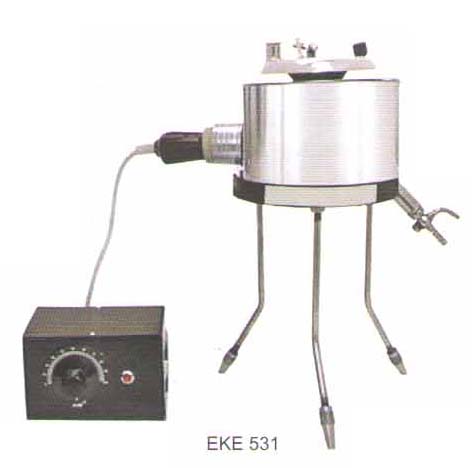

Standard Tar Viscometer
Ref. Standard IS: 1206, IP 72, STPTC.RT 2, RT 3, BS:2000 (Part 72)

EKE 531:

For determining the viscosity of cut back bitumen and road oil. The viscometer consists of a chrome plated copper bath, with a drain valve and a central tube to receive the test cup and to position the stirrer, and is mounted on a stand with levelling feet. Stirrer has a curved shield and is provided with an insulated handle, thermometer socket and swivel support for the valve.  Supplied complete with 10 mm cup and ball valve of 4 mm cup and ball valve. Standard Tar Viscometer,  Electrical Heating with Immersion Heating Elements and Dimmerstat for controlling the temperature. Suitable for operation on 220V, 50 Hz,
single phase, AC supply.

Replacement Parts:
EKE 53101: Cup, 10 mm
EKE 53102: Ball Valve, 10 mm
EKE 53301: Cup, 4 mm
EKE 53102: Ball Valve, 4 mm

Optional Extras:
EKE 52610: Thermometer IP SC, Range 0° C to 45°C
EKE 52611: Thermometer IP 9C, Range 40° C to 85°C
EKE 52612: Thermometer IP 10C, Range 76° C to 122°C

Flow Cup No. 4
IS: 3944

EKE 538:

Simple flow cup of the efflux type is used for approximate measurements of apparent viscosity for control of consistency during manufacture and use of paints, lacquers and viscous products. Flow cups with protective skirt are made from gun metal with Stainless Steel orifice and are equivalent to Type B Cus.

Each cup is supplied complete with a stand having leveling screws.

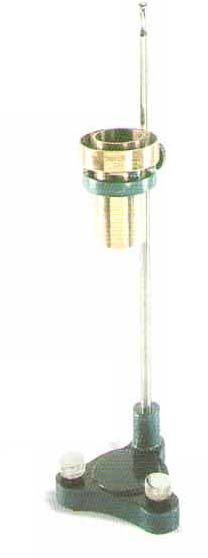

Flow Cup No. 4, (With NPL Calibration )
IS: 3944

EKE 539:

Simple flow cup of the efflux type is used for approximate measurements of apparent viscosity for control of consistency during manufacture and use of paints, lacquers and viscous products. Flow cups with protective skirt are made from gun metal with Stainless Steel orifice and are equivalent to Type B Cus.

Each cup is supplied complete with a stand having leveling screws.
