VACCUM PUMPS (LABORATORY USE)

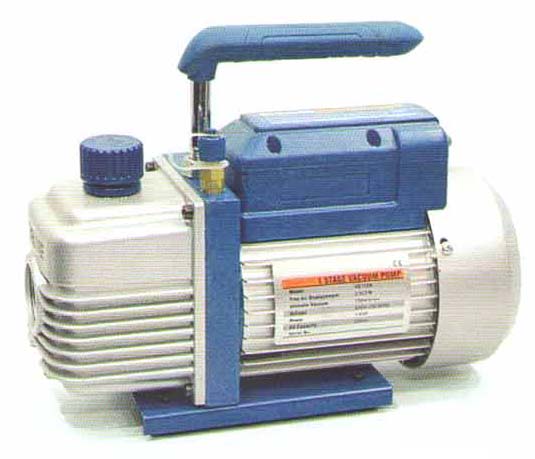

Vacuum Pump 51 Litter – Min. Capacity, 220-240 V 60  Hz

EKE 3505 60 Hz:

ENKAY supplies high quality single and dual stage vacuum pumps for providing the vacuum power which is required for various applications in material testing.

Vacuum Pump 100 Litter – Min. Capacity, 220-240 V 50 Hz

EKE 3510 50 Hz:

ENKAY supplies high quality single and dual stage vacuum pumps for providing the vacuum power which is required for various applications in material testing.

•    Two stage rotary – vane design improves the ultimate vacuum and pump speed and reduces the evacuation time.
•    The integrated pump body design ensures the reliability and easy maintenance
•    Built – in oil pump cycling design forced – lubricates the pump chamber and sliding bearing and ensures its lubrication
      and seal.
•    Anti – Suckback design prevents oil from returning back to the system
•    The intake filter can prevent foreign matter from entering in to the pump chamber and the exhaust fitting separates oil vapor from the exhaust flow
•    Aluminium oil housing , trestle and motor cover from a rigid and light design
•    Thermal protection of the motor makes the pump to run steadily safety

Specifications:
•    Frequency : 50 Hz
•    Flow Rate CFM : 3.5
      L/min : 100
•    Ultimate Partial Pressure : 2 Pa
     Total Pressure : 150 micron
•    Motor (HP) : 1/3
•    Intake Fitting : ¼ ”  & 3/8” Flare
•    Oil Capacity : 250 ml
•    Dimensions : 320 x 125 x 235 mm
•    Weight (Approx.) : 8.0 kg

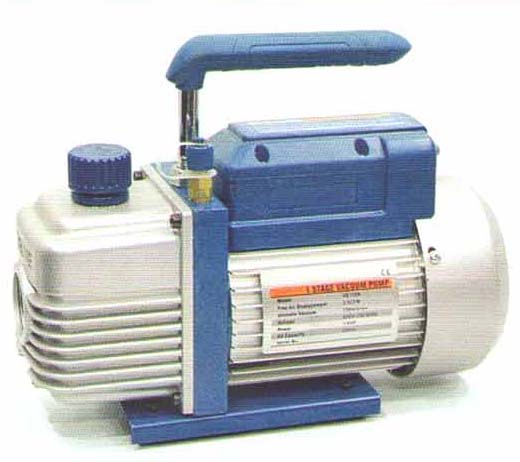

Vacuum Pump 128 Litter – Min. Capacity, 220-240 V 60  Hz

EKE 3530 60 Hz:

ENKAY supplies high quality single and dual stage vacuum pumps for providing the vacuum power which is required for various applications in material testing.

•    Two stage rotary – vane design improves the ultimate vacuum and pump speed and reduces the evacuation time.
•    The integrated pump body design ensures the reliability and easy maintenance
•    Built – in oil pump cycling design forced – lubricates the pump chamber and sliding bearing and ensures its lubrication
     and seal.
•    Anti – Suckback design prevents oil from returning back to the system
•    The intake filter can prevent foreign matter from entering in to the pump chamber and the exhaust fitting separates oil vapor from the exhaust flow
•    Aluminium oil housing , trestle and motor cover from a rigid and light design
•    Thermal protection of the motor makes the pump to run steadily safety

Specifications:
•    Frequency : 60 Hz
•    Flow Rate CFM : 5.0
      L/min : 142
•    Ultimate Partial Pressure : 2 x 10-1 Pa
     Total Pressure : 15 micron
•    Motor (HP) : ½
•    Intake Fitting : ¼ ”  & 3/8” Flare
•    Oil Capacity : 325 ml
•    Dimensions : 340 x 140 x 245 mm
•    Weight (Approx.) : 10.5 kg

Vacuum Gauge 1000 mbar Manometer Φ63 mm

EKE 3550:

EKE 3550, 63 mm diameter , bottom connection, (760 mm Hg) 1000 mbar Vacuum Gauge is used to monitor the instant applied vacuum. The vacuum gauge works well with max. 60°C fluid temperature. The maximum operating pressure must not exceed % 75 of the full scale. The over pressure limit is 40 bar PN x 1.25, optimum < operating range (PO) is between 0.1 x PN and 0.75 x PN and the protection rate is IP41
