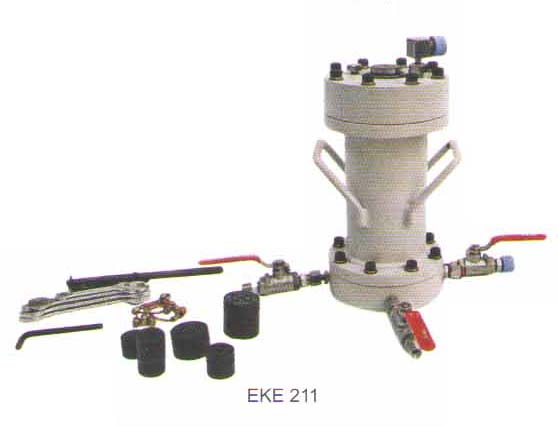

Triaxial Cells
Triaxial Cells
EKE 211 & EKE 2012:
These cells are designed to withstand a lateral pressure of 150 bar (150 kg/cm²). four no-volume change valves are fitted to the base for measurement of pore pressure, top drainage , bottom drainage and for entry/exit of cell pressure. The cell is nickel plated and completely rust-proof, hardened and ground pedestals and top loading pads with suitable centering arrangements for different sample sizes are provided. The lower pedestals are provided with radial grooves. The top loading pad is provided with spherical seating.

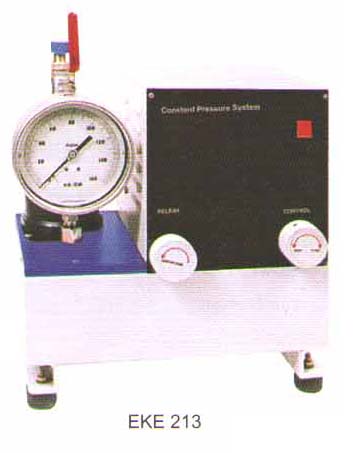

Constant Pressure System For Rock
Constant Pressure System for Rocks
EKE 213:
The apparatus is designed to provide conforming pressure up to 160 Bar to triaxial cells.
The system consists of an oil pump, continuously driven by an electric motor during the entire period of operation to maintain the desired pressure.
The unit provides continuous variable pressure up to 160 Bar, which can be increased or decreased , simply by turning control knob.
Supplied complete with pressure gauge, flow valves and connecting pressure hose.
• Range : 0-160 kg/cm²
• Steps of Pressure : 1 kg/cm²
• Accuracy : ± 1% of Indicated Load
Suitable for operation on 220 V, 50 Hz, Single Phase, AC Supply

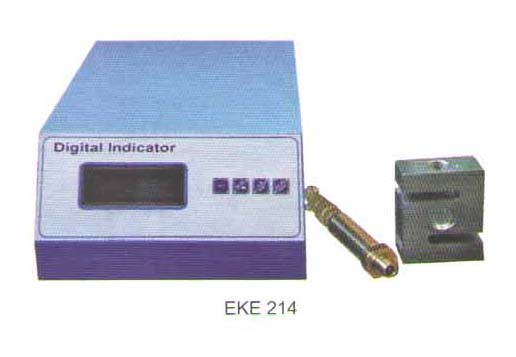

Electronic Kit For Rock Triaxial
Electronic Kit for Rock Triaxial Test
EKE 214:
The double channel electronic outfit is designed for direct reading of load and pore pressure in rock samples. This plug in transducer module system facilities easy installation and quick observation of readings.
The equipment consists of the following replaceable parts :
| EKE 21401 | Load Cell |
| Capacity | 500 kN |
| Resolution | 0.1 kN |
| Load Cell Excitation | 7.5 V DC |
| Sensing Element | Strain Gauges in full bridge Configuration |
| EKE 21402 | Pore Pressure Transducer |
| Capacity | 200 bar |
| Resolution | 0.1 bar |
| Load Cell Excitation | 7.5 V DC |
| Sensing Element | Strain Gauges in full bridge Configuration |
| EKE 21403 | Digital Indicator |
| Mode of Display | Micro controller multi line alphanumeric VFD display for all simultaneous channel (No Need for Channel Selection) |
Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply
