TENSIL TESTING MACHINE (ELECTRO -MACHANICAL TYPE)

Tensile Testing Machine (Electro Mechanical Type) 8010-1

EKE 8010-1:

•    Floor mounted , vertical type, two column construction specially manufactured for various applications
•    Tensile Testing Machines are designed for determining the tensile strength and elongation of a host of materials like ferrous and non
     ferrous materials, Cables & Conductors, Plastic, PVC, Rubber Specimens, Paper, Plywood etc.
•    Our tensile testing machines are also capable for conducting compression, cross breaking and shear tests thus making them more
      versatile with a few additional attachments.
•    Tensile Testing Machines are available in various capacities depending upon the requirement right from 5 kgf to 10 Tonnes ensuring ± 1%  accuracy in test results.
•    We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship.
•    Tensile testing machines are backed up by prompt and effective after service by a team of factory trained technicians.
•    Our machines are available in kgf/kilo Newton’s/ Newton’s as per your specific requirements

-    Capacities (kgf) : 250
-    Least Count : 0.1 gms
-    Transverse Speed (mm/min) : 500 and 100
-    Grip Separation :
      Minimum: 25 mm
      Maximum: 1000 mm
-    Power Requirements : 3 ph 440 V 50 c/s AC
-    Over – Travel Safety Switches : Incorporated
-    Load Elongation Recorder : Optional at Extra Cost

Tensile Testing Machine (Electro Mechanical Type) 8010-2

EKE 8010-2:

•    Floor mounted , vertical type, two column construction specially manufactured for various applications
•    Tensile Testing Machines are designed for determining the tensile strength and elongation of a host of materials like ferrous and non
      ferrous materials, Cables & Conductors, Plastic, PVC, Rubber Specimens, Paper, Plywood etc.
•    Our tensile testing machines are also capable for conducting compression, cross breaking and shear tests thus making them more
     versatile with a few additional attachments.
•    Tensile Testing Machines are available in various capacities depending upon the requirement right from 5 kgf to 10 Tonnes ensuring ±1% accuracy in test results.
•    We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship.
•    Tensile testing machines are backed up by prompt and effective after service by a team of factory trained technicians.
•    Our machines are available in kgf/kilo Newton’s/ Newton’s as per your specific requirements

-    Capacities (kgf) : 500
-    Least Count :0.1 gms
-    Transverse Speed (mm/min) : 100
-    Grip Separation :
      Minimum : 25 mm
      Maximum: 1000 mm
-    Power Requirements : 3 ph 440 V, 50 c/s AC
-    Over – Travel Safety Switches : Incorporated
-    Load Elongation Recorder : Optional at Extra Cost

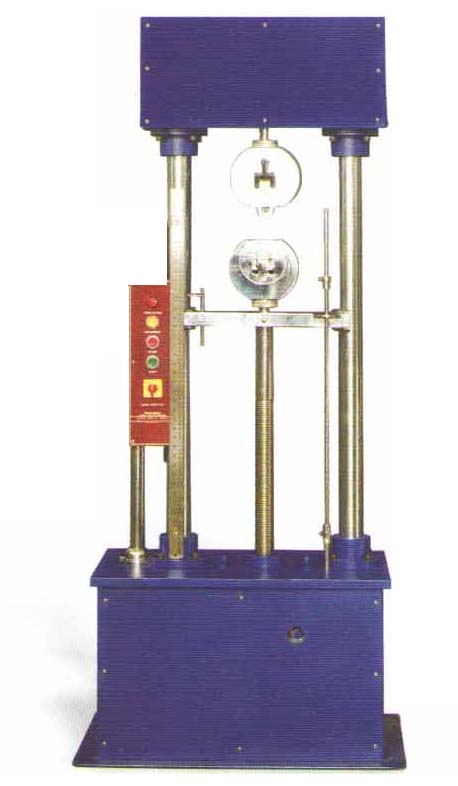

Tensile Testing Machine (Electro Mechanical Type) 8010-3

EKE 8010-3:

•    Floor mounted , vertical type, two column construction specially manufactured for various applications
•    Tensile Testing Machines are designed for determining the tensile strength and elongation of a host of materials like ferrous and non
      ferrous materials, Cables & Conductors, Plastic, PVC, Rubber Specimens, Paper, Plywood etc.
•    Our tensile testing machines are also capable for conducting compression, cross breaking and shear tests thus making them more
      versatile with a few additional attachments.
•    Tensile Testing Machines are available in various capacities depending upon the requirement right from 5 kgf to 10 Tonnes ensuring ±1% accuracy in test results.
•    We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship.
•    Tensile testing machines are backed up by prompt and effective after service by a team of factory trained technicians.
•    Our machines are available in kgf/kilo Newton’s/ Newton’s as per your specific requirements

-    Capacities (kgf) : 1000
-    Least Count : 0.1 kgf
-    Transverse Speed (mm/min) :100
-    Grip Separation :
     Minimum : 25 mm
     Maximum: 750 mm
-    Power Requirements : 3 Ph 440 V, 50 c/s AC
-    Over – Travel Safety Switches : Incorporated
-    Load Elongation Recorder : Optional at extra cost

Tensile Testing Machine (Electro Mechanical Type) 8010-4

EKE 8010-4:

•    Floor mounted , vertical type, two column construction specially manufactured for various applications
•    Tensile Testing Machines are designed for determining the tensile strength and elongation of a host of materials like ferrous and non
      ferrous materials, Cables & Conductors, Plastic, PVC, Rubber Specimens, Paper, Plywood etc.
•    Our tensile testing machines are also capable for conducting compression, cross breaking and shear tests thus making them more
      versatile with a few additional attachments.
•    Tensile Testing Machines are available in various capacities depending upon the requirement right from 5 kgf to 10 Tonnes ensuring ±1%  accuracy in test results.
•    We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship.
•    Tensile testing machines are backed up by prompt and effective after service by a team of factory trained technicians.
•    Our machines are available in kgf/kilo Newton’s/ Newton’s as per your specific requirements

-    Capacities (kgf) : 2500
-    Least Count : 0.1 kgf
-    Transverse Speed (mm/min) :100
-    Grip Separation :
     Minimum: 25 mm
     Maximum: 750 mm
-    Power Requirements : 3 ph 440 V, 50 c/s AC
-    Over – Travel Safety Switches : Incorporated
-    Load Elongation Recorder : optional at extra cost

Tensile Testing Machine (Electro Mechanical Type) 8010-5

EKE 8010-5:

•    Floor mounted , vertical type, two column construction specially manufactured for various applications
•    Tensile Testing Machines are designed for determining the tensile strength and elongation of a host of materials like ferrous and non
        ferrous materials, Cables & Conductors, Plastic, PVC, Rubber Specimens, Paper, Plywood etc.
•    Our tensile testing machines are also capable for conducting compression, cross breaking and shear tests thus making them more
        versatile with a few additional attachments.
•    Tensile Testing Machines are available in various capacities depending upon the requirement right from 5 kgf to 10 Tonnes ensuring ±1% accuracy in test results.
•    We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship.
•    Tensile testing machines are backed up by prompt and effective after service by a team of factory trained technicians.
•    Our machines are available in kgf/kilo Newton’s/ Newton’s as per your specific requirements

-    Capacities (kgf) : 5000
-    Least Count : 0.1 kgf
-    Transverse Speed (mm/min) : 100
-    Grip Separation:
     Minimum: 25 mm
     Maximum: 600 mm
-    Power Requirements : 3 ph 440 V, 50 c/s AC
-    Over – Travel Safety Switches : Incorporated
-    Load Elongation Recorder : Optional at extra cost

Tensile Testing Machine (Electro Mechanical Type) 8010-6

EKE 8010-6:

•    Floor mounted , vertical type, two column construction specially manufactured for various applications
•    Tensile Testing Machines are designed for determining the tensile strength and elongation of a host of materials like ferrous and non
      ferrous materials, Cables & Conductors, Plastic, PVC, Rubber Specimens, Paper, Plywood etc.
•    Our tensile testing machines are also capable for conducting compression, cross breaking and shear tests thus making them more
      versatile with a few additional attachments.
•    Tensile Testing Machines are available in various capacities depending upon the requirement right from 5 kgf to 10 Tonnes ensuring ± 1% accuracy in test results.
•    We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship.
•    Tensile testing machines are backed up by prompt and effective after service by a team of factory trained technicians.
•    Our machines are available in kgf/kilo Newton’s/ Newton’s as per your specific requirements

-    Capacities (kgf) : 10000
-    Least Count : 0.1 kgf
-    Transverse Speed (mm/min) : 25 and 12.5
-    Grip Separation :
     Minimum: 25 mm
     Maximum: 500 mm
-    Power Requirements : 3 ph 440 V, 50 c/s AC
-    Over – Travel Safety Switches : Incorporated
-    Load Elongation Recorder : Optional at extra cost
