De-Aired Water Apparatus
De- Aired Water Apparatus
EKE 097-1:
The equipment has been designed specifically to meet a demand for de – aired water for use with
• Soil Testing Apparatus for reduction or time and labor to consolidate soil samples
• For Simultaneous flushing of many hydraulic piezpmeter lines in dams and earth works to considerably reduce labor and disturbance at the top ends
It is particularly important that only de-aired water is used in the pore pressure measurement system. Any dissolved air in the water leads to error in measurement of pore pressure, particularly at low pressure.
It is a compact self contained unit, will de-air quickly and efficiently , reduce levels of dissolved oxygen, acceptable for geotechnical test methods. Air is removed from the water by a vacuum system which continuously circulates the water in the tank
The unit is supplied with Perspex Water Container which will hold a maximum of 15 ltr. of water. Input and output lines are fixed with 4 mm (approx.) and 6 mm (approx.) ID of plastic tubing respectively.

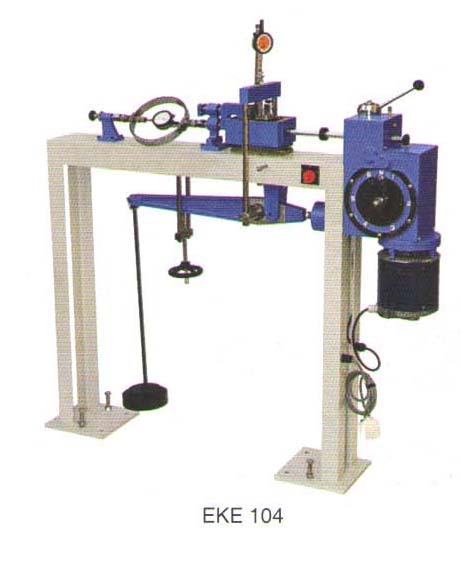

Direct Shear Apparatus, 2 KN
Direct Shear Apparatus, 2 kN
Ref. Standards : IS:11229, 270 (Part 13)
EKE 104:
The Direct shear test is carried out with an apparatus consisting of a square divided into two halves. The specimen, contained in the box , is suitable to a constant normal load while an increasing horizontal force is applied to one of the sections of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has V- strips on which the shear box housing rests. The precalibrated load yoke helps counter balance the loading system. The load yoke with direct and through level system for applying normal load upto 8 Kg/cm² capacity, fixtures for proving ring , brackets fro holding consolidation and strain dial gauges are provided. The lead screw connected to the shear box housing helps application of shear stress.
Type of Shear : Direct/Residual Measurement
Operationc : Motorised
Rae of Strain
(mm/Min) : 1.25, 0.625, 0.25, 0.125, 0.05,0.025, 0.01,0.005,0.002,0.001,0.0004,0.0002
Power Specifications : 220 Volt, 50 Hz,Single Phase AC Supply.
This Assembly comprises of:
EKE 1040101 : Halves of the Shear Box. 2 Set
EKE 1040102 : Plane Gripper Plate 1 Pair
EKE 1040103 : Perforated Gripper Plate - Pair
EKE 1040104 : Porous Stone 1 Pair
EKE 1040105 : Top Loading Pad 1 No
EKE 1040106 : Base Plate -1 No
EKE 10402 : Shear Box
Housing.
To attain normal
Strips of Kg/cm² 1 No
EKE 10405 : Specimen Cutter
EKE 10410 : Surcharge Weights to attain Normal Stress of 3 Kg/cm²
This Set Comprises of following weights:
: 0.05 Kg/cm² 4 Nos
: 0.10 Kg/cm² 1 No
: 0.20 Kg/cm² 1 No
: 0.50 Kg/cm² 3 Nos
: 1.00 Kg/cm² 1No
Essential Accessories:
(to be Ordered Seperately)
EKE 283 Compression – Tension Proving Ring. – 1 No , 50 kN (5,000 kgf)

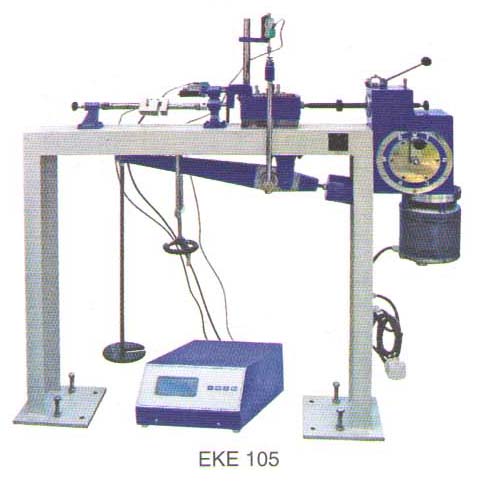

Direct Shear Apparatus, Electronic
Direct Shear Apparatus, Electronic
EKE 105:
Digital Reversible, circular box: 60mm diameter
Special Features :
• Digital readout minimizes operator error.
• Reduce operator time and involvement.
• Direct reading in engineering unit.
• Pre – calibrated before dispatch.
• Plug – in transducer modules system.
• Peak hold facility for load.
Type of Shear: Direct/Residual Measurement
Operation: Motorised
Rae of Strain
(mm/Min) : 1.25,0.625, 0.25, 0.125, 0.05,0.025,0.01, 0.005,0.002,0.001, 0.0004, 0.0002
Power
Specifications : 220 Volt, 50 Hz,Single Phase , AC Supply.
This Assembly comprises of:
EKE 1040101 : Halves of the Shear Box. 2 Set
EKE 1040102 : Plane Gripper Plate 1 Pair
EKE 1040103 : Perforated Gripper Plate - 1 Pair
EKE 1040104 : Porous Stone 1 Pair
EKE 1040105 : Top Loading Pad 1 No
EKE 1040106 : Base Plate -1 No
EKE 10402 : Shear Box
Housing.
To attain normal
Strips of Kg/cm² 1 No
EKE 10405 : Specimen Cutter
EKE 10410 : Surcharge Weights to attain
Normal Stress of 3 Kg/cm²
This Set Comprises of following weights:
: 0.05 Kg/cm² 4 Nos
: 0.10 Kg/cm² 1 No
: 0.20 Kg/cm² 1 No
: 0.50 Kg/cm² 3 Nos
: 1.00 Kg/cm² 1No
EKE 105-1 Direct/Residual Shear Electronic Conversion Kit
This Equipment consists of:
EKE 1050101: 3 Channel Digital Indicator 1Nos.
Mode of digital : The decimal Display point Display is positioned by the channel selector switch.
Power : 220 V+10% mains, 50 Hz, single Phase. AC supply
No. of channel : 3.
Parameter display : By a selector switch.
EKE 1050102 : Load Call
Capacity : 2 kN (200 kgf) Universal Type, TCPR, with 3 meter ling cable without hooks. Max. overload : 110% of the rated capacity. Sensing element : Strain Gauges in full bridge configuration.
EKE 1050103 : Displacement Sensor. 2 Nos.
Range : + 20 mm Displacement sensor with 3 Meter long cable.
Sensing element : LVDT Complete as above.

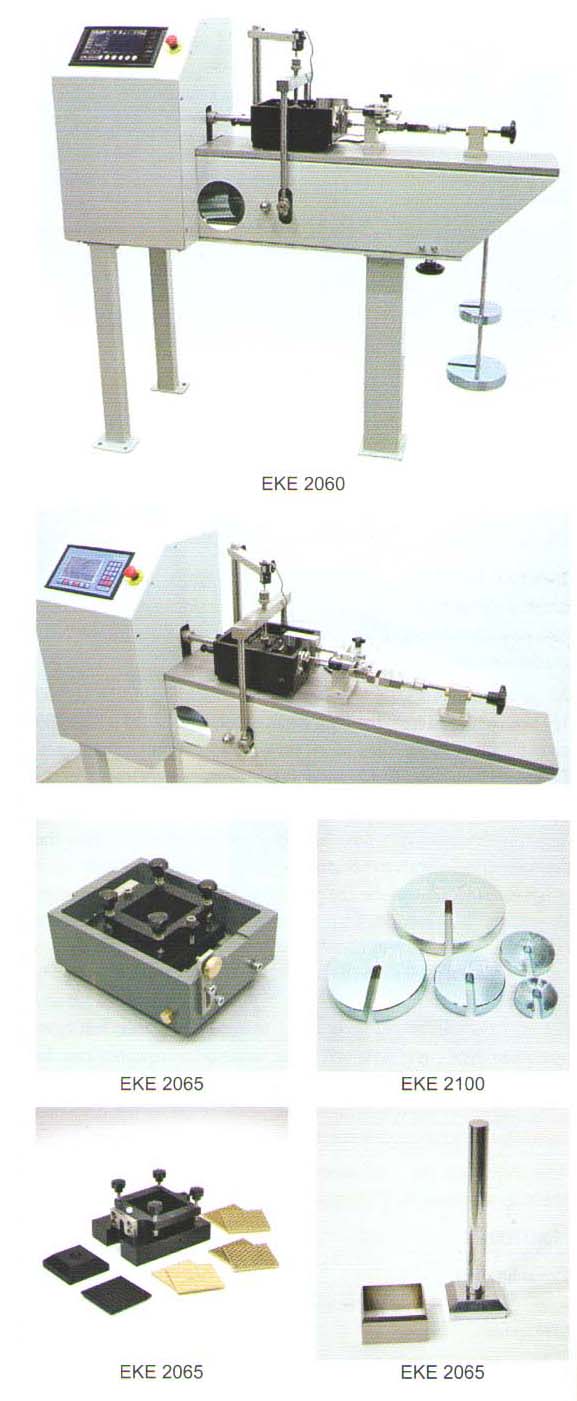

Automatic Direct/ Residual Shear Test Machine
Direct/Residual Shear Fully Automatic Microprocessor Based
Ref. Standard. D3080; BS 1377:7; AASHTO T236, CEN-ISO/TS 17892-10
EKE 2060:
EKE 2060: Automatic Direct/Residual Shear Test Machine, 220-240 V 50-60 Hz
EKE 2065: hear Box Assembly , 60 x 60 mm
EKE 2065/7:Specimen Cutter , 60 x 60 mm
EKE 2065/8: Extrusion Dolly, 60 x 60 mm
EKE 2066: Shear Box Assembly, Φ 60 mm
EKE 2066/7: Specimen Cutter, Φ 60mm
EKE 2066/8: Extrusion Dolly, Φ 60 mm
EKE 2067: Shear Box Assembly , 100 x 100 mm
EKE 2067/7: Specimen Cutter , 100 x 100 mm
EKE 2067/8: Extrusion Dolly, 100 x 100 mm
EKE 2068: Shear Box Assembly, Φ 100 mm
EKE 2068/7: Specimen Cutter, Φ 100mm
EKE 2068/8: Extrusion Dolly, Φ 100 mm
EKE 2069: Shear Box Assembly , Φ2.5 inch
EKE 2069/7: Specimen Cutter, Φ 2.5 inch
EKE 2069/8: Extrusion Dolly, Φ 2.5 inch
EKE 2100: Slotted Weight Set, 50 kg (4x10 kg + 1 x 5 kg + 2 x 2 kg + 1 x 1 kg)
The test covers the determination of consolidated drained shear strength of a soil material in direct shear. EKE 2060 Automatic Direct/Residual Shear Test Machine is motorized and floor mounted. Supplied with carriage assembly load hanger and integral 9:1, 10:1 and 11:1 lever loading device as standard. The beam loading device which is used to amplify the vertical load on the shear box assembly can receive up to 5 kN (5000 N).
The machine accepts 60 mm square , 100 mm dia. round, 100 mm dia. round and 2.5 inc. dia. round shear box assembles. All shear box assembles are designed to contain water that surrounds the specimen. The assembles consists of a shear box with a rigid wall square or round hole complete with a vertical loading pad grooved back face a grooved retaining plate, 2 pcs porous plates, 2 pcs plane grids and 2 pcs. Perforated grids.
The shear machine is driven by high resolution servomotor and gear box assembly. Speed range is fully stepless variable over the range 0.00001 to 9.99999 mm/min for both direction (forward and reverse). After test the reverse speed is 10 mm/min) . 5 kN load cell is used for load measurement . 10 x 0.001 mm sensitivity linear potentiometric transducers are used for vertical and horizontal displacement measurements respectively. Displacement limits are controlled by limit switch.
Shear Box Assembly , Slotted Weight Set and other optional accessories includ

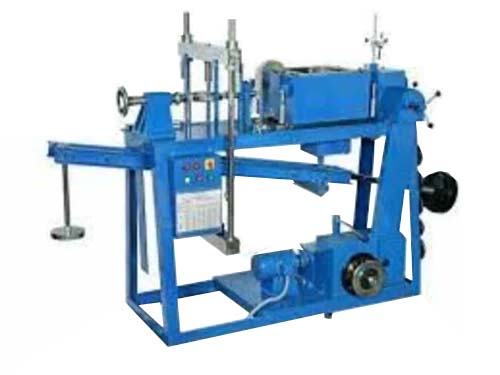

Large Direct Shear Apparatus , Motorised, 50kN
Large Direct Shear Apparatus , Motorised , 50 kN
Ref. No IS 2720 (Part 39-Section 1) 11593
EKE 106:
For testing sands, gravel, gravelly clays and clay gravels for rolled fill embankments.
- Operation : Motorised
- Rates of Strain : 72 speeds ranging from 0.0014 to 10.16 mm/min
- Specimen Size : 30 x 30 x 15 cm
- Change Gears : 12
- Shear Load Capacity : 50 kN
- Vertical Stress : 50 kn /m²
- Suitable for operation on 415 V, 50 Hz, Three Phase, AC Supply
The equipment (EKE 106) consist of the following replaceable parts:
EKE 10601 : Shear Box Assembly – 1 No
This assembly consists of :
EKE 1060101 Plane Gripper Plate – 2 Nos
EKE 1060102 : Perforated Gripper Plate – 2 Nos
EKE 1060103 : Perforated Spacer Plate -2 Nod
EKE 1060104 : Base Plate – 1No
EKE 1060105 : Top Loading Pad – 1No
EKE 10607 : Shear Box Housing with two Ball Roller Strips -1 No
EKE 10605 : Surcharge weight 9 Nos, each to give 50 kN/m² (0.5 kg/cm²) and 2 Nos, each to give 25
kN/m² (0.25 kg/cm²) – 1 Set
EKE 10610 : Magnetic Stand for Shear Strain Dial Gauge – 1 No
EKE 073 : Dial Gauge 50 mm travel, 0.01 mm least count – 2 Nos
EKE 274 : Proving Ring Capacity 50 kN Compression – 1 No

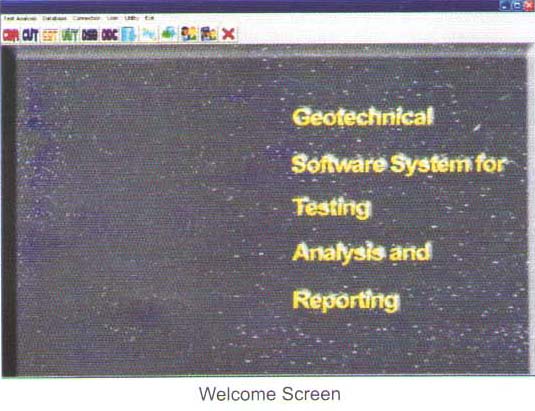

Geotechnical Software For Testing, Analysis & Reporting
Geotechnical Software for Testing , Analysis and Reporting
EKE 10124:
The analysis and reporting of following Tests can be performed
• Unconsolidated Undrained Triaxial Test
• Consolidated Drained Test
• Direct/Residual Shear Test
• CBR Test
• One Dimension Consolidation Test
These package of software’s are supplied as required by the purchase and are accessed by an activation/license supplied by ENKAY, allowing the customer to build up as a suite of software on an “required basis depending upon the need.
Common Features for all the tests:
• The Software allows selection of British / Indian Standards for analysis as required.
• Tests can be performed in Sl, Imperial or metric Units
• Clear and easy to use. Tests information is presented on menu driven screen.
• Each package guides through the test procedure in a very user friendly way.
• A database is set up to store and manage completed analysis records. Currently Ms-Access is offered as default database. For other database system like SOL etc. such third party license is required to be obtained by the use.
• The software directly reads the data format for analysis from DAQ
• An option to enter the data manually and save it in a format understood by “Software” makes the system so flexible for those , who have only the experimental setup without the automatic Data Acquisition Data logging system.
• Extensive search functions are available based on Data Analysis, Analysis done by different user account, or search based on duration etc. For easy retrieval of old data.
• The default reports are generated automatically , in crystal reports and be printed directly. The reports can also be exported to Word , Excel or Pdf formats and the usage is governed by the party license that are available with the users.
• Customizable Report Header/Footer
• The inbuilt include Master Unit Converter , Unit Conversion Calculator, besides the normal and Scientific system calculators.
• Data base back up and restore facilities are available
• Complete User activity logging is available
Special Features & Graphs for Direct Shear Analysis Software
• Sample Information
• Test Information
• Consolidation stage
• Shearing stage
• Stress path parameters
• Horizontal Displacement VS Vertical Displacement graph
• Height Vs Sq. root of time graph
• Shear stress Vs Horizontal Displacement
• Horizontal Displacement Vs Vertical Displacement (All)
• Shear Stress Vs Vertical Displacement (All)

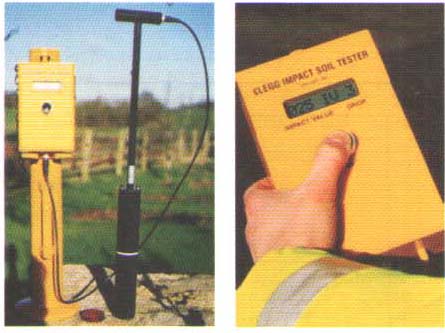

Clegg Impact Tester
Clegg Impact Tester
EKE 0773:
The Clegg Impact Soil Tester provides a means for measuring and controlling soil strength and consolidation levels during trench reinstatement. It is also used to confirm compaction of over wide areas of ground, identifying poorly compacted areas and ineffective rolling of materials.
The Tester consists of a 4.5 kg compaction hammer operating within a vertical guide tube. When the hammer is released from a fixed height it falls through the tube and strikes the surface under test, declaring at a rate determined by the stiffness of the material within the region of impact. A precision accelerometer mounted on the hammers feed its output to a hand held digital readout unit which registers the declaration in units of Impact Value (IV) over a typical measuring range of 1 to 60 IV. The IV indicates soil strength and shows good correlation with CBR test results.
The unit is supplied in a transit case with calibration certificate and operating instructions.

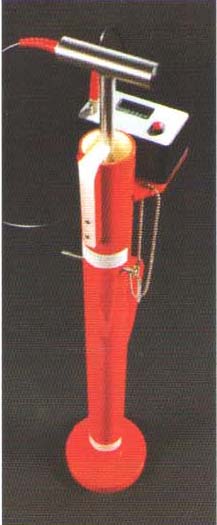

Geo – Impact Tester
Geo – Impact Tester
EKE 0774:
ENKAY also offers an alternative to the Clegg Impact Tester for quality control. This works the same the principal of a known mass falling a known distance. The testers reaction is recorded on a digital readout on a scale of 0-100 Impact Values, which correlate exactly to Clegg Impact Values or CIV
The Units is supplied – with a year long calibration and a calibration a ‘test ring’ for daily operational checks. All contained in a strong lightweight transit case.

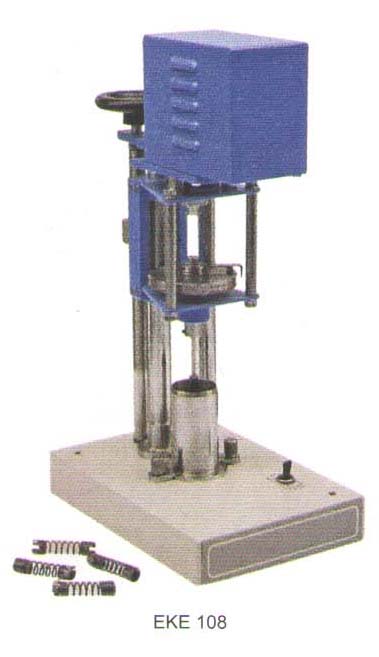

Laboratory Vans Shear Apparatus, Motorised
Laboratory Vans Shear Apparatus, Motorized
Ref. Standard IS:2720 (Part 30)
EKE 108:
Consists of a torque head, adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen, rotation of the vane is by means of an electric motor which operates a worm gear arrangement turning the upper end of a calibrated torsion spring, The vane shaft is attached through the hollow upper shaft to a reset table pointer which indicates the angle of torque on a dial graduated in degrees, The dial reading multiplied by spring factor gives the torque,
Rate of rotation : 1/60 rpm operates on 220, 50 Hz, single phase, AC supply, Supplied complete with:
EKE 10801 Container, One
EKE 10801 Set of 4 Springs, (One each of capacity 2 kg-cm,
4 kg-cm, 6 kg-cm and 8 kg-cm)
