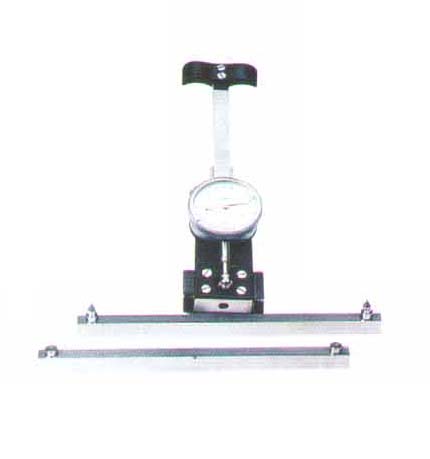

    Strain Measurement - 100mm

    Strain Measurement - 100 mm
    Demountable Mechanical Strain Gauge , 100 mm

    EKE 369:

    •    Suitable for use on a loading member under adverse conditions
    •    Demountable measuring head
    •    Portable
    •    High accuracy
    •    Reference Test Bar incorporated

    These are designed for gauge lengths of 100 mm of the reference pins

    Supplied complete with two standard bars and a dial gauge 0.002 mm x 10 mm which is fixed on the meter.

    Demountable Mechanical Strain Gauge , 100 mm

    Strain Measurement - 150mm

    Strain Measurement - 150 mm
    Demountable Mechanical Strain Gauge , 150 mm

    EKE 370:

    •    Suitable for use on a loading member under adverse conditions
    •    Demountable measuring head
    •    Portable
    •    High accuracy
    •    Reference Test Bar incorporated

    These are designed for gauge lengths of 150 mm of the reference pins

    Supplied complete with two standard bars and a dial gauge 0.002 mm x 10 mm which is fixed on the meter.

    Demountable Mechanical Strain Gauge , 150 mm

    Strain Measurement - 200 Mm

    Strain Measurement - 200 mm
    Demountable Mechanical Strain Gauge , 200 mm

    EKE 371:

    •    Suitable for use on a loading member under adverse conditions
    •    Demountable measuring head
    •    Portable
    •    High accuracy
    •    Reference Test Bar incorporated

    These are designed for gauge lengths of 200 mm of the reference pins

    Supplied complete with two standard bars and a dial gauge 0.002 mm x 10 mm which is fixed on the meter.

    Demountable Mechanical Strain Gauge , 200 mm

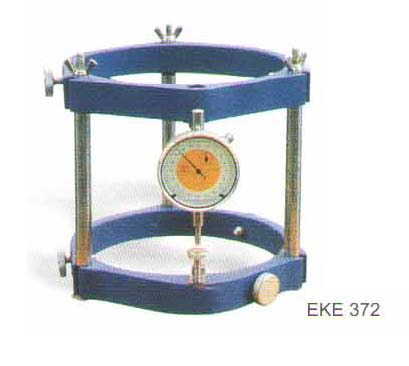

    Longitudinal Compressometer

    Longitudinal  Compressometer
    EKE 372:
    This apparatus is used for determination of the strain and deformation characteristics of cement concrete cylindrical specimens of 150 mm dia x 300 mm length.

    The Compressometer consists of two frames for clamping to the specimen by means of five tightening screws with hardened and tapered ends. Two spacers hold the two frames in position. An adjustable pivot rod rests on pivot screws. A spring enables the pivot the rod to remain in contact with pivot screws. The ball chain is for adjusting the tensions of the spring. A dial gauge , fixed to a bracket , fitted to the top frame, is used for taking deformation measurement . supplied complete with a dial gauge 0.002 mm x 10 mm, in a wooden carrying case.

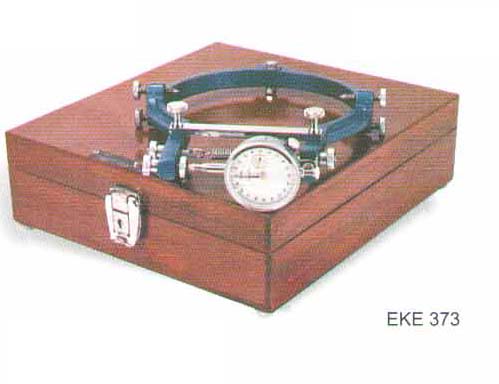

    Lateral Extensometer

    Lateral Extensometer

    EKE 373:

     This is for the determination of Lateral Extension of 150 mm dia. x 300 mm high cement concrete cylinders while testing them in compression.
    The Extensometer consists of two movable frames pivoted at one end. A dial gauge measures he lateral extension , and a removable spacer strips is for the initial setting of the dial gauge. Mounting of  Extensometer on the specimen is with the help of screws.
    Supplied complete , with a dial gauge 0.002 mm x 10 mm in a wooden case.
