EKE 0450:

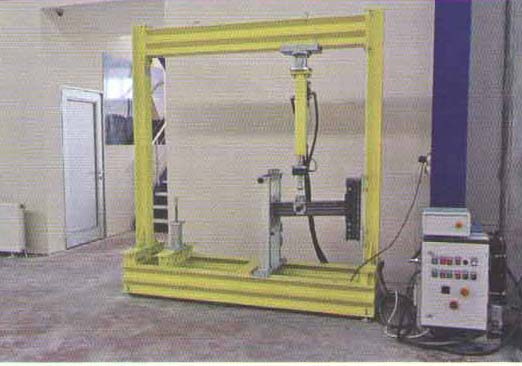

ENKAY Material Testing Equipment offers a wide range of products and services to support all aspects of mechanical and structural engineering. For other applications, additional consultancy service is available. Our experienced engineers can make your job easier. ENKAY can make custom design systems as it seen on the picture.
Static testing machines below have double acting pistons with force capacities of 1000 kN, 500 kN and 100 kN. Static testing actuators can be controlled by a single hydraulic power unit. Different than the static testing machines ENKAY manufacturers 10 Hz. Cycle testing capable 50 kN dynamic testing machine for dynamic and fatigue behavior of the connections at steel storage racks systems.
Electrical parts as indicators system management button and controller is involved in the power pack. Bladder type accumulators are supplied with the pack in order to compensate pressure drops while actuator is operating and y pressure losses between the HPU and test station, in order to smooth pump ripples. Oil Level, Oil Temperature, Filters condition and Motor Temperature are continuously checked by controller and system has necessary interlocks for fault conditions. Factory – test pressure relief valve prevents excessive increase in pressure. Compact designed power pack saves valuable floor space in your lab. Installed isolation manifold lets the hydraulic power pack running multiple test stations, preventing over pressurization, discharging system pressure separately and power isolation of the stations.
These systems are for testing different type of storage – Shelves as Bending Tests on Beam End Connectors, Looseness Test on Beam End Connectors, Shear Tests on Beam End Connectors, Stub Colum Compression Tests, Compressive Tests on Uprights , Bending Tests on Upright Position and Bend Tests on Beams.
Steel rack testing systems are controlled by a computer with software. The software is flexible and user – friendly windows based application software for static and dynamic testing. In the software user can also create custom test sequences. Synchronized 100 Hz data transfer from feedback signals supplies detailed recording of running tests. This rate is flexible up to 4 kHz if the application is applicable. Graphical and numeric monitoring is displayed real time in the use interface. The software also includes an easy calibration check facility. The machine gives some constant load values and waits there for easy check mechanism. Furthermore software is also delivered to customer freely, where data analyzing and reporting operations will be handled.
Technical Specifications:
• Test Type :
Bending Tests on Beam End Connectors (EN 15512-2009 sec A 2.4)
Looseness Test on Beam End Connectors (EN 15512-2009 sec 5.3.2)
Shear Tests on Beam End Connectors (EN 15512-2009 sec 5.3.2)
• Piston Capacity : 2000 kN (Double Acting)
• Piston Stroke : 450 mm
• Horizontal Test Daylights : 2000 mm
• Vertical Test Daylights : from 100 mm up to 650 mm
