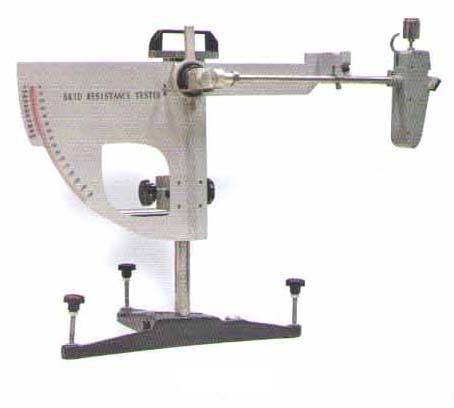

Skid Resistance Tester-
Skid Resistance Tester-
Ref. Standard BS 812-114
EKE 580:
The apparatus is used to measure anti skid performance of high grade roads and airport pavement both in the lab ad in –soil.
The apparatus is consists of a spring loaded rubber slider mounted on a pendulum arm. The arm can be adjusted vertically from a rigid support column. The base has three adjustable feet so that swing of the pendulum during the test moves through a truly circular path while operated directly on a road surface.

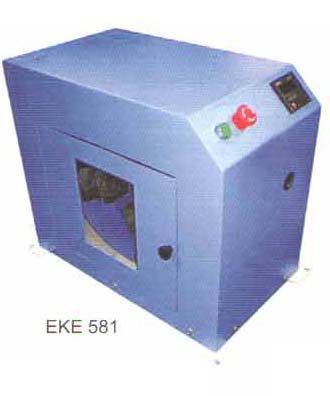

Film Stripping Device
Film Stripping Device
EKE 581:
Film Stripping Device is used to measure the resistance of bituminous mixtures to shipping of asphalt from aggregate particles. It is generally used to evaluate mineral aggregates and to judge the adhesion of the bituminous materials.
The device consists of a disk on which 4 bottles are mounted. The disc rotates at speed of approx. 100 rpm. The sample, usually the aggregate fraction which passes a 9.5 mm sieve but is retained on a No. 8 sieve, is placed in the bottle & agitated for 15 minutes. The percentage of aggregate stripped can be visually estimated. The device is provided with a per sent counter.
Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply
Asphalt Mixer Theoretical Density of asphalt mixer by vacuum method for applications such as asphalt mixer design , road condition investigation, calculation of porosity and compactness in the road construction quality management
The equipment has a main body fitted with digital vacuum indicator, two vacuum containers , vibratory table, control panel. A vacuum pump is also supplied.
The vibratory table operates on manual and automatic mode to release the entrapped air from the asphalt sample.
Suitable for operation on 220 V, 50 Hz, 1 Phase, AC Supply
Technical Specifications:
• Vacuum Range : 0-700 mm of high
• Vibration loading capacity : 10 kg
• No of Sample : Two

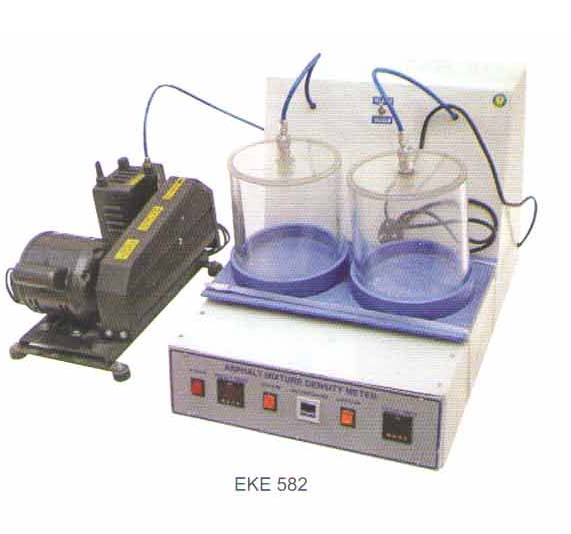

Asphalt Mixer Theoretical Density Meter
Asphalt Mixer Theoretical Density Meter
Ref. Standard ASTM D2041-03
EKE 582:
This machine is used for determination of theoretical density of asphalt mixer by vacuum method for application such as asphalt mixer design, road condition investigation , calculation of porosity and compactness in the road construction quality management.
The equipment has a main body fitted with digital vacuum indicator , two vacuum containers, vibratory table, control panel. A vacuum pump is also supplied
The vibratory table operates on manual and automatic mode to release the entrapped air from the asphalt sample
Suitable for operation on 220 V, 50 Hz, 1 Phase , AC Supply
