Soil

    SHEAR STRENGTH

    Book Now Your Machine

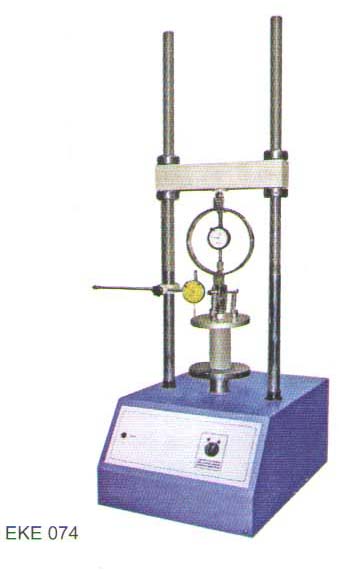

    Unconfined Compression Tester, Proving Ring Type

    Unconfined Compression Tester, Proving Ring Type
    Ref. Standard  : IS: 2720 (Part 10), AASHTO T208

    EKE 074:

    Determination of soil shear strength is essential for designing the foundation of structures, soil and soil retaining structures, soil slopes etc. Shear strength of soil depends on various factors and insitu soil conditions. Therefore, when laboratory tests in soil are performed to evaluate shear strength of soil, the insitu soil conditions and other factors should be simulated for obtaining meaningful results. For example, the unconsolidated undrained  test on soil will yield the undrained strength, which can be used for finding the immediate stability of an excavation , whereas a consolidated undrained test with measurement of pore pressure can be used to evaluate the effective strength parameters of soil for designing the long term stability of an earth fill dam.

    It is well known that the engineering behavior of soil depends on the effective stress and not the total stress. The effective stress can be calculated by measuring the total stress and subtracting the pore water pressure from it.

    To cater to the needs of shear strength determination of soil, a range of equipment is offered , as listed in this section.

    The equipment consists one each of :
    EKE 062: Load Frame, Motorized 3 Speeds, 50 kN (5000 kgf)
    EKE 07401: Plain Platen, with Adapter and Steel Ball

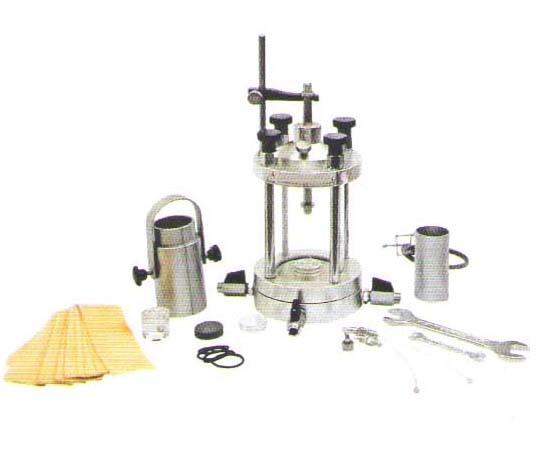

    Triaxial Cell, Stationary Bushing

    Triaxial Cell, Stationary Bushing
    Ref. Standard  : IS: 2720 (Part XII)

    EKE 075-38:

    For testing specimens of size 38 mm dia. x 76 mm dia. long and 50 mm dia. x 100 mm long. Triaxial cell consists of Perspex chamber with anvil and loading plunger. The cell is easily split by releasing four type rods. It is leak proof upto 10 bar (10kg/cm²) fluid pressure. An oil plug and an air vent are provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell fitted with four sleeve packed valves of no volume change type of base.

    The equipment consists of :-
    EKE 07501:
    Top Loading pad, Perspex, 38 mm dia. – 1 No
    EKE 07502: Plain Perspex disc 38 mm dia. x 6 mm thick – 1 Pair
    EKE 07503: Porous stone 28 mm dia. x 8 mm thick – 1 Pair
    EKE 07504: Sheath Stretcher for 38 mm dia. specimen – 1 No
    EKE 07505: Two way split former for 38 mm dia. specimen – 1 No
    EKE 07506: Rubber Sheath for 38 mm dia. specimen – 12 Nos
    EKE 07508: Drainage Tube for 38 mm – 4 Nos
    EKE 07509: ‘O’ Rings for 38 mm dia. specimen – 8 Nos
    EKE 03105: Split Mould , 38 mm dia. – 1 No
    EKE 07540: Top Loading Pad 38 mm (Plain) – 1 No

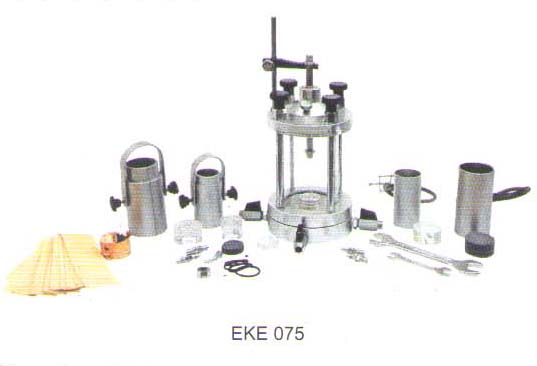

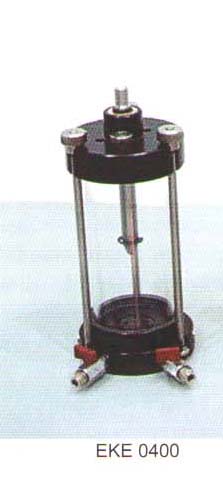

    Triaxial Cell, 38 Mm And 50 Mm Dia

    Triaxial Cell, 38 mm and 50 mm dia.
    EKE 075:

    For testing specimens of size 38 mm dia. x 76 mm long and 50 mm dia. x 100 mm long. TRiaxial cell consists of Perspex chamber with anvil and loading plunger . The cell is easily split by releasing four tie rods. It is leak proof upto 10 bar (10 kf/cm²) fluid pressure.

    An oil plug an air vent are provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type of base.

    The equipment consists of:-
    EKE 07501:
    Top Loading pad, Perspex, 38 mm dia. – 1 No
    EKE 07502: Plain Perspex disc 38 mm dia. x 6 mm thick – 1 Pair
    EKE 07503: Porous stone 28 mm dia. x 8 mm thick – 1 Pair
    EKE 07504: Sheath Stretcher for 38 mm dia. specimen – 1 No
    EKE 07505: Sand Former for 38 mm dia.
    EKE 07506: Rubber Sheath for 38 mm dia. specimen – 12 Nos
    EKE 07508: Drainage Tube for 38 mm – 4 Nos
    EKE 07509: ‘O’ Rings for 38 mm dia. specimen – 8 Nos
    EKE 07510: Brass Pedestal 38 mm dia. specimen – 1 No
    EKE 07521: Top Loading Pad, Perspex , 50 mm dia. – 1 No
    EKE 07522: Plain Perspex disc. 50 mm dia. x 6 mm thick – 1 Pair
    EKE 07523: Porous Stone 50 mm dia. x 6 mm thick – 1 Pair
    EKE 07524: Sheath Stretcher for 50 mm dia. specimen – 1 No
    EKE 07525: Sand Former for 50 mm dia. – 1 No
    EKE 07526: Rubber Sheath for 50 mm dia. – 12 Nos
    EKE 07528: Drainage Tube for 50 mm – 4 Nos
    EKE 07529: ‘O’ Rings for 50 mm dia. specimen – 8 Nos
    EKE 07530: Brass Pedestal 38 mm dia– 1 No
    EKE 03105: Split Mould , 38 mm dia. 76 mm long – 1 No
    EKE 03301: Split Mould , 50 mm dia. x 100 mm – 1 No
    EKE 07540 :Top Loading Pad 38 mm (Plain) – 1 No
    EKE 07541: Top Loading Pad 50 mm (Plain) – 1 No

    Universal Triaxial Cell, Stationery Bushing 10 Bar

    Universal Triaxial Cell, Stationary Bushing 10 Bar

    EKE 076:

    For testing specimens of 38, 75 and 100 mm dia. It consists of  a Perspex chamber with anvil and loading plunger. Leak proof upto 10 bar (10kg/cm²). Fitted with four sleeve packed valves to the base.

    The equipment consists of :-
    EKE 07510: Brass Pedestal 38 mm dia. specimen – 1 No
    EKE 07530: Brass Pedestal 38 mm dia. – 1 No
    EKE 07567: Brass Pedestal 75 mm dia. – 1 No
    EKE 07550: Brass Pedestal 100 mm dia. – 1 No
    EKE 07501: Perspex Loading Pad 38 mm dia. - 1 No
    EKE 07521: Perspex Loading Pad 50 mm dia. - 1 No
    EKE 07568: Perspex Loading Pad 75 mm dia. - 1 No
    EKE 07569: Perspex Loading Pad 100 mm dia. - 1 No
    EKE 07502: Plain Disc. 38 mm dia. – 1 Pair
    EKE 07522: Plain Disc. 50 mm dia. – 1 Pair
    EKE 07553: Plain Disc. 75 mm dia. – 1 Pair
    EKE 07554: Plain Disc. 100 mm dia. – 1 Pair
    EKE 07503: Porous stone 38 mm dia. – 1 Pair
    EKE 07523: Porous stone 50 mm dia. – 1 Pair
    EKE 07555: Porous stone 75 mm dia. – 1 Pair
    EKE 07556: Porous stone 38 mm dia. – 1 Pair
    EKE 07504 :Sheath Stretcher for 38 mm dia. – 1 No
    EKE 07524: Sheath Stretcher for 50 mm dia. – 1 No
    EKE 07557: Sheath Stretcher for 75 mm dia. – 1 No
    EKE 07558: Sheath Stretcher for 100 mm dia. – 1 No
    EKE 07505: Sand Former for 38 mm dia – 1 No
    EKE 07525: Sand Former for 50 mm dia. – 1 No
    EKE 07559: Sand Former for 75 mm dia. – 1 No
    EKE 07525: Sand Former for 100 mm dia. – 1 No
    EKE 07506: Rubber Sheath for 38 mm – 12 Nos
    EKE 07526: Rubber Sheath for 50 mm dia. – 12 Nos
    EKE 07561: Rubber Sheath for 75 mm dia. – 12 Nos
    EKE 07562: Rubber Sheath for 50 mm dia. – 12 Nos
    EKE 07528: Drainage Tube for 50 mm – 6 Nos
    EKE 07537: Drainage Tube for 100 mm – 6 Nos
    EKE 07509: ‘O’ Rings for 38 mm dia. specimen – 8 Nos
    EKE 07529: ‘O’ Rings for 50 mm dia. specimen – 8 Nos
    EKE 07563: ‘O’ Rings for 75 mm dia. specimen – 8 Nos
    EKE 07564: ‘O’ Rings for 100 mm dia. specimen – 8 Nos
    EKE 07540: Top Loading Pad 38 mm (Plain) – 1 No
    EKE 07541: Top Loading Pad 50 mm (Plain) – 1 No
    EKE 07542: Top Loading Pad 75 mm (Plain) – 1 No
    EKE 07543: Top Loading Pad 100 mm (Plain) – 1 No

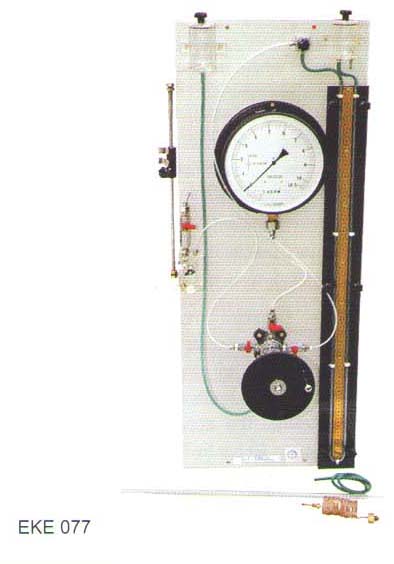

    Pore Pressure Apparatus

    Pore Pressure Apparatus

    EKE 077:

    The pore pressure apparatus manufactured by ENKAY is designed according to the principles outlined in the book “The Measurement of Soil properties in the Triaxial Test” by A.W Bishop and D.J Henket. This pore pressure measuring apparatus consists of a screw pressure pump, null indicator in Perspex , pressure gauge , mercury manometer, volume change burette and the necessary connecting tubes and valves. It is used for measuring pore water pressure and pore air pressure in soils.

    It has many features which simplicity the operation. The null indicator is made from a transparent Perspex block. It is simplified U- Tube Null indicator, in which water can bypass mercury if null indicator is tilted; thus de-airing process by circulation of water is facilitated. All features enable a visual check to be made during the de – airing operation of apparatus. A mercury manometer and a pressure gauge of Bourdon Tube type are provided on the panel on which the whole equipment is mounted. Very small positive or negative pressure are observed on the manometer. A 50 ml burette is clamped to a sliding bracket on one side of the panel. It is used for measuring the volume change in the specimen when subjected to confining pressure in the triaxial cell. A small amount of Mercury is supplied along with the apparatus.

    The equipment consists one each of :-
    EKE 07701: Pressure Gauge Bourdon Tube Type , Graduation : - 1.0 to + 10 bar in 0.1 bar Divisions ( or -1 to + 20 kg/cm²) Dia. : 200 mm

    EKE 07801: Pressure Gauge Bourdon Tube Type , Graduation : - 1.0 to + 20 bar in 0.1 bar Divisions ( or -1 to + 20 kg/cm²) Dia. : 200 mm

    EKE 07702: Manometer Glass U-Tube , measures low positive and negative pore pressure and helps to check zero error of pressure gauge . It is provided with a mercury trap.
    EKE 07703: Null indicator Perspex with mercury trap and a cursor to indicate the mercury level
    EKE 07704: Burette , 50 ml for measurement of volume change in the soil specimen
    EKE 07705: Pressure pump fitted with four Ball Valves
    EKE 07706: Copper Coil
    EKE 07707: Water Reservoir

    All the above parts are fixed on a panel suitable for mounting on the wall.

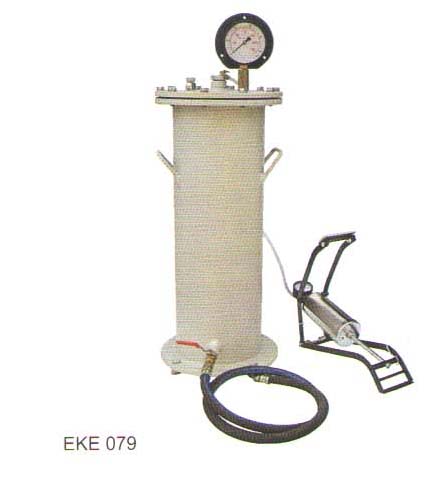

    Lateral Pressure Assembly

    Lateral Pressure Assembly

    EKE 079:

    Lateral Pressure Assembly is used to apply constant confining pressure in  Triaxial cell. Water is filled in the pressure tank and pressure is generated by supplying air though a loot pump. Unit is made ready by  raising the pressure in the chamber to desired level.
    It consists the following:-
    EKE 07901: Pressure Chamber fitted with valves & Pressure gauge
    EKE 07910: Foot Pump
    EKE 07917: Pressure Hose


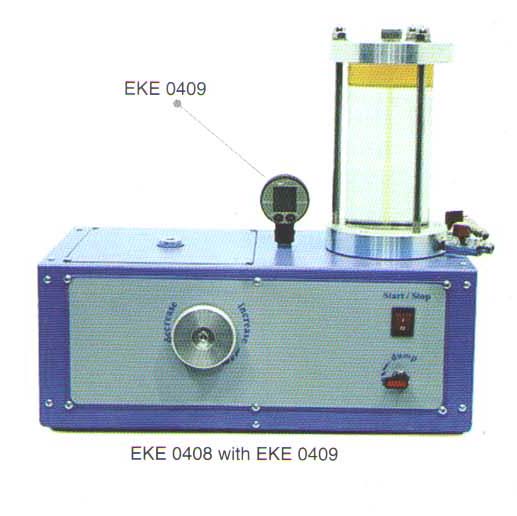

    Constant Pressure System Oil Water Type

    Constant Pressure System Oil Water Type  With One Cell

    EKE 081-1:

    •    Use of Mercury is eliminated
    •    Maintains Constant Pressure Continuously
    •    Pressure Capacity , 10 Bar (10kg/cm²)
    •    Also suitable for Mobile Laboratories

    Oil Water Constant Pressure System is an extremely versatile apparatus which can be used for wide range of applications. This system provides an effective alternative to Mercury and Water Constant Pressure System especially where the laboratory head room is insufficient. The apparatus is designed to provide confining pressure upto 10 bar to Triaxial Cells however for safety it has been factory – locked at a max Pressure of 12kg/cm²

    The system consists of an oil pump , driven by an electric motor during the entire period of operation to maintain the desired pressure

    The unit provides variable pressure upto 16 bar which can be increased or decreased simply by turning a control knob. A transparent oil water interchange vessel is provided to transmit water pressure to the test apparatus.

    Range : 10kg/cm²
    Resolution : 0.1 kg/cm²
    Accuracy : ± 1% of the indicated pressure

    Supplied complete with Pressure Gauge , Flow Valves, connecting Pressure Hose. Suitable for operation on 220 V, 50 Hz, Single Phase.

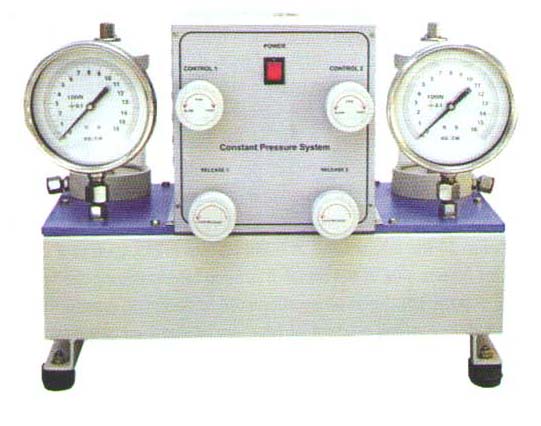

    Constant Pressure System Oil Water With Two Cell

    Constant Pressure System Oil Water Type  With Two Cell

    EKE 081-1-2:

    •    Use of Mercury is eliminated
    •    Maintains Constant Pressure Continuously
    •    Pressure Capacity , 10 Bar (10kg/cm²)
    •    Also suitable for Mobile Laboratories

    Oil Water Constant Pressure System is an extremely versatile apparatus which can be used for wide range of applications. This system provides an effective alternative to Mercury and Water Constant Pressure System especially where the laboratory head room is insufficient. The apparatus is designed to provide confining pressure upto 10 bar to Triaxial Cells however for safety it has been factory – locked at a max Pressure of 12kg/cm²

    The system consists of an oil pump , driven by an electric motor during the entire period of operation to maintain the desired pressure

    The unit provides variable pressure upto 16 bar which can be increased or decreased simply by turning a control knob. A transparent oil water interchange vessel is provided to transmit water pressure to the test apparatus.

    Range : 10kg/cm²
    Resolution : 0.1 kg/cm²
    Accuracy : ± 1% of the indicated pressure

    Supplied complete with Pressure Gauge , Flow Valves, connecting Pressure Hose. Suitable for operation on 220 V, 50 Hz, Single Phase.  AC Supply

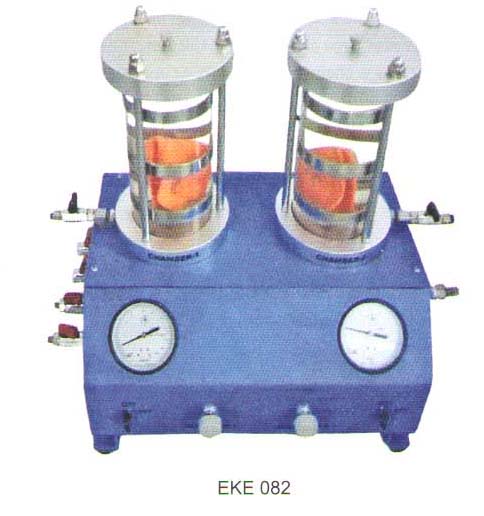

    Constant Pressure System Air Water Type

    Constant Pressure System Air Water Type

    EKE 082:

    The Air Water Constant Pressure System is meant for maintaining constant lateral pressure on triaxial test specimens throughout the test periods regardless of the volume changes occurring in the cell due to expansion of specimens under high pressures, leakage , entry of loading plunger into the triaxial cell, distortion of the specimen under load, consolidation etc. the equipment is provided with two air water interface chambers with individual regulators to control the outlet pressure at desired pressure levels.

    Constant pressure is maintained in the system by supplying air pressure into the cell with the help of a pressure regulator. The apparatus is designed to provide confining pressure upto 10 bar and is a two cell model.

    Range : 0 to 10 bar ( 0 to 10 kg/cm²)
    Resolution : 0.05 kg/cm²
    Accuracy : ± 1% of the indicated pressure
    Suitable for operation 220 volt, 50 Hz, Single Phase, AC Supply

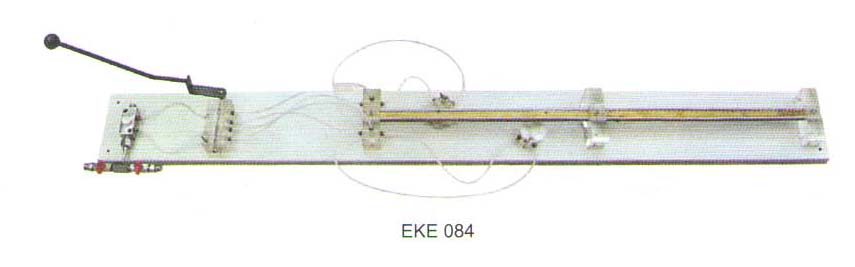

    Sensitive Volume Change Gauge

    Sensitive Volume Change Gauge

    EKE 084:

    This Volume Change Gauge work on the principal of reversing the direction of flow when the limit of the volume change scale is reached. The number of cycles with the volume of fluid handheld in each cycle provide the total volume change, whereas the sensitivity is governed by the dia. of the polythene tube used. Sensitivity of 03003 ml/mm with 6 ml volume of fluid per cycle has been realized by this sensitivity volume change gauge.

    The apparatus consists of a volume measuring polythene tube running along both sides of a scales and connected at both ends to two mercury traps.

    These traps are connected to flow reversal valves through a manifold. The length of the polythene tube is enough to measure 6 ml volume of fluid per cycle. A small pallet of mercury is introduced in the circuit to be used as a cursor, and the movement of pallet is measured

    The unit is tested to a pressure of 20 bar (20 kg/cm²) and is designed for wall mounting.

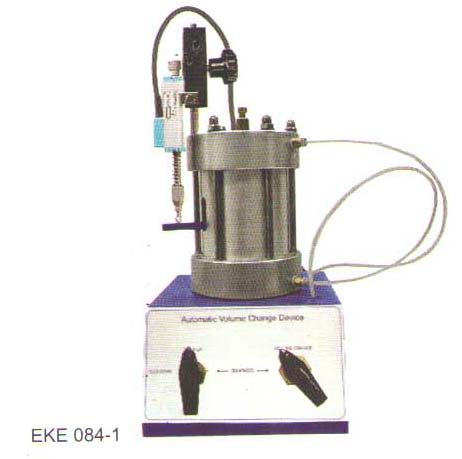

    Automatic Volume Change Gauge

    Automatic Volume Change Gauge

    EKE 084-1:

    Designed for use with triaxial cells, specially for continuous measurement of volume change during the test. The unit consists of a top volume change chamber, which has a capacity of 100 ml and 1 bottom chamber with a  capacity of 100 ml. the change over valve box enables the effective use of the device with unlimited capacity. It can also be used to measure permeability.

    Feature:-
    •    It can be used with LVDT
    •    The accuracy I better than 0.1 ml
    •    Supplied with push fittings (4mm) for easy connections, but without measurement device and mounting block.

    Specifications:-
    •    The Automatic Volume Change Apparatus consists of a calibrated chamber of known volume and a piston machined to tight tolerances , to give a precise measurement of the changing volume within the cylinder. As the piston moves an LVDT.It either displays or transmits the change in volume to a data logger.
    •    If the change in volume exceeds 100 cc then a changeover valve allows the internal piston to move in the opposite direction.
    •    This can be repeated until volume change has completed
    •    Large volume of water can be measured during permeability testing also.

    Technical Specifications  EKE 084-1
    Capacity  Initially 100 cc
    Pressure Capacity  20 bar
    Accuracy  < ± 0.05 ml
    Net Weight  7.5 kg
    Dimensions   200 (L) x 250 (W) x 330 (H) mm



    Constituents Of Triaxial Test Outfits Motorised 095-2

    Constituents of Triaxial Test Outfits Motorised – 095-2
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 095-2:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38 mm
    -    Load Frame: EKE 064
    -    Triaxial Cell : EKE 075-38
    -    Proving Ring: EKE 265
    -    Constant Pressure : EKE 081-1-2”
    -    Pore Pressure System: EKE 077
    -    Dial Gauge : EKE 072
    -    Triaxial Electronic : -
    -    Data Acquisition System: -
    -    Analysis Software System : -
    -    Volume Change: EKE 084
    -    Test to be Done: UU,CU, CD

    Constituents Of Triaxial Test Outfits Motorised 095-U-2

    Constituents of Triaxial Test Outfits Motorised – 095-U-2
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 095-U-2:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended.These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38-100 mm
    -    Load Frame: EKE064
    -    Triaxial Cell : EKE 076
    -    Proving Ring: EKE 268
    -    Constant Pressure : EKE 081-1-2”
    -    Pore Pressure System: EKE 077
    -    Dial Gauge : EKE 072
    -    Triaxial Electronic : -
    -    Data Acquisition System: -
    -    Analysis Software System : -
    -    Volume Change: EKE 084
    -    Test to be Done: UU,CU, CD

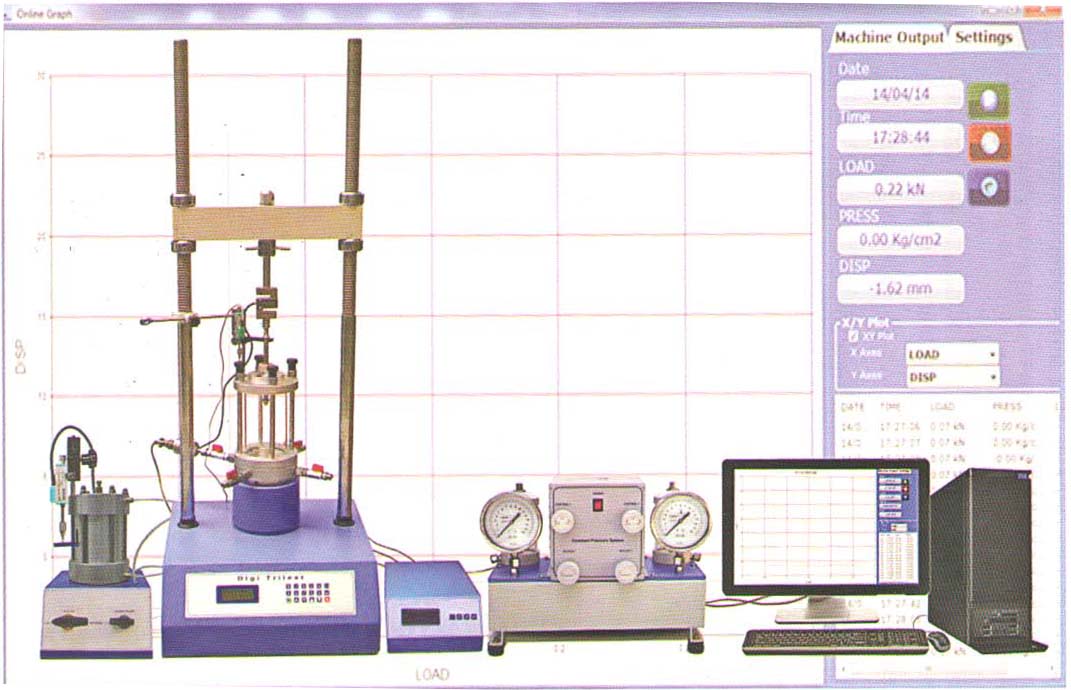

    Constituents Of Triaxial Test Outfits Motorised 096-8

    Constituents of Triaxial Test Outfits Motorised – 096-8
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-8:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These          may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38 mm
    -    Load Frame: EKE 064
    -    Triaxial Cell : EKE 075-38
    -    Proving Ring: -
    -    Constant Pressure : - EKE 081-1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 085
    -    Data Acquisition System: -
    -    Analysis Software System : -
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU,CU, CD

    Constituents Of Triaxial Test Outfits Motorised 096-U-2

    Constituents of Triaxial Test Outfits Motorised – 096-U-2
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-U-2:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38-100 mm
    -    Load Frame: EKE 064
    -    Triaxial Cell : EKE 075-38
    -    Proving Ring: -
    -    Constant Pressure : EKE 081 – 1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 085-1
    -    Data Acquisition System: -
    -    Analysis Software System : -
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU,CU, CD

    Constituents Of Triaxial Test Outfits Motorised 096-9

    Constituents of Triaxial Test Outfits Motorised – 096-9
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-9:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38 mm
    -    Load Frame: EKE 064
    -    Triaxial Cell : EKE 075 - 38
    -    Proving Ring: -
    -    Constant Pressure : EKE 081-1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 085
    -    Data Acquisition System: EKE 101
    -    Analysis Software System : EKE 10121
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU,CU,CD

    Constituents Of Triaxial Test Outfit Motorised 096-9-U

    Constituents of Triaxial Test Outfits Motorised – 096-9 -U
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-9-U:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended.These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38-100 mm
    -    Load Frame: EKE 064
    -    Triaxial Cell : EKE 076
    -    Proving Ring: -
    -    Constant Pressure : EKE 081-1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 085-1
    -    Data Acquisition System: EKE 101
    -    Analysis Software System : EKE 10121, EKE 10122 and EKE 10123
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU.CC, CD

    Constituents Of Triaxial Test Outfit Motorised 096-10

    Constituents of Triaxial Test Outfits Motorised – 096-10
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-10:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38 mm
    -    Load Frame:  EKE 064-E
    -    Triaxial Cell : EKE 075-38
    -    Proving Ring: -
    -    Constant Pressure :  EKE 081-1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 064-E
    -    Data Acquisition System: -
    -    Analysis Software System : -
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU, CU, CD

    Constituents Of Triaxial Test Outfits Motorised 096-10-U

    Constituents of Triaxial Test Outfits Motorised – 096-10-U
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-10-U:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38-100 mm
    -    Load Frame: EKE 064-E
    -    Triaxial Cell : EKE 076
    -    Proving Ring: -
    -    Constant Pressure : EKE 081-1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 064-E includes EKE 085-1
    -    Data Acquisition System: -
    -    Analysis Software System : -
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU,CU,CD

    Constituents Of Triaxial Test Outfit Motorised 011

    Constituents of Triaxial Test Outfits Motorised – 096-11
    Ref. Standards  IS: 2720 (Part XI & XIII) BS 1377-7, 1924-2, ASTM D2850, D4767 AASHTO T296, T297

    EKE 096-11:

    The experimental investigation for determining the stress-strain relationship is usually carried out with the Triaxial Compression Test. During the test, the soil samples gradually stressed upto failure. Generally speaking , Triaxial tests are performed to simulate different types of stress and drainage conditions that can occur in the sub-soil for simulating the effect of building construction, excavation, tunneling etc. the three different triaxial tests are usually performed for total and effective stress measurement.

    Note: 1. Computer with following minimum specifications is for the subject product:
    •    Windows 7 Loaded
    •    Pentium Core 3 DUO
    •    2 GB RAM
    •    120 GB HDD
    2. Volume change needs to be measured in CU & CD test; Hence the use of either of the two models is recommended. These may be selected based on the type of outfit selected. These can be supplied at extra cost.

    -    Sample Dia. : 38 mm
    -    Load Frame: EKE 064-E
    -    Triaxial Cell : EKE 075-38
    -    Proving Ring: -
    -    Constant Pressure : EKE 081-1-2”
    -    Pore Pressure System: -
    -    Dial Gauge : -
    -    Triaxial Electronic : EKE 064-E Includes EKE 085
    -    Data Acquisition System: EKE 101
    -    Analysis Software System : EKE 10121, EKE 10122 and EKE 10123
    -    Volume Change: EKE 084-1
    -    Test to be Done: UU,CU,CD

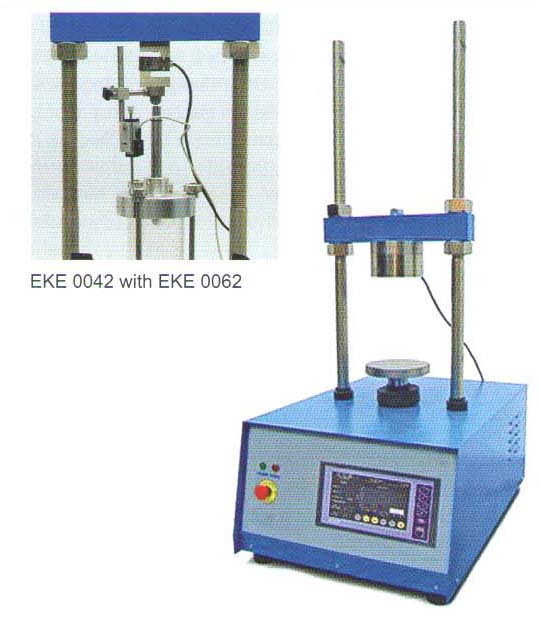

    Servoplex Universal Electromechanic Test Machine

    Servoplex Universal Electromechanic Test Machine

    EKE 0108:

    The EKE 0108 Servoplex Universal Electomechanic Test Machine is a Servo Controlled Servoplex Machine supplied complete with EKE 0025 50 kN Load Cell, EKE 0062 25 mm Linear potentiometric Transducer and EKE 4930 EK CC.100 Data Acquisition and Control Unit 5 kN load cell should be  ordered separately for Triaxial Tests.

    The Frame capacity is 50 kN. This versatile digital loading frame features a microprocessor controlled drive system with an advanced servo motor enabling the operator to easily set any test speed via the membrane keyboard. The keyboard comprises adjustment buttons such as “Start”, “Increase”, “Automatic”, “Manual”. “Down”, “Up”. The testing speed can be set between 0.00001 mm/min to 51 mm/min. the test automatically stops when load and displacement is reached to 99% value of the set measuring range.

    Load and displacement values are collected by EK.EC 100 and transferred to PC for further processing with the EKE 0416 UU and EKE 0417 CU-CD Software.

    Dimension : 500 x 650 x 1100 mm
    Weight : (Approx.) : 95 kg
    Power : 750 W

    Load Cells – 5 KN Capacity, S Type

    Load Cells – 5 kN Capacity , S Type

    EKE 0010:

    A Load Cell is a transducer which is used to convert the applied force to electric signal. ENKAY supplies high quality strain gauge load cells which provide accurate electrical signal proportional to the applied load.

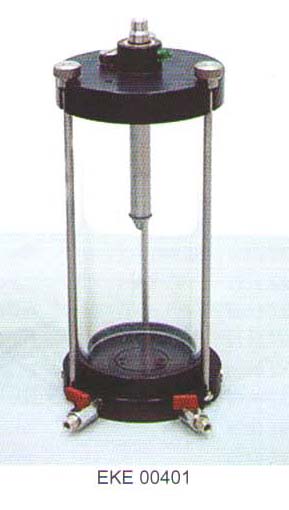

    Standard Triaxial Cell For 70mm & 100mm Dia

    Standard Triaxial Cell for 70 mm and 100 mm dia. Samples

    EKE 00401:

    The ell has been designed and treated to minimize corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of a special lubricant to reduce friction to a minimum and eliminate water leakage. The piston load capacity is designed to accept high axial loads which may be present during the final stages of a test.
    Each cell has five take- off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Three no volume change valves and anvil for displacement transducer are supplied complete with the cell. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens.
    The cell capacity is  designed to tolerate conforming pressures as high as 1700 kPa which is enough for simulating most in-situ conditions.
    Dimension : 210 x 210 x 550 mm
    Weight : (Approx.) : 12 kg

    Block With One Connection Line For Triaxial Test Cells

    Block With One Connection Line for Triaxial Test

    EKE 0405:

    The pressure Transducer is used for the measurement of cell or back or pore pressure of water in triaxial test systems and also should be used with a ENKAY Ek.EC 100 TFT Unit (EKE-4390) or  datalogger (EKE 0320). The Block for Triaxial test cells are used for connection of the pressure transducers and de- airing in the water hoses.

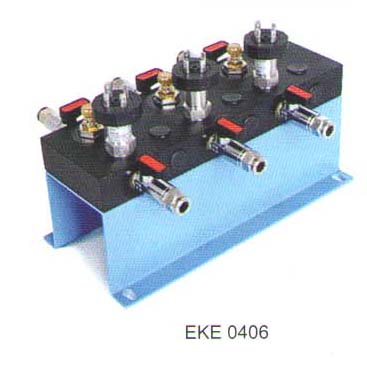

    Block With Three Connection Lines For Triaxial Test Cells

    Block with Three Connection Lines for Triaxial Test

    EKE 0406:

    The pressure Transducer is used for the measurement of cell or back or pore pressure of water in triaxial test systems and also should be used with a ENKAY EK.EC 100 TFT Unit (EKE-4390) or  datalogger (EKE 0320). The Block for Triaxial test cells are used for connect.

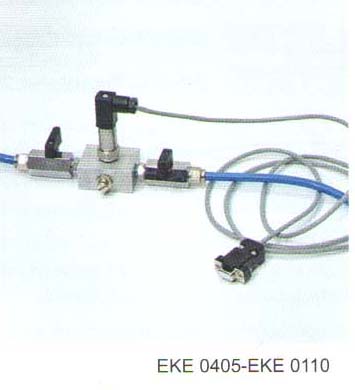

    Pressure Transducer, 2000 KPa

    Pressure Transducer, 2000 kPa

    EKE 0110:

    The pressure Transducer is used for the measurement of cell or back or pore pressure of water in triaxial test systems and also should be used with a ENKAY Ek.EC 100 TFT Unit (EKE-4390) or  datalogger (EKE 0320). The Block for Triaxial test cells are used for connection of the pressure transducers and de- airing in the water hoses.

    Automatic Oil And Water Constant Pressure System

    Automatic Oil and Water Constant Pressure System

    EKE 0408:

    EKE 0408: Oil and Water Constant  Pressure Unit, 1700 kPa 220-240 V, 50-60 Hz, 1 Ph
    EKE 0409: Digital Pressure Gauge , 1700 kPa (250 psi)
    EKE 0110: Pressure Transducer , 2000 kPa

    The oil and Water Constant  Pressure Unit is extremely versatile and can be used in conjunction with a wide range of test equipment. The unit provides continuous variable pressure up to 1700 kPa. Pressure is increased or decreased simply by turning a control wheel

    The unit is used for providing cell/back pressure in triaxial tests. The apparatus is supplied without a gauge for those customers who have suitable pressure monitoring equipment.

    As optional equipment for  monitoring the pressure of the unit;

    •    The digital pressure Gauge (EKE 0409 or
    •    The pressure transducer (EKE 0110) which can be used with ENKAY EK.EC 100 TFT Unit on the Servoplex Universal Electromechanic Test Machine (EKE 0108 for only UU test or
    •    The pressure transducer (EKE 0110) which should be used with the datalogger (EKE 0320) for CU-CD tests

    Can be used and preferred optional equipment should be ordered separately

    The machine features a clear hydraulic/water interface reservoir and up to 1 litter capacity of water is available under pressure, supplied complete with 2 litters of No.46 regular hydraulic oil.

    EKE 0408:
    Dimension : 300 x 250 x 250 mm
    Weight : (Approx.) : 7.5 kg
    Power : 35 W
    EKE 0409:
    Dimension : 150 x 150 x 100 mm
    Weight : (Approx.) : 0.6 kg
    Power : --

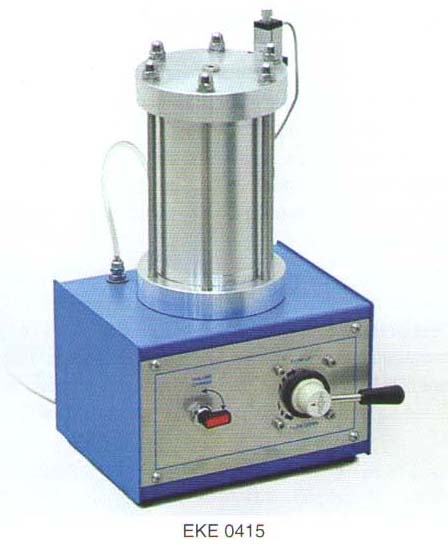

    Automatic Volume Change Unit

    Automatic Volume Change Unit

     EKE 0415:

    The unit consists of a piston connected to a 25 mm travel linear transducer which is sealed against a precision machined calibration chamber so that the linear movement of the piston is exactly proportional to the volume of water in the calibration chamber.
    The apparatus creates an electrical signal proportional to the volume of water flowing through the unit. By connecting it to the data acquisition system the measured volume change will be used by software during the test and in final report.
    Capacity : 100cm²
    Transducer Input : Up to 12 V DC
    Accuracy : ± 0.1 ml
    Dimension : 260 x 260 x 400 mm
    Weight : (Approx.) : 5 kg

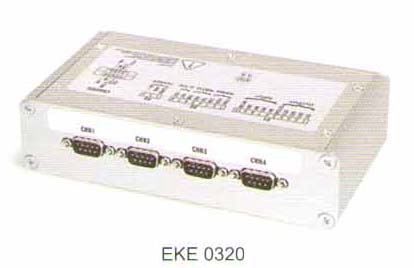

    Static Unilogger ( 4 Channels)

    Static Unilogger, 4 Channel Data Acquisition Unit 4 Channel

    EKE 0320:

    Static Unilogger, is a sophisticated data acquisition unit which provides the link between and the transducers connected to the test equipments.

    EKE 0320: Static Unilogger is used for triaxial and consolidation tests or for general data collecting purpose

    The main characteristics of EKE 0320 are :
    •    4 Channel EKE 0320
    •    High resolution : 16M points (effective 260, 000 points)
    •    Large permanent memory
    •    Ethernet port for PC Connection
    •    CPU card by microprocessor 32 bit ARM risk architecture
    •    10 (samples/sec) / channel
    •    24 bit A/D Converter  (effective 260, 000 divisions)
    •    Digital gain selection, suitable for potentiometric transducers)
    •    mv/V Sensors (Pressure transducers, Load Cells, Linear Transducers)
    •    4 Mb memory

    Standard Triaxial Cell For 38mm & 50mm Dia Samples

    Standard Triaxial Cell for 38 mm and 50 mm dia. Samples

    EKE 0400:

    The ell has been designed and treated to minimize corrosion. Particular attention has been paid to the quality of finish between the piston and the head. Final assembly includes the fitting of an O-ring seal and the use of a special lubricant to reduce friction to a minimum and eliminate water leakage. The piston load capacity is designed to accept high axial loads which may be present during the final stages of a test.
    Each cell has five take- off positions drilled in the base for top drainage/back pressure, pore water pressure and bottom drainage. Three no volume change valves and anvil for displacement transducer are supplied complete with the cell. Each cell will accept a range of base adaptors and various accessories for testing a wide range of specimens.
    The cell capacity is  designed to tolerate conforming pressures as high as 1700 kPa which is enough for simulating most in-situ conditions.
    Dimension : 160 x 160 x 400 mm
    Weight : (Approx.) : 4.5 kg


    Unit TFT Graphic Display Data Acquisition & Control Unit

    Unit TFT Graphic Display Data Acquisition and Control Unit

    EK. CC. 100:

    EK. CC 100 TFT Graphic Display Data Acquisition and Control Unit is designed to control the machine and processing of data from load cells, pressure transducers or displacement transducers which are fitted to machine

    All the operations of EK.CC 100 are controlled from the front panel consisting of a 800 x 480 pixel 65535 color resistive touch screen display and function keys. 4 analogue channels (it would be simultaneous or not depending on the application at the factory) are provided for load – cells pressure transducers or displacement transducers.

    EK.CC 100 has easy to use options. It displays all menu option listings  simultaneously , allowing the operator to access the required option in a seamless manner to active the option or enter a numeric valve to set the test parameters. The EK.EC100 digital graphic display is able to draw real-time “Load vs. Displacement” or “Stress vs. Time” Graphics.

    EK.EC 100 unit offers many addition unique features. You can save more than 10000 test results in its memory. EK.EC 100 unit has support for various off-the-Shelf USB printers, supporting both inkjet and laser printers. Thanks to its built-in internet protocol suite, every aspect of EK.CC 100 device can be controlled remotely from anywhere around the world.

    Features:
    •    Can make test with displacement or load control
    •    Real time display of test graph
    •    CPU card with 32-bit ARM RISC architecture
    •    One analog channel for high capacity load cell ,one analog channel for low capacity load cell, one analog channel for displacement transducer and one analog channel for cell pressure (only for UU tests)
    •    Programmable digital gain adjustment for load – cell, pressure transducers, strain – gauge based sensors, potentiometric sensors, voltage and current transmitters
    •    1/256000 points resolution per channel
    •    10 data per second sample rate for each channel
    •    Ethernet connecting for computer interface
    •    800 x 480 resolution 65535 color TFT-LCD industrial touch screen
    •    4 main function keys
    •    Multi – language support
    •    3 different system selection ; kN, Ton and ibf
    •    Real – time clock and date
    •    Test result visualization and memory management interface
    •    Remote connection through Ethernet
    •    USB flash disc for importing test results and for firmware
    •    USB printer support for inkjet and laser printers (ask for models)
    •    Camera support for real – time video recording during test (ask for compatible models)
    •     Free of charge PC software for the test control and advanced report generation

    Automatic Oil And Water Constant Unit

    Automatic Oil and Water Constant Pressure System

    EKE 0408:

    EKE 0408: Oil and Water Constant  Pressure Unit, 1700 kPa 220-240 V, 50-60 Hz, 1 Ph
    EKE 0409: Digital Pressure Gauge , 1700 kPa (250 psi)
    EKE 0110: Pressure Transducer , 2000 kPa

    The oil and Water Constant  Pressure Unit is extremely versatile and can be used in conjunction with a wide range of test equipment. The unit provides continuous variable pressure up to 1700 kPa. Pressure is increased or decreased simply by turning a control wheel

    The unit is used for providing cell/back pressure in triaxial tests. The apparatus is supplied without a gauge for those customers who have suitable pressure monitoring equipment.

    As optional equipment for  monitoring the pressure of the unit:

    •    The digital pressure Gauge (EKE 0409 or
    •    The pressure transducer (EKE 0110) which can be used with ENKAY EK.EC 100 TFT Unit on the Servoplex Universal Electromechanic Test Machine (EKE 0108 for only UU test or
    •    The pressure transducer (EKE 0110) which should be used with the datalogger (EKE 0320) for CU-CD tests

    Can be used and preferred optional equipment should be ordered separately

    The machine features a clear hydraulic/water interface reservoir and up to 1 litter capacity of water is available under pressure, supplied complete with 2 litters of No.46 regular hydraulic oil.

    EKE 0408:
    Dimension : 300 x 250 x 250 mm
    Weight : (Approx.) : 7.5 kg
    Power : 35 W
    EKE 0409:
    Dimension : 150 x 150 x 100 mm
    Weight : (Approx.) : 0.6 kg
    Power : --

    Pressure Transducer, 2000 KPa

    Pressure Transducer, 2000 kPa

    EKE 0110:

    The pressure Transducer is used for the measurement of cell or back or pore pressure of water in triaxial test systems and also should be used with a ENKAY Ek.EC 100 TFT Unit (EKE-4390) or  datalogger (EKE 0320). The Block for Triaxial test cells are used f

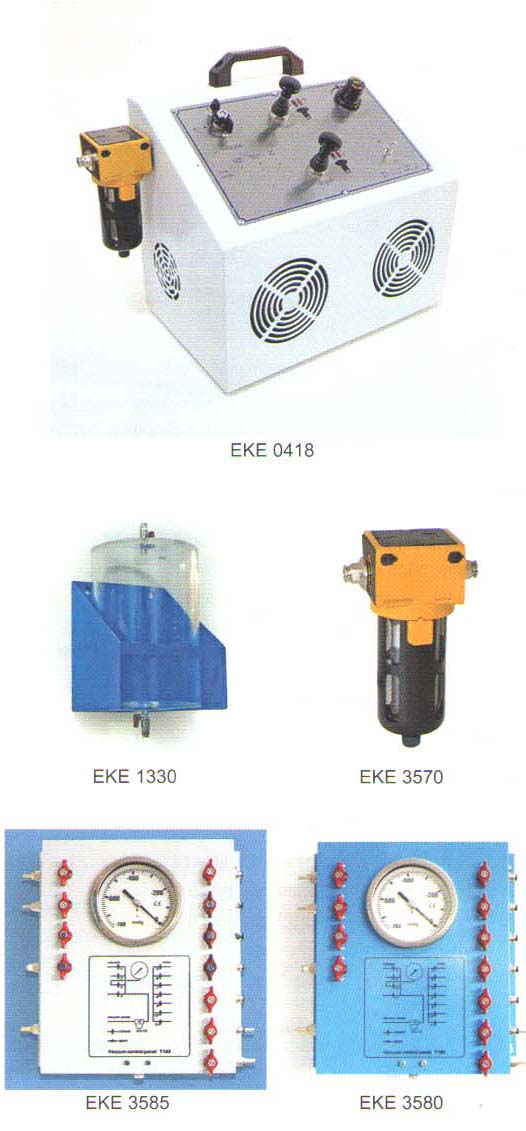

    De-Airing Water Apparatus , 230V, 50Hz, 1ph

    De-Airing Water Apparatus , 230 V, 50 Hz, 1 Ph

    EKE 0418:

    EKE 1330: De- Airing Water Tank, 7 L
    EKE 3580: Vacuum Control and Water Connection Panel with Regulator and Vacuum Gauge Manometer
    EKE 3585: Connection Panel for Vacuum and water with Vacuum Gauge Manometer
    EKE 3505: Vacuum Pump 51 L/min. Capacity, 220 -240 V 50-60 Hz
    EKE 2015: Filter Flask 2000 ml
    EKE 3570: Air Drying Unit/Water Trap, Vacuum Type
    EKE 1140: Plastic Hose, Φ8 mm, 6m

    The EKE0418 De – Airing Water Apparatus is a compact and self – contained equipment which can de-air water quickly and efficiently down to levels of dissolved oxygen acceptable for geotechnical test methods. The apparatus used in conjunction with the de-airing tank (EKE 1330). Air is removed from the water by a vacuum system. De  - airing tank should be ordered separately.
    The First Option for De- Airing Water:
    •    De- Airing Water Apparatus EKE 0418
    •    De- Airing Water Tank (EKE 1330)
    •    Vacuum Control and Water Connection Panel with Regulator and Vacuum Gauge Manometer (EKE 3580) or Connection Panel for Vacuum and Water with Vacuum Gauge (EKE 3585) ( These panels are optional)
    •    Plastic Hose (EKE 1140)
         The Second Option for De-Airing Water:
    •    Vacuum Pump (EKE 3505)
    •    Filter Flask (EKE 2015) or Air Drying Unit/Water Trap (EKE 3570)
    •    De-Airing Water Tank (EKE 1330)
    •    Vacuum Control and Water Connection Panel with Regulator and Vacuum Gage Manometer (EKE 3580) or Connection Panel         for Vacuum and Water with Vacuum Gauge (EKE 3585) ( These panels are optional)
    •    Plastic Hose (EKE 1140)
    By using EKE 3580 Vacuum Control and Water Connection Panel, Vacuum Pressure degree can be regulate
    By using EKE 3585 Connection Panel for vacuum and water with Vacuum gage Manometer and EKE 3580 Vacuum Control and Water Connection Panel with Regulator, de – airing water equipment can be used without repeated assembling the h
