SAMPLING AND PHYSICAL PROPERTIES

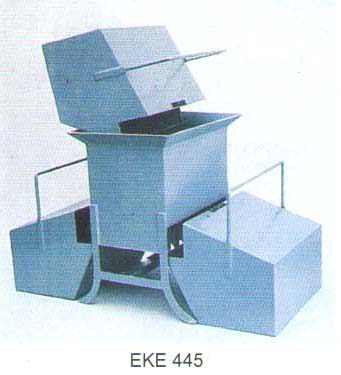

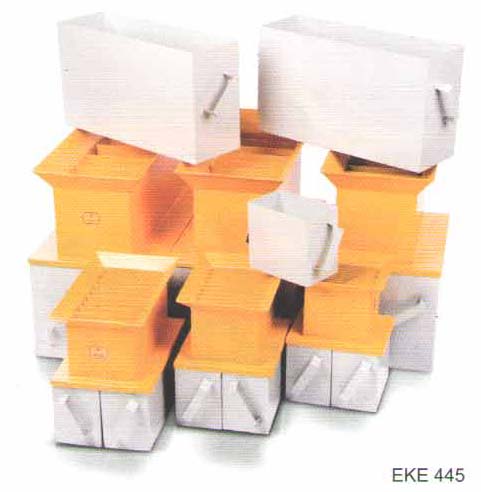

EKE 445

Ref. Standard : IS:1607-1977, 2720, ASTM C136, D421, D422, D427, D4517, D452, D457, D806, D4318, BS:812 (Part 103) , 1377, AASHTO T27, T87

For the rapid collection of true representative samples from aggregates, sand and fillers, sample divider is required

Riffle Sample Divider consists of a metal box fitted with a series of chutes of equal width which discharge the material alternatively in opposite directions into separate pans. The chutes of the riffle are steep enough to allow of the material.

Supplied complete with three containers

Slot Width (mm) : 13
No. of Slots : 14
Approx. Capacity D m³ : 2.1

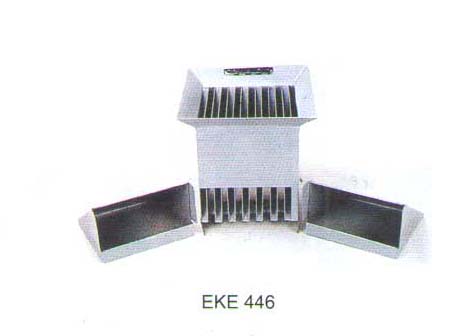

EKE 446:

Ref. Standard : IS:1607-1977, 2720, ASTM C136, D421, D422, D427, D4517, D452, D457, D806, D4318, BS:812 (Part 103) , 1377, AASHTO T27, T87

For the rapid collection of true representative samples from aggregates, sand and fillers, sample divider is required

Riffle Sample Divider consists of a metal box fitted with a series of chutes of equal width which discharge the material alternatively in opposite directions into separate pans. The chutes of the riffle are steep enough to allow of the material.

Supplied complete with three containers

Slot Width (mm) : 25
No. of Slots : 16
Approx. Capacity D m³ : 4.4


Riffle Sample Divider (Latest Design) – Chute Width (mm) 9.0
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/02:
•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  9.0
Number of Chutes : 12

Riffle Sample Divider (Latest Design) – Chute Width (mm) 12.5
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/12:

•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  12.5
Number of Chutes : 12

Riffle Sample Divider (Latest Design) – Chute Width (mm) 19.0
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/19:
•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  19.0
Number of Chutes : 10

Riffle Sample Divider (Latest Design) – Chute Width (mm) 25.0
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/25:
•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  25.0
Number of Chutes : 10

Riffle Sample Divider (Latest Design) – Chute Width (mm) 37.5
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/37:
•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  37.5
Number of Chutes : 8

Riffle Sample Divider (Latest Design) – Chute Width (mm) 50.0
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/50:

•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  50.0
Number of Chutes : 10

Riffle Sample Divider (Latest Design) – Chute Width (mm) 62.5
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/62:

•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  62.5
Number of Chutes : 10

Riffle Sample Divider (Latest Design) – Chute Width (mm) 75.0
Ref. Standard  ASTM C136, AASHTO T27, EN 933.3

EKE 455/75:

•    Designed to halve/divide Aggregates, Soils and Gravel into two representative halves.
•    Made of powder coated enameled steel

Supplied with :
•    Pans (2ea.)

Chute Width (mm) :  75.0
Number of Chutes : 10

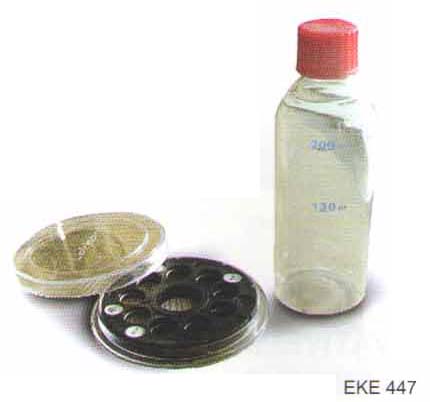

Organic Impurities Test Set

EKE 447:

•    Used to determine the impurities and their amount in the soil and the fine particles of aggregates.
•    Equipped with organic color scale and organic impurities bottles

Technical Specifications:
•    Organic Color Scale
•    Organic Impurities Bottles

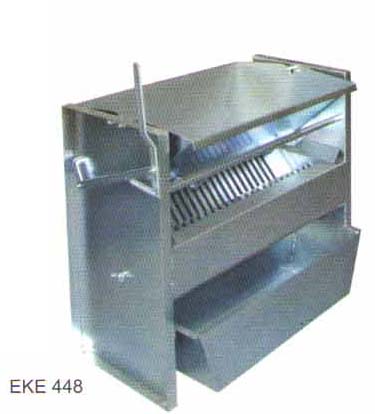

Universal Sample Splitter
Ref. Standard ASTM C136, AASHTO T27, EN 933:3

EKE 448:

•    Used to halve/divide large amount of aggregates, soils, sand and gravel into two representative portions
•    The width of each chute bar is ½”
•    Equipped with lever and release hoppers
•    Made of heavy – duty steel
•    Supplied with two collecting pana
Supplied with :
•    Collecting Pans (2 ea)
Technical Specifications:
-    Chutes : Adjustable, With : ½ ” each

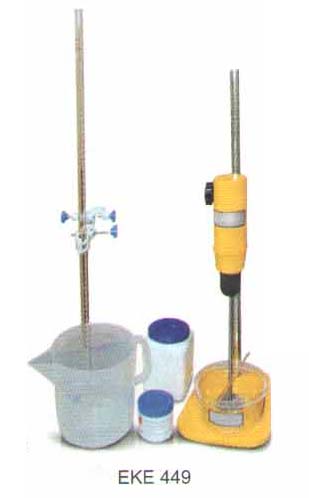

Methylene Blue Test
Ref. Standard EN 933.3

EKE 449:

•    Used to determine the amount of clay in the fine proportions of aggregate

Technical Specifications:
•    50 cc burette x stopcock
•    Support base x clamp
•    Glass rod and filter discs
•    3000 ml plastic beaker
•    Methylene Blue 250 gr
•    Kaolinite 1000 r
•    Mixer 400-700 rpm
•    Impeller : 75 mm dia.
•    Power Supply : 220-240 C, 50 Hz

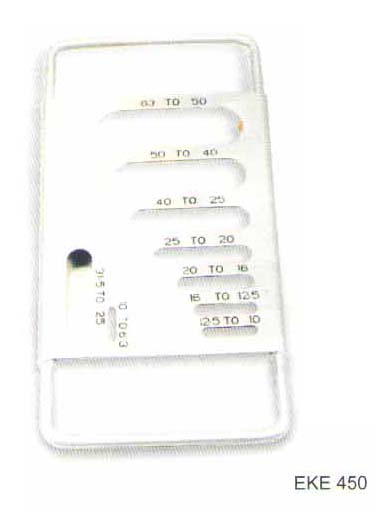

Thickness Gauge

EKE 450:

Construction from heavy gauge sheet steel

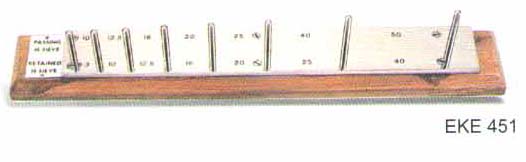

Length Gauge

EKE 451:

Constructed from steel, mounted on a hardwood base

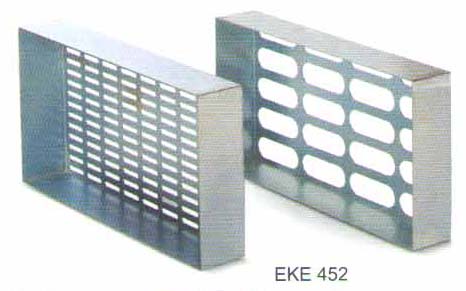

Flakiness Sieve Set

EKE 452:

•    Used to determine whether the aggregate particle is flaky or not, that is to determine whether the thickness of the particle is           less  than
        60% of its nominal size or not
•    The sieve is made from robust Stainless Steel

The Sieve Sizes For The Set Are:
•    4.90 mm x 30.00 mm
•    7.20 mm x 40.00 mm
•    10.20 mm x 50.00 mm
•    14.40 mm x 60.00 mm
•    19.70 mm x 80.00 mm
•    26.30 mm x 90.00 mm
•    33.90 mm x 100.00 mm

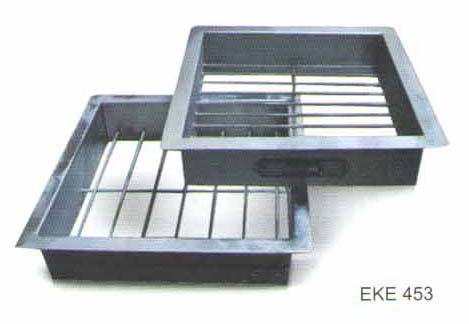

Grid Sieve Set
Ref. Standard EN 933.3

EKE 453:

•    Used to determine the flakiness index for the  aggregate particles and determine the particle shape
•    The sieve is made from robust frame with stainless steel bars
•    Consists of 14 Sieves with openings as the following (mm) : 50.00- 40.00- 31.50 – 25.00- 20.00- 16.00 – 12.50 – 10.00 – 8.00 –      6.30 – 5.00 – 4.00– 3.15 – 2.50

Technical Specifications:
•    Metal Frame
•    Stainless Steel Parallel bars
•    Set of 14 Sieves (mm) 50.00- 40.00- 31.50 – 25.00- 20.00- 16.00 – 12.50 – 10.00 – 8.00 – 6.30 – 5.00 – 4.00 – 3.15 – 2.50

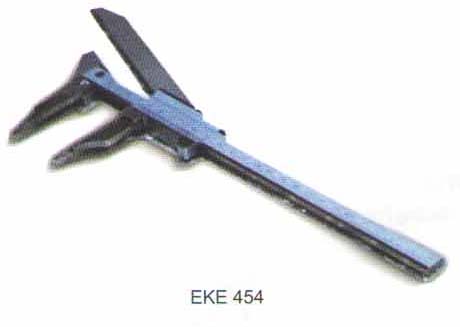

Aggregate Shape Gauge
Ref. Standard EN 993-4 , DIN 4226

EKE 454:

•    Used to determine the ratio between the length to the thickness of any individual parcels

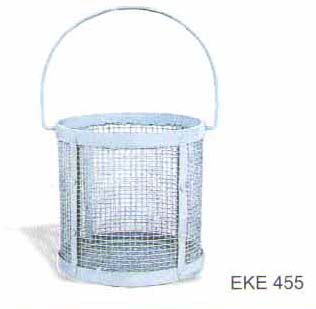

Density Basket
Ref. Standard IS:2386 (Part 3)

EKE 455:

Ruggedly constructed from galvanized wire mesh , approx. 20 cm dia. x 20 cm high
