SAMPLE PREPARATION/ MOULDS

Vibration Machine
Ref. Standard  IS: 4031, IS:10080

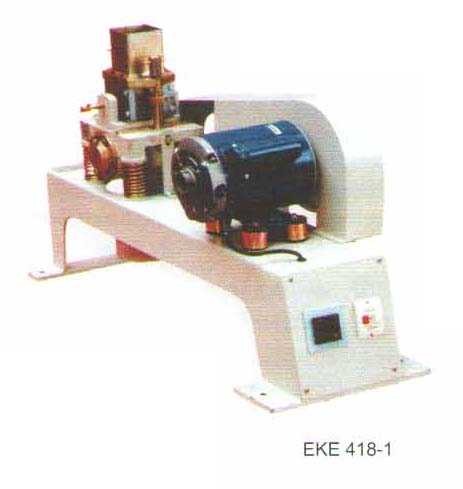

EKE 418-1:

The vibrator is mounted over coiled springs and the vibrations are developed by means of a revolving eccentric shaft. The center of gravity of the vibrator , including the cube and moulds , is either at the center of the eccentric shaft or within 25 mm blow it. The simple design of the machine facilities easy assembly and dismantling of the cube moulds. The machine is suitable for operation on 220 Volt, 50 Hz, Single Phase , AC Supply. Each machine supplied with One Cube Mould (steel) with ISI Certification Mark (On request)

Optional Extras:
EKE 414 Mould, Steel, for 70.6 mm Cube with ISI Certification Mark as per IS:10080

Spares:
EKE 41801: Side Spring
EKE 41802: Supporting Springs (Set of Four)
EKE 41803: Springs, for Fitting Mould (Set of Two)
EKE 41804: Endless Belt
EKE 41805: Belt Guard
EKE 41807: Electric Shafts with bearing

Cube Mould – Steel

EKE 414:

For preparation of mortar and lime cubes

Mould Steel, for 70.6 mm Cube with

Cube Mould – Cast Iron

EKE 417:

For preparation of mortar and lime cubes


Mould Three Gang

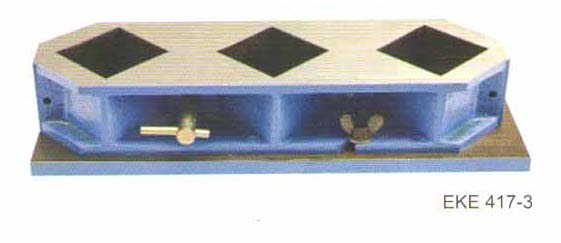

EKE 417-3:

Cast Iron, for 50 mm cube

Jolting Apparatus
Ref. Standard IS:10078

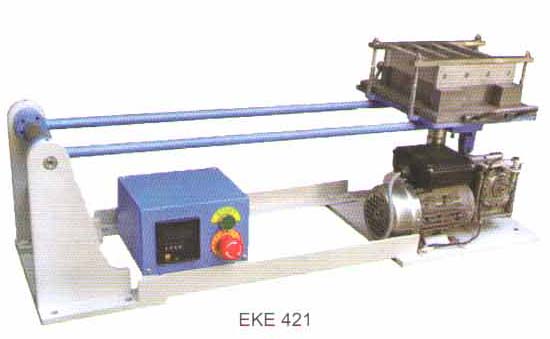

EKE 421:

The jolting apparatus consists of a rectangular table, rigidly connected by two support arms to spindle at a horizontal distance of 800 mm from the center of the table. The table can be raised and allowed to fall freely by a cam which is connected to a motor. The cam  rotates at a rate of 60 rpm.  A stroke counter , fitted with micro switch , is provided, which stops the machine after 60 jolts. Locating pins are provided for mounting the mould compartments on the table. The mould , surrounded by the hopper , can be clamped rigidly to the table,. Supplied complete with mould and hopper. Suitable for operation with 220 Volt,, Single Phase, AC Supply.

Mould for Flexural Prism, Steel

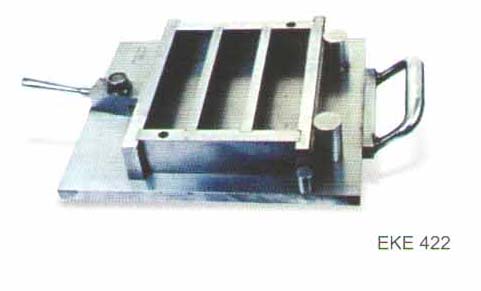

EKE 422:

Three compartments, each of 40 x 40 x 160 mm

Demoulding Apparatus

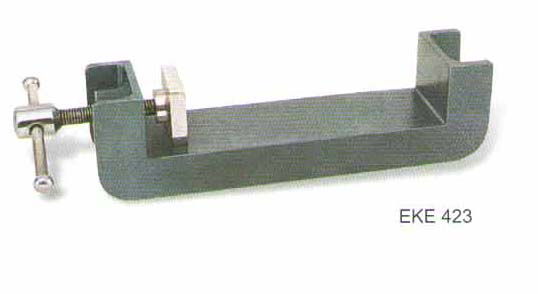

EKE 423:

For Demoulding the specimens
