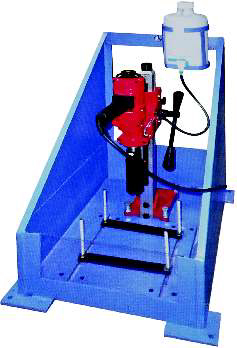

EKE 201 Core Drilling Machine
EKE 201: Core Drilling Machine
- Heavy duty, pillar type frame with 1500W.
- Varying cutting feeds provided with water-fed swivel head which can be connected to suitable water supply. Provision at base for ?water collection/ drainage.
- Core preparation from regular and irregular samples Core size: EX to ?100mm.
- Clamping arrangement to hold specimens with regular/ irregular ?shapes to the base of machine.
- Two cutting speeds at no load 950/2100rpm.
- Water Tank 5ltr. is Standard outfit.
Suitable for operation on 220 V, one phase, AC supply.
ORDERING INFORMATION
| EKE 201 | Core Drilling Machin |
OPTIONAL ACCESSORIES:
| EKE 20101 | Core Drilling Bit, 21.46 mm dia (EX size) |
| EKE 20102 | Core Drilling Bit, 30.10 mm dia (AX size) |
| EKE 20103 | Core Drilling Bit, 35 mm dia |
| EKE 20104 | Core Drilling Bit, 42.04 mm dia (BX size) |
| EKE 20105 | Core Drilling Bit, 54.74 mm dia (NX size) |
| EKE 20106 | Core Drilling Bit 50 mm Dia |
NOTE : HILTI BITS available on request including BITS for 75 & 100 mm dia.

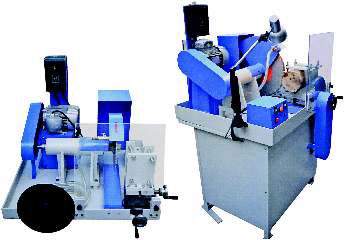

EKE 202 Core Cutting And Grinding Machine
EKE 202: Core Cutting and Griding Machine
- Table Mounted
- Stable Construction
- Feed arrangement for cutting
- Cooling water arrangement
- Heavy Duty, AC, single phase motor
This unit is designed for cutting and grinding cylindrical rock specimens upto NX size. The outfit includes 200 mm dia diamond impregnated cutter, a fine diamond impregnated grinding wheel, a water supply system and sample holder.
For floor mounted models. Water pipe with necessary valve is provided for connecting to a source of water. For table mounted model, a water tank along with coolant pump, pipe & necessary valves is provided.
A V-Vice, to hold the sample upto 55 mm dia x 140 mm long to be cut parallel and square to the longitudinal axis is provided. Cores longer than 140 mm can be prepared by reversing the specimen and holding against the vice. A hand feed arrangement is provided to facilitate the specimen with a uniform and smooth feeding motion.
Suitable for operation on 415V, three phase, AC supply
ORDERING INFORMATION:
| EKE 202 | Core Cutting & &Grinding Machine, 35 to 75 mm dia |
| EKE 202-2 | Core Cutting & Grinding Machine, Table Top Model 35 mm to 150 mm dia |
| EKE 202-100 | Core Cutting & Grinding Machine, 50 to 100mm Dia |
| EKE 202-150 | Core Cutting & Grinding Machine, 75 to 150 mm dia |
NOTE : Can also be provided for 100 mm and 150 mm diameter Samples
