SAMPLE COLLECTION

Core Case (Portable)

EKE 368:

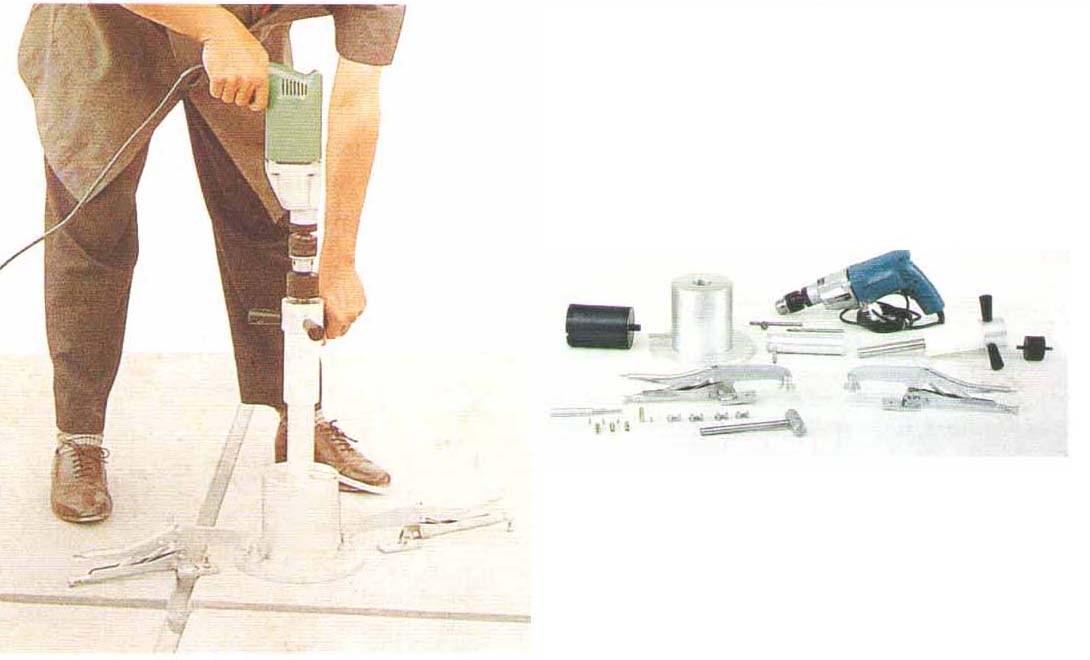

Core Case is the first innovation in Concrete core drilling connected to the core drill assembly with a flexible rubber coupling , the heavy duty, hand held , rotary drill easily produces cores upto 100 mm in dia. without the use of cumbersome frame and feed.
The water jackets surrounding the core barrel is flanged , enabling it to be clamped to the surface to be drilled. For added support clamping pliers and anchors are supplied . A rubber O – ring fitted with the flange seals the water jacket core barrel assembly against concrete surface, enabling the return flushing water containing the cuttings to be hosed away from the drill site.
Water is fed into the upper water jacket nipple, from there the water flows, through a manifold, into the drill spindle and continues to the inside of the diamond core bit. A steady feed pressure can be maintained on the drill bit by turning the capstan wheel with one hand, while holding the electric drill steady on the coupling with the other.
The drill feed assembly , common to all models, makes the system adaptable to all core diameters with additional conversion kit.
Core Case is a completely portable , self – contained system, easily carried by a person in a standard brief case.

Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply

The equipment consist of the following replaceable parts:
EKE 36819: Electrical drill for core case – 1 No
EKE 36807: Feed Assembly – 1 No
EKE 36813: Hammer Drill 8 mm – 1 No
EKE 36816: Anchor bolts – 1 Set
EKE 36817: Rubber coupling for core case - 2 Nos
EKE 36820: Clamp for holding water jacket – 1 Set
EKE 36823: Nut & Bolts – 15 Nos

Optional Accessories:

Core Bits the Water Jacket are offered in the following sizes:

EKE 36801: Core Bit and Water Jacket , 25 mm dia. x 75 mm long
EKE 36802: Core Bit and Water Jacket , 3B mm dia. x 100 mm long
EKE 36803: Core Bit and Water Jacket , 50 mm dia. x 100 mm long
EKE 36804: Core Bit and Water Jacket , 75 mm dia. x 100 mm long
EKE 36810: Core Bit, 50 mm dia. x 200 mm long
EKE 36811: Core Bit, 75 mm dia. x 200 mm long

Note: To obtain 200 mm long Core Samples, Core Bits of 100 mm long of the corresponding dia. should be used first and replaced with 200 mm long Core Bit in the same Water Jacket to advance the core length.
