SALT MIST CHAMBER

Weight
Weight Per Ten-Litter Cup – 50 ml
Ref. Standard IS:101

EKE 603:

For determining the weight of ready mixed paints and enamels in kg per ten litters. Each cup is supplied complete with lid.

Weight Per Ten-Litter Cup, Stainless Steel, 50 ml

EKE 60301: Counter Weight , brass, for EKE 603

Weight
Weight Per Ten-Litter Cup - 100 ml
Ref. Standard IS:101

EKE 604:

For determining the weight of ready mixed paints and enamels in kg per ten litters. Each cup is supplied complete with lid.

Weight Per Ten-Litter Cup, Stainless Steel, 100 ml

EKE 60301: Counter Weight , brass, for EKE 604


Salt Mist Chamber With out Compressor – Size 45 x 45 x 45 cm (L x W x H)

EKE 613:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply

Salt Mist Chamber With out Compressor – Size 45 x 45 x 60 cm (L x W x H)

EKE 614:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply

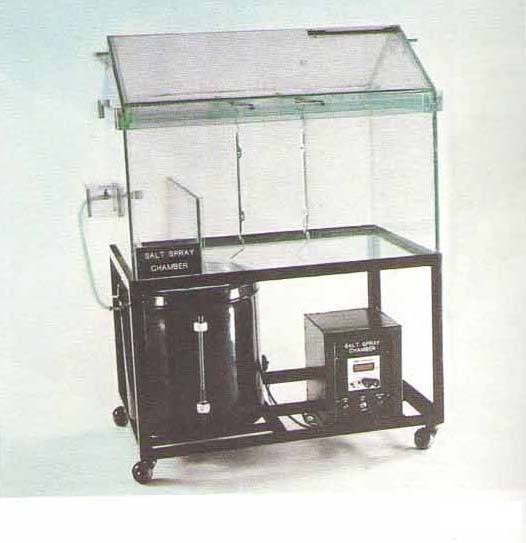

Salt Mist Chamber With out Compressor – Size 40 x 50 x 75 cm (L x W x H)

EKE 615:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS AngleUnits is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply

Salt Mist Chamber With out Compressor – Size 40 x 50 x 90 cm (L x W x H)

EKE 616:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply

Salt Mist Chamber With out Compressor – Size 45 x 60 x 90 cm (L x W x H)

EKE 617:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:Salt Mist Chamber With out Compre

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply.

Salt Mist Chamber With out Compressor – Size 60 x 60 x 60 cm (L x W x H)

EKE 618:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply.

Salt Mist Chamber With out Compressor – Size 60 x 60 x 90 cm (L x W x H)

EKE 619:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply.

Salt Mist Chamber With out Compressor – Size 60 x 60 x 100 cm (L x W x H)

EKE 621:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle \Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply.

Salt Mist Chamber With out Compressor – Size 90 x 60 x 90 cm (L x W x H)

EKE 622:

For salt Fog Testing and Corrosion Testing in Salt laden atmosphere:

•    Temperature  Range :  From Room Temperature to + 55°C
•    Humidity Range : : Upto Saturation Limit
•    Control of Temperature : Digital Readout of set and actual values
•    Testing Chamber Acrylic Plastic : Acrylic Glass of 8 mm thick, Nozzle made of Acrylic Plastic
•    Heating : SS Heating Element, 0.75 KW, 220 V, Single Phase AC, fitted the salt solution tank.
•    Solution Tank : Made of Fiber Glass, Double Walled, capacity 35 litters approx., with provision for water level
•    Chamber Stand : Made of MS Angle Units is supplied with SS rods and hooks for hanging samples Designed to deliver compressed air at a pressure up to 1kg/cm²

Suitable for operation of 220 V, 50 Hz, Single Phase , AC Supply.
