ROCKBOLT
Rockbolts, in combination with mesh reinforced concrete, forms an efficient support system for structurally controlled rock mass in underground excavations as well as in slopes. The range of Rockbolts supplied are listed below:
EKE 851 Rockbolt, 25 mm dia. x 1.5 m long
EKE 852 Rockbolt, 25 mm dia, x 3 m long
EKE 853 Rockbolt, 25 mm dia, x 6 m long
INSTRUMENTED ROCKBOLT
The Instrumented Rockbolt is used to measure change in the magnitude of loads distributed along the length of the bolt as a function of time
Applications
- Measurement of Rockbolt loads
- To monitor the behaviour of jointed roof and floor strata during various mining/tunnelling stages
- To determine the magnitude of loads on roof supports
Description
Rockbolts provide a conventional means of strengthening underground openings and stabilizing cut slopes in rock. It is therefore important to check that installed Rockbolts will not fail through over loading.
The Instrumented Rockbolts comprise a hollow ribbed steel bar fitted with upto four internal extensometer rods. The extensometer rods are secured at anchor points to the body of the Rockbolt at predetermined positions. The extensometer rods extend from each anchor point to the measuring head.
Any extensional and/or compressional force initiated by loading at locations along the length of the Rockbolt cause the displacement of adjacent rod extensometer anchor points. Consequently a change in the position of a particular anchor point causes a movement of the attatched extensometer rod which move independently of the other anchor points
Movement of one or more of extensometer rods in relation to the measuring head is monitored by inserting a dial depth gauge into the appropriate aperture in the measuring head.

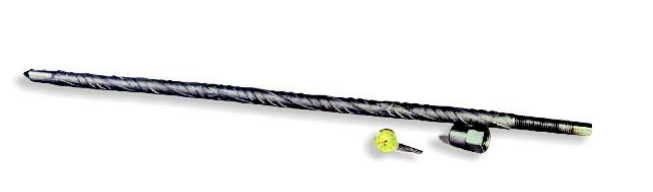

EKE 854 ENKAY - SIL Instrumented Rockbolt, 25 mm dia, 3 m long
EKE 855 ENKAY - SIL Instrumented Rockbolt, 25 mm dia, 6 m long
EKE 860 Dial Depth Gauge, 0.001 x 5 mm
