RELATIVE BEARING RATIO

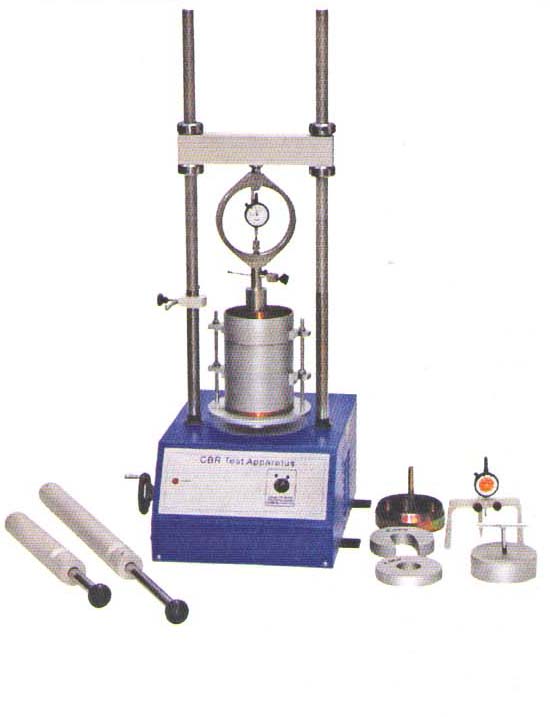

Laboratory California Bearing Ratio Test Apparatus, Motorized, Single Speed
Ref. Standards: IS:9669, IS:2720 (Part 16)

EKE 120-1 MS:

The CBR test is used for determining the relative bearing ratio and expansion characteristics under known surcharge weights of base, sub-base and surcharge soils for the design or rods, pavements and roadways. Tests can be conducted on all types of soils including sans, grave and washed stone (Passing through 20 mm IS Sieve) . The CBR test is used extensively in selection of materials and control of sub-grades.

The apparatus consists of :
EKE 062-1:   Load Frame, 50 kN (5,000 kgf) Capacity, Single Speed 1.25 mm per minute
EKE 12001:  Steel Mould – Zinc Plated 150 mm ID x 175 mm high
EKE 12002:  Steel Perforated Base Plate – Zinc Plated for EKE 12001 Mould
EKE 12003:  Steel Extension Collar – Zinc Plated 150 mm ID 50 mm high
EKE 12004:  Penetration Piston, 50 mm face dia.
EKE 12005:  Adjustable Bracket, for Penetration Dial Gauge
EKE 12006:  Circular Metal Space Disc, with detachable handle, 148 mm dia. x 47.7 mm high
EKE 12007:  Annular Metal Weight, 2.5 kg, 147 mm dia. with 53 mm dia. slot
EKE 12008:  Slotted Metal Weight, 2.5 kg, 147 mm dia. with 53 mm dia. slot
EKE 12009:  Perforated Plate, 148 mm dia. with adjustable stem and lock nut
EKE 12010:  Metal Tripod , for Dial Gauge
EKE 12011:  Cutting Collar
EKE 11002:  Rammer , 2.6 kg, 310 mm controlled drop
EKE 11102:  Rammer , 4.9 kg, 450 mm controlled drop
EKE 274:      Proving Ring, Capacity 50 kN
EKE 072:      Dial Gauge 25 mm travel, 0.01 mm least count


Laboratory California Bearing Ratio Test Apparatus, Motorized, Three Speed--
Ref. Standards: IS:9669, IS:2720 (Part 16)

EKE 120 GM:

The CBR test is used for determining the relative bearing ratio and expansion characteristics under known surcharge weights of base, sub-base and surcharge soils for the design or rods, pavements and roadways. Tests can be conducted on all types of soils including sans, grave and washed stone (Passing through 20 mm IS Sieve) . The CBR test is used extensively in selection of materials and control of sub-grades.

The apparatus consists of :
EKE 062-1:   Load Frame, 50 kN (5,000 kgf) Capacity, Single Speed 1.25, 1.5 and 2.5 mm per minute
EKE 12001:  Gun Metal Mould – Zinc Plated 150 mm ID x 175 mm high
EKE 12002:  Gun Metal Perforated Base Plate – for EKE 12001 Mould
EKE 12003:  Gun Metal Extension Collar – 150 mm ID 50 mm high
EKE 12004:  Penetration Piston, 50 mm face dia.
EKE 12005:  Adjustable Bracket, for Penetration Dial Gauge
EKE 12006:  Circular Metal Space Disc, with detachable handle, 148 mm dia. x 47.7 mm high
EKE 12007:  Annular Metal Weight, 2.5 kg, 147 mm dia. with 53 mm dia. slot
EKE 12008:  Slotted Metal Weight, 2.5 kg, 147 mm dia. with 53 mm dia. slot
EKE 12009:  Perforated Plate, 148 mm dia. with adjustable stem and lock nut
EKE 12010:  Metal Tripod , for Dial Gauge
EKE 12011:  Cutting Collar
EKE 11002:  Rammer , 2.6 kg, 310 mm controlled drop
EKE 11102:  Rammer , 4.9 kg, 450 mm controlled drop
EKE 274:      Proving Ring, Capacity 50 kN
EKE 072:      Dial Gauge 25 mm travel, 0.01 mm least count


CBR Test Machine With Load Ring
Ref. Standards: EN 13286-47: BS 1377:4; ASTM D1883; AASHTO T193; NF P94-078; UNI CNR 10009

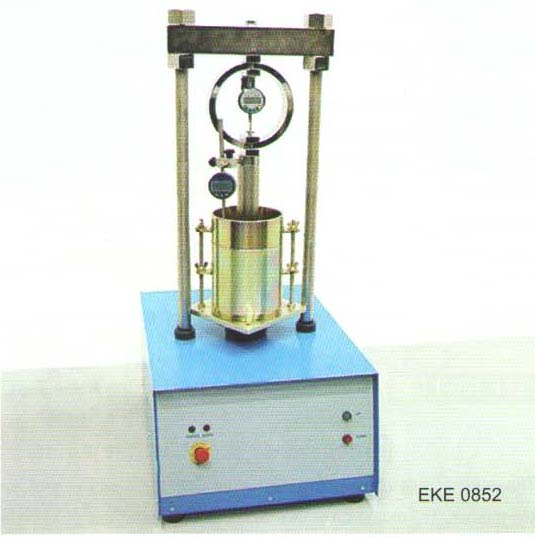

EKE 0852:

CBR Test Machine With Load Ring , 50 kN Capacity, 220-240 V 50+60 Hz

The EKE 0852 is designed for performing laboratory evaluation of the CBR value of highways sub bases and subgrade and for the determination of strength of cohesive materials which have maximum particles sizes less than 19 mm (3/4”)

The EKE 0852 is designed to load the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals.

The machine is designed to be mounted on a suitable bench and  comprise of a robust and compact two column frame with adjustable upper cross beam. The frame has 50 kN Capacity. Two test speed are provided 1.0 mm/min for BS and 1.27 mm/min for ASTM/EN/AASHTO tests. This main feature allows the user to perform tests complying to BS or ASTM/EN/AASHTO standards with the same machine. Loading and Unloading are down from the front panel by UP/DOWN buttons. Unloading speed is adjusted 5 mm/min for easy re-testing

The CBR Test Machine is supplied complete with ;
•    Loading Ring, 50 kN
•    Digital Gauge with Connection Part, 25 x 0.01 mm
•    Penetration Piston


CBR Machine With Digital Readout Unit.
Rec. Standard : EN 13286-47; BS 1377:4; ASTM D 1883; AASHTO T 193; NF P94-078; UNI NCR 10009

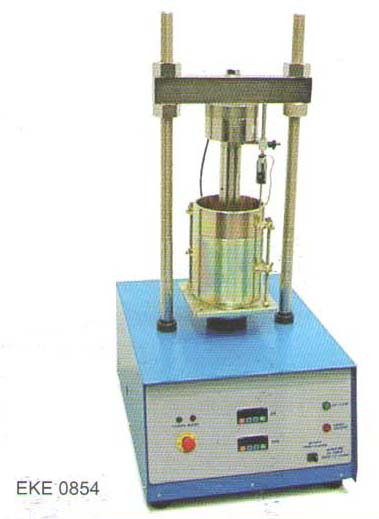

EKE 0854:

CBR Machine With Digital Readout Unit, 50 kN Capacity 220-240 V 50-60 Hz

The EKE 0854 is designed for performing laboratory evaluation of the CBR value of highway sub-base and sub-grade and for the determination of strength of cohesive materials which have maximum particle sizes less than 19 mm (3/4” )

The EKE 0854 is designed to load the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals. The machine has 2 digital  readout units for load and displacement.

The machine is designed to be mounted on a suitable bench and comprises of a robust and compact two column frame with adjustable upper cross beam. The frame is 50 kN capacity , two test speeds are provided 1.0 mm/min for BS and 1.27 mm/min for ASTM/EN/AASHTO tests. This main feature allows the user to perform tests complying BS or ASTM/EN/AASHTO  standards with the same machine. Loading and unloading  are down from the front panel by UP/DOWN buttons. Unloading speed is adjusted 5 mm/min for easy re-testing.

The CBR test machine is supplied complete with;
•    Load Cell, 50 kN capacity
•    Linear Potentiometric Displacement Transducer with Connection Part, 25 x 0.001 mm
•    Penetration Piston

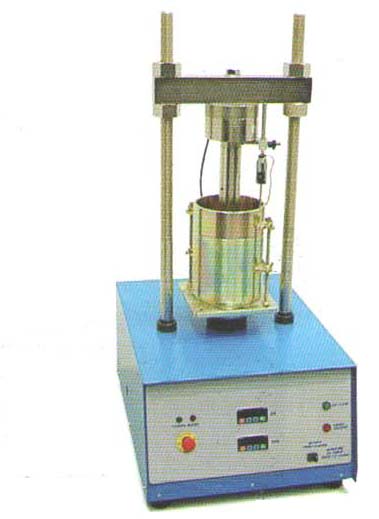

CBR Machine With Digital Readout Unit. 110 Volt 50 Hz
Rec. Standard : EN 13286-47; BS 1377:4; ASTM D 1883; AASHTO T 193; NF P94-078; UNI NCR 10009

EKE 0854/110:

CBR Machine With Digital Readout Unit, 50 kN Capacity 110 60 Hz

The EKE 0854/110 is designed for performing laboratory evaluation of the CBR value of highway sub-base and sub-grade and for the determination of strength of cohesive materials which have maximum particle sizes less than 19 mm (3/4” )

The EKE 0854/110 is designed to load the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals. The machine has 2 digital  readout units for load and displacement.

The machine is designed to be mounted on a suitable bench and comprises of a robust and compact two column frame with adjustable upper cross beam. The frame is 50 kN capacity , two test speeds are provided 1.0 mm/min for BS and 1.27 mm/min for ASTM/EN/AASHTO tests. This main feature allows the user to perform tests complying BS or ASTM/EN/AASHTO  standards with the same machine. Loading and unloading  are down from the front panel by UP/DOWN buttons. Unloading speed is adjusted 5 mm/min for easy re-testing.

The CBR test machine is supplied complete with;
•    Load Cell, 50 kN capacity
•    Linear Potentiometric Displacement Transducer with Connection Part, 25 x 0.001 mm
•    Penetration Piston

Automatic CBR Test Machine
Rec. Standard : EN 13286-47; BS 1377:4; ASTM D 1883; AASHTO T 193; NF P94-078; UNI NCR 10009

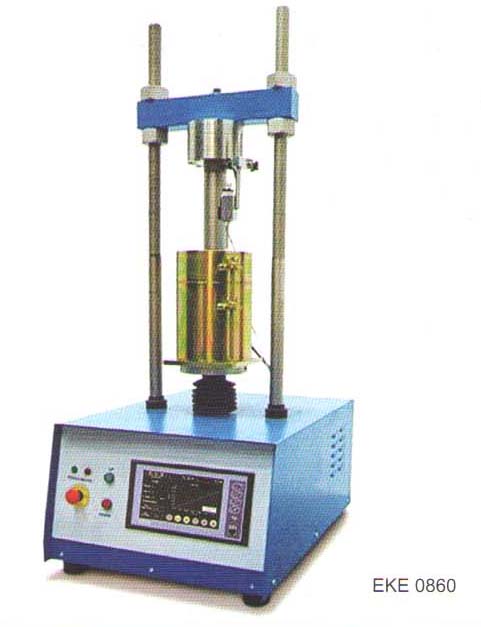

EKE 0860:

Automatic CBR Test Machine, 220-240 Volt, 50-60 Hz

The EKE 0860 Automatic CBR Test Machine is designed for performing  laboratory evaluation of the CBR value of highway , sub-bases and sub-grade, and determination of the strength of cohesive materials which have maximum particle sizes less than 19 m (3/4”).

The EKE 0860 is composed of a robust and compact two column frame with adjustable upper crossbeam driven by an electromechanical ram with a maximum capacity if 50 kN and a data acquisition and processing system.

The EKE 0860 is designed to load the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals. The ram speed can be set between 0.5 mm/min to 5 mm/min by using the Digital Readout Unit. The main feature allows the user to perform tests complying to BS , EN, ASTM or AASHTO standards with the same machine.

Rapid adjustment of the platen is also provided by up and down buttons which are located on the front panel of the machine. The ENKAY 0860 is supplied complete with a 50 kN load cell, penetration piston, linear potentiometric displacement transducer (25 mm x 0.001 mm), Computer Software and connection cable. PC is Optional.

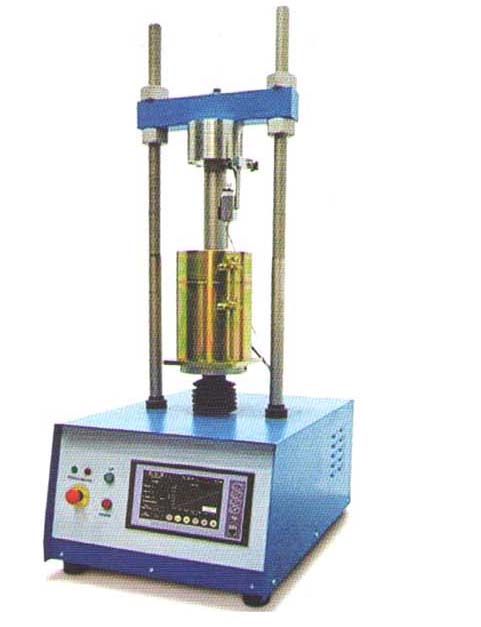

Automatic CBR Test Machine, 110 Volt 50 Hz
Rec. Standard : EN 13286-47; BS 1377:4; ASTM D 1883; AASHTO T 193; NF P94-078; UNI NCR 10009

EKE 0860/110:

Automatic CBR Test Machine, 110 Volt, 60 Hz

The EKE 0860/110 Automatic CBR Test Machine is designed for performing  laboratory evaluation of the CBR value of highway , sub-bases and sub-grade, and determination of the strength of cohesive materials which have maximum particle sizes less than 19 m (3/4”).

The EKE 0860/110 is composed of a robust and compact two column frame with adjustable upper crossbeam driven by an electromechanical ram with a maximum capacity if 50 kN and a data acquisition and processing system.

The EKE 0860/110 is designed to load the penetration piston into the soil sample at a constant rate to measure the applied load and piston penetration at predetermined intervals. The ram speed can be set between 0.5 mm/min to 5 mm/min by using the Digital Readout Unit. The main feature allows the user to perform tests complying to BS , EN, ASTM or AASHTO standards with the same machine.

Rapid adjustment of the platen is also provided by up and down buttons which are located on the front panel of the machine. The ENKAY 0860/110 is supplied complete with a 50 kN load cell, penetration piston, linear potentiometric displacement transducer (25 mm x 0.001 mm), Computer Software and connection cable. PC is Optional.

CBR Mould & Accessories  ASTM
Ref. Standard : ASTM D1883; AASHTO T193

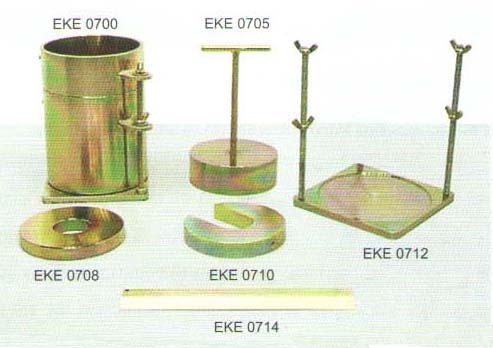

EKE 0700:

EKE 0700: CBR Mould ASTM/AASHTO, plated steel mould body with 6” (152.4 mm) dia. x 7” (177.8 mm) height, supplied complete with extension collar and perforated base plate.
EKE 0705: Spacer Disc with T handle ASTM , 150.8 mm dia. x 61.4 mm height.
EKE 0708: Annular Surcharge Weight ASTM , 2.27 kg
EKE 0710: Slotted Surcharge Weight ASTM , 2.27 kg
EKE 0712: CBR Solid Base Plate ASTM
EKE 0714: Straight Edge 300 x 30 x 5 mm
EKE 0716: Filter Paper for CBR Test No: 5 x 150 mm dia. ASTM (Pack of 100)
EKE 0718: Filter Screen 144 mm dia. 150 µm mesh ASTM

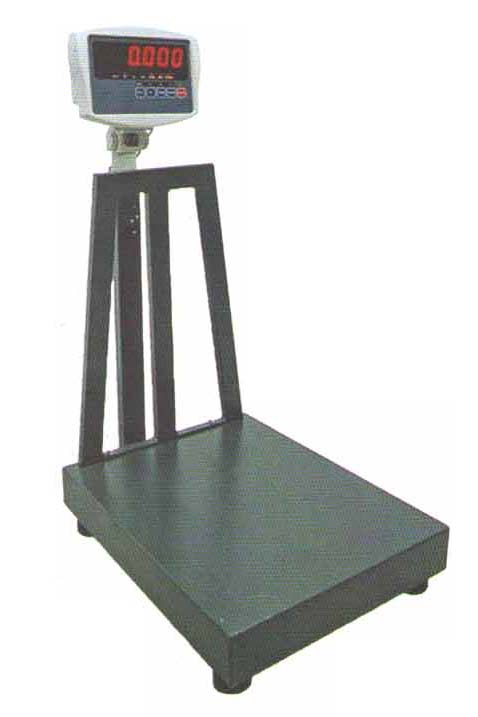

Digital Platform Scale 150 kg x 10 g

EKE 0705:

The EKE Digital Platform Scale provides a reliable macro scale weighting facility up to 150 kg. maximum capacity with 5 g readability values, for fast and economical weight measurements. The balance are designed to perform precise and accurate measurements under the heaviest industrial conditions.

•    Capacity : 150 kg
•    Readability : 10 g
•    Platform Size : 500 x 600 mm
•    Dimensions : 550 x 650 x 400 mm
•    Weight (Approx.) : 30 kg
•    Additional Power Supply : Yes

Digital Platform Scale 150 kg x 50 g

EKE 0708:

The EKE Digital Platform Scale provides a reliable macro scale weighting facility up to 150 kg. maximum capacity with 5 g readability values, for fast and economical weight measurements. The balance are designed to perform precise and accurate measurements under the heaviest industrial conditions.

•    Capacity : 150 kg
•    Readability : 50 g
•    Platform Size : 780 x 1200 mm
•    Dimensions : 550 x 650 x 400 mm
•    Weight (Approx.) : 30 kg
•    Additional Power Supply : Yes

Swell Plate For CBR Swelling Test
Ref. Standard: EN 13286-47; ASTM D1183; AASHTO T193; BS 13774:4, 1924:2

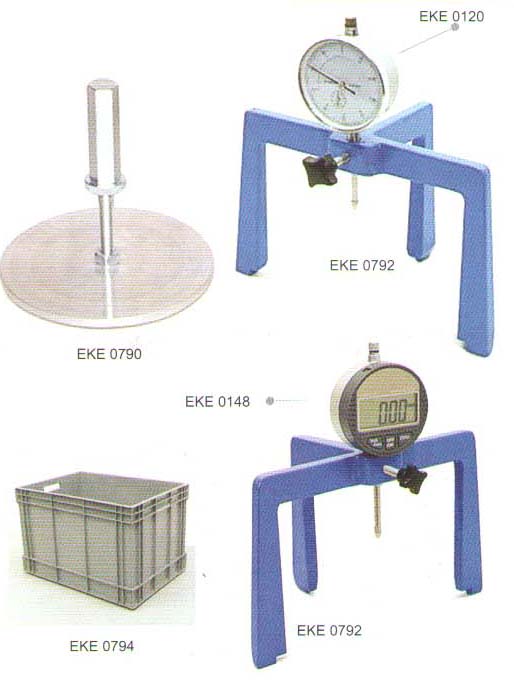

EKE 0790:

This equipment is used to monitor the swelling by placing it on top of the soil sample. This swell test consists of  perforated plate (Swell Plate) with adjustable stem, dial gauge and dial gauge tripod for mounting swell dial gauge in position on CBR Mould Collar.

The preferred gauge and each one other equipment should be ordered separately for swelling test.

EKE 0790: Swell Plate for CBR Swelling Test
EKE 0792: Tripod for CBR Swelling Test
EKE 0120: Analog Gauge 30 mm travel x 0.01 mm division
EKE 0148: Digital Dial Gauge 25 x 0.01 mm, LCD Display Data Output
EKE 0152: Digital Dial Gauge 12.7  x 0.001 mm, LCD Display Data Output
EKE 0794: CBR Soaking Tank (6 Pcs. CBR Mould Capacity)
