RAIL AND SLEEPER BENDING TEST MACHINE/ SERVO HYDRAULIC FATIGUE TESTING MACHINE

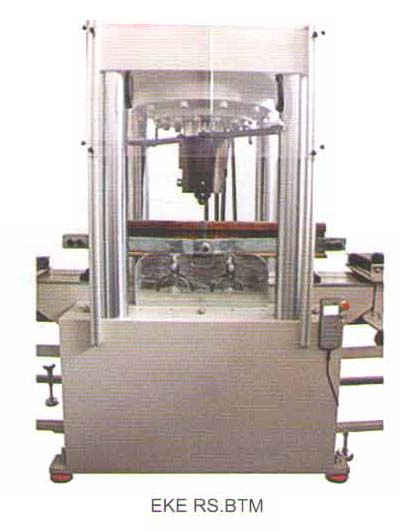

Rail And Sleeper Bending Test Machine

EKE RS.BTM:

Rail and sleepers tests are to make sure that the rails as well as sleepers are error- free to support the rapidly developing technology  where fast trains are taking place of old type trains. Including TCDD in our country, all over the world, bending and breaking tests are applied on rails. In these tests load controlled or deformation controlled load increased up to the breaking point of rail to determine the appropriateness or inappropriateness of rail.

A rigid 4 columns body with double safety system can perform the complete test very smoothly. Dual camera system is installed inside the cabin to observe breaking moment of rail. Full system is designed to operate by single person or two with the help of Rail and sleeper carriage.

Rail bending test machines with capacity of 2000 kN , 2500 kN and 3000 kN can easily provide load class ± 0.5% . the important thing is, the bending test of traverse can also perform on same machine with same accuracy but in between 120 kN to 450 kN. We have achieved this feature first time in the world.

This machine has some advanced features like, Repetitive (Cyclic) Loading, Controlled Unloading and Can Hold on Constant Load. System can perform  Load Controlled and Position Controlled tests with 1µm accuracy. System has a control unit with 1 kHz which allows SSI type connections. Servo valve to control piston, Load accuracy in ± 180,000 steps.

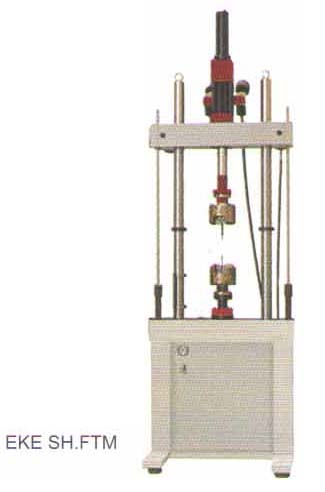

Servo Hydraulic Fatigue Testing Machine

EKE SH.FTM:

ENKAY Servo Hydraulic Fatigue Testing Machine  has been designed for various fatigue tests on different materials such as plastic, rubber, steel, fiber and more. Fatigue test can be carried out using this machine with high frequency and accuracy. The Fatigue test system is used in the steel, plastic, medical, automobile, furniture and many other industries.

 Technical Specifications:
-    Moog Two Stage Dynamic Servo Valve with high flow rate and high step response
-    Dynamic Controller; 5 kHz Data Acquisition or test Controller; 10 kHz data  Acquisition
-    LCD Remote Control Console with Emergency Stop Button
-    Test & Motion Software with Dyna Pack or Test Software for all Dynamic tests.
-    Fatigue – Rated Load Cell accuracy class ± 0.5%
-    Non – contact MTS position sensor, having accuracy 0.001 mm
-    Accumulators for the best dynamic performance
-    Position stroke 300 mm (Different Stroke range available on request)
-    Double acting , Low – Friction position
-    Capacities available : 50 kN – 100 kN, 300 kN – 500 kN
-    Hydraulic , Pneumatic and Mechanical Grips are available on request
-    Optional Video – Extensometer are employed in the system
