    PROVING RINGS

    Compression & Tension Proving Rings

    Book Now Your Machine

    Compression Proving Ring- 0.25 KN

    Proving Ring
    Compression Proving Ring- 0.25 kN

    EKE 261:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 261
    Capacity 0.25 kN (25 kgf)
    Design Sensitivity   0.21 N/Div
    Overall Height  222 mm
    Approximate Weight 1.00 kg



    Compression Proving Ring- 0.5 KN

    Proving Ring
    Compression Proving Ring- 0.5 kN

    EKE 262:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 262
    Capacity 0.5 kN (50 kgf)
    Design Sensitivity   0.42 N/Div
    Overall Height  222 mm
    Approximate Weight  1.00 kg

    Compression Proving Ring- 1 KN

    Proving Ring
    Compression Proving Ring- 1 kN

    EKE 263:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 263
    Capacity 1 kN (100 kgf)
    Design Sensitivity  0.83 N/Div
    Overall Height  222 mm
    Approximate Weight 1.10 kg

    Compression Proving Ring- 2 KN

    Proving Ring
    Compression Proving Ring- 2 kN

    EKE 264:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 264
    Capacity 2 kN (200 kgf)
    Design Sensitivity  1.15 N/Div
    Overall Height  222 mm
    Approximate Weight 1.20 kg

    Compression Proving Ring- 2.5 KN

    Proving Ring
    Compression Proving Ring- 2.5 kN

    EKE 265:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 265
    Capacity 2.5 kN (250 kgf)
    Design Sensitivity   2.1 N/Div
    Overall Height  222 mm
    Approximate Weight 1.30 kg

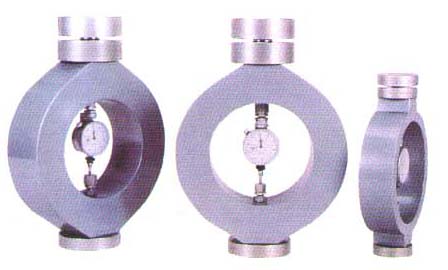

    Compression Proving Ring- 4 KN

    Proving Ring
    Compression Proving Ring- 4 kN

    EKE 266:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 266
    Capacity  4 kN (400 kgf)
    Design Sensitivity   3.3 N/Div
    Overall Height  222 mm
    Approximate Weight 1.40 kg

    Compression Proving Ring- 5 KN

    Proving Ring
    Compression Proving Ring- 5 kN

    EKE 267:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 267
    Capacity 5 kN (500 kgf)
    Design Sensitivity  4.5 N/Div
    Overall Height  222 mm
    Approximate Weight 1.50 kg

    Compression Proving Ring- 10 KN

    Proving Ring
    Compression Proving Ring- 10 kN

    EKE 268:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 268
    Capacity 10 kN (1,000 kgf)
    Design Sensitivity  10 N/Div
    Overall Height  222 mm
    Approximate Weight 1.70 kg

    Compression Proving Ring- 15 KN

    Proving Ring
    Compression Proving Ring- 15 kN

    EKE 269:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 269
    Capacity 15 kN (1,500 kgf)
    Design Sensitivity   17 N/Div
    Overall Height  222 mm
    Approximate Weight 3.40 kg

    Compression Proving Ring- 20 KN

    Proving Ring
    Compression Proving Ring- 20 kN

    EKE 270:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 270
    Capacity 20 kN (2,000 kgf)
    Design Sensitivity  22 N/Div
    Overall Height  222 mm
    Approximate Weight 3.50 kg

    Compression Proving Ring- 25 KN

    Proving Ring
    Compression Proving Ring- 25 kN

    EKE 271:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 271
    Capacity 25 kN (2,500 kgf)
    Design Sensitivity  28 N/Div
    Overall Height  222 mm
    Approximate Weight  3.60 kg

    Compression Proving Ring- 30 KN

    Proving Ring
    Compression Proving Ring- 30 kN

    EKE 272:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 272
    Capacity 30 kN (3,000 kgf)
    Design Sensitivity  33 N/Div
    Overall Height  222 mm
    Approximate Weight 3.75 kg

    Compression Proving Ring- 40 KN

    Proving Ring
    Compression Proving Ring- 40 kN

    EKE 273:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 273
    Capacity 40 kN (4,000 kgf)
    Design Sensitivity  44 N/Div
    Overall Height  222 mm
    Approximate Weight 3.90kg

    Compression Proving Ring- 50 KN

    Proving Ring
    Compression Proving Ring- 50 kN

    EKE 274:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 274
    Capacity 50 kN (5,000 kgf)
    Design Sensitivity  56 N/Div
    Overall Height  222 mm
    Approximate Weight 4.00 kg

    Compression Proving Ring- 100 KN

    Proving Ring
    Compression Proving Ring- 100 kN

    EKE 275:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 275
    Capacity 100 kN (10,000 kgf)
    Design Sensitivity  125 N/Div
    Overall Height  222 mm
    Approximate Weight 5.00 kg

    Compression Proving Ring- 200 KN

    Proving Ring
    Compression Proving Ring- 200 kN

    EKE 276:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 276
    Capacity 200 kN ( 20,000 kgf)
    Design Sensitivity   300 N/Div
    Overall Height  286 mm
    Approximate Weight 14.00 kg

    Compression Proving Ring- 300 KN

    Proving Ring
    Compression Proving Ring- 300 kN

    EKE 277:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 277
    Capacity 300 kN ( 30,000 kgf)
    Design Sensitivity  430 N/Div
    Overall Height  286 mm
    Approximate Weight 16.00 kg

    Compression Proving Ring- 500 KN

    Proving Ring
    Compression Proving Ring- 500 kN

    EKE 278:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 278
    Capacity 500 kN (50,000 kgf)
    Design Sensitivity  833 N/Div
    Overall Height  286 mm
    Approximate Weight 18.00 kg

    Compression Proving Ring- 1000 KN

    Proving Ring
    Compression Proving Ring- 1000 kN

    EKE 279:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 279
    Capacity 1000 kN (100,000 kgf)
    Design Sensitivity  2,500 N/Div
    Overall Height  286 mm
    Approximate Weight 24.00 kg

    Compression Proving Ring- 2000 KN

    Proving Ring
    Compression Proving Ring- 2000 kN

    EKE 280:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 280
    Capacity 2000 kN (200,000 kgf)
    Design Sensitivity  5,000 N/Div
    Overall Height  286 mm
    Approximate Weight 25.00 kg

    Compression Proving Ring- 3000 KN

    Proving Ring
    Compression Proving Ring- 3000 kN

    EKE 281:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 281
    Capacity 3000 kN (300,000kgf)
    Design Sensitivity   6,000 N/Div
    Overall Height  340 mm
    Approximate Weight 34.00 kg

    Compression And Tension Proving Rings 0.5kN

    Proving Ring
    Compression And Tension Proving Ring- 0.5 kN

    EKE 282:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 282
    Capacity  0.5 kN (50 kgf)
    Design Sensitivity  1 N/Div
    Overall Height  222 mm
    Approximate Weight 1.10 kg

    Compression And Tension Proving Rings 1kN

    Proving Ring
    Compression And Tension Proving Ring- 1 kN

    EKE 283:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 283
    Capacity 1 kN (100 kgf)
    Design Sensitivity  2 N/Div
    Overall Height  222 mm
    Approximate Weight 1.20 kg

    Compression And Tension Proving Rings 2kN

    Proving Ring
    Compression And Tension Proving Ring- 2 kN

    EKE 284:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 284
    Capacity  2 kN (200 kgf)
    Design Sensitivity  4 N/Div
    Overall Height  222 mm
    Approximate Weight 1.40 kg

    Compression And Tension Proving Rings 2.5kN

    Proving Ring
    Compression And Tension Proving Ring- 2.5 kN

    EKE 285:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 285
    Capacity 2.5 kN (250 kgf)
    Design Sensitivity  5 N/Div
    Overall Height  222 mm
    Approximate Weight 1.50 kg

    Compression And Tension Proving Rings 3kN

    Proving Ring
    Compression And Tension Proving Ring- 3 kN

    EKE 286:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 286
    Capacity 3 kN (300 kgf)
    Design Sensitivity  6 N/Div
    Overall Height  222 mm
    Approximate Weight 1.60 kg

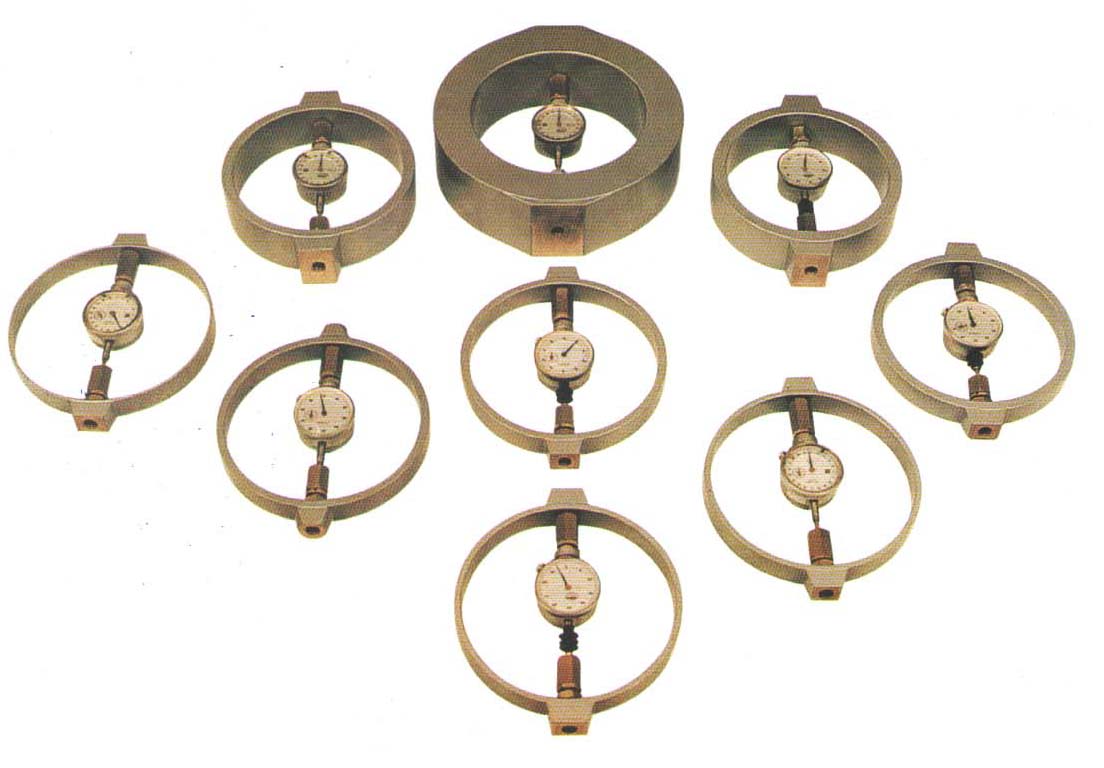

    Compression And Tension Proving Rings 5kN

    Proving Ring
    Compression And Tension Proving Ring- 5 kN

    EKE 287:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 287
    Capacity 5 kN (500 kgf)
    Design Sensitivity  10 N/Div
    Overall Height  222 mm
    Approximate Weight 1.70 kg

    Compression And Tension Proving Rings 10kN

    Proving Ring
    Compression And Tension Proving Ring- 10 kN

    EKE 288:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 288
    Capacity 10 kN (1,000 kgf)
    Design Sensitivity   20 N/Div
    Overall Height  267 mm
    Approximate Weight 4.50 kg

    Compression And Tension Proving Rings 20kN

    Proving Ring
    Compression And Tension Proving Ring- 20 kN

    EKE 289:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 289
    Capacity 20 kN (2,000 kgf)
    Design Sensitivity  40 N/Div
    Overall Height  267 mm
    Approximate Weight 5.00 kg



    Compression And Tension Proving Rings 50kN

    Proving Ring
    Compression And Tension Proving Ring- 50 kN

    EKE 290:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 290
    Capacity 50 kN ( 5,000 kgf)
    Design Sensitivity  100 N/Div
    Overall Height  267 mm
    Approximate Weight 5.75 kg

    Compression And Tension Proving Rings 100kN

    Proving Ring
    Compression And Tension Proving Ring- 100 kN

    EKE 291:

    The Proving Ring are made of special steel, carefully forged to give maximum strength and machines to give high sensitivity commensurate with stability, ensuring long life and accuracy.

    Technical Specifications  EKE 291
    Capacity 100 kN ( 10,000 kgf)
    Design Sensitivity  250 N/Div
    Overall Height  267 mm
    Approximate Weight 6.10 kg
