PLUMMET BALANCE/ LOAD FRAMES

Plummet Balance
Ref. Standard  : IS:2720 (Part 4)
EKE 057:

Features
•    Simple Operation
•    Sinking of Plummet to right depth is all that is required before taking a reading
•    Grain Size distribution curve for the entire range of particles size is possible. which is not with pipette method where only specific sizes of particles can be determined
•    Eliminates computation involved Hydrometer Method
•    Percentage of soil in suspension can be can be directly read
•    Grain Size distribution curve can be directly plotted as experiment progress

The  Plummet Balance consists of a vertical rod mounted on a heavy base with leveling screws. A light weight pointer with pointed steel pivots, turning in jeweled bearings moves over a scale graduated in parentage units 0-100 in 2% divisions. The balance moves up and down over the vertical rod with the help of rack and pinion arrangement. A chart showing the relationship between K and Temp. of suspension of soils of varying specific gravity from 2.4 to 2.8 to help solve stokes equation is provided . Supplied complete with one Perspex plummet , one measuring jar, one rider weight for zero adjustment and one rider weight for adjusting the pointer to 100%

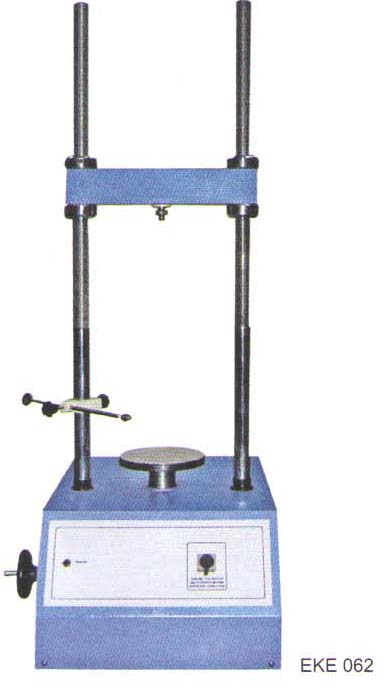

Load Frame, Motorized 3 Speeds, 50 kN (5,000 kgf)
EKE 062:

Two pillar type Light weight and Sturdy in construction ideal for using in mobile laboratory also. This load frame is designed for conducting unconfined, triaxial , CBR and other routine tests.
Loading system comprises of a screw jack with a detachable handle. The lower platen moves up and down .The top bracket is adjustable for vertical clearance and has an adapter for connecting standard proving rings or load cells. A dial gauge mounting bracket is provided on one of the two pillars. Rate of strain : 3 (1.25, 1.50, 2.50 mm/min.)
Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply

Technical Specifications:
•    Capacity : 50 kN (5,000 kg)
•    Types of operation : Electrical Cum Manual
•    Rate of Strain mm/min. : Three Rates 2.25 , 1.5 & 2.5
•    Horizontal Clearance : 265 mm
•    Vertical Clearance : 700 mm
•    Maximum Platen dia. : 157 mm
•    Maximum Platen Travel : 100 mm
•    Specimen Dia. : 38 to 100 mm 150 mm
•    Application : Triaxial CBR & Unconfined Compression


Load Frame,Hand Operated 50kN (5000kgf)

EKE 063:

• Portable, light weight and sturdy
• Can be used in the field and Mobile laboratory
• Useful for CBR and Triaxial

The unit is designed for a maximum load of 50kN and consist of a two speed screw jack, mounted on a frame with identical top and base channel piece so that the unit can be placed either way up and the device can be used for loading from above or form below, wichever is convenient.

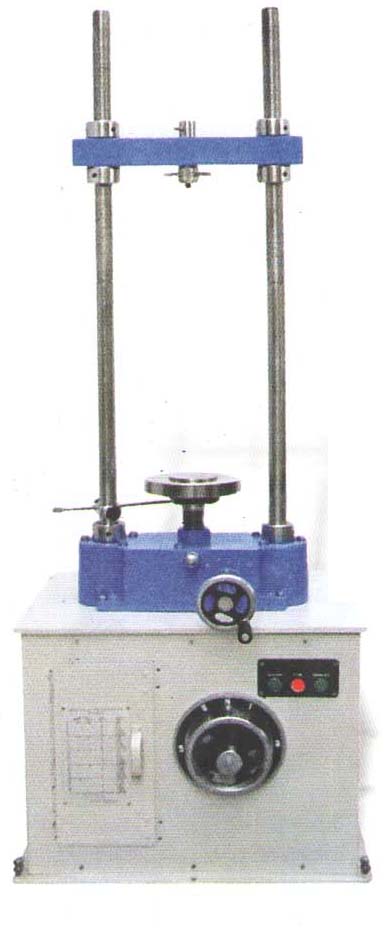

Load Frame, Motorized 12 Speeds, 50 kN (5,000 kgf)
EKE 064-1:
Features:-
 Two pillar type
•    Detachable Frame
•    Enclosed Motor and Gear system
•    LED Lamps indicating direction of motion
•    Speed Chart
•    Operational ease
•    Useful for Triaxial and CBR Tests

The Load Frame consists of a cabinet which houses the gear system and motor with sturdy angle iron frame. The loading is done through the bottom loading platen, which is carried on a lead screw , which advances upwards. The top load bracket , which slides over two upright pillars, can be positioned at any desired height and locked. It carries a screw adapter for standard proving rings.

The loading part of the unit is detachable from the main unit for ease of transport and to avoid damage to the tension rods.

Rats of strain : 12 (between 0.0064 mm/min and 1.25 mm/min.)

Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply

Load Frame, Motorized 6 Speeds, 50 kN (5,000 kgf)
EKE 064-SI:

Two pillar type:-
•    Enclosed Motor and Gear system
•    LED Lamps indicating direction of motion
•    Speed Chart
•    Operational ease
•    Useful for Triaxial and CBR Tests

The load frame consists of a cabinet which houses the gear system and motor with sturdy angle iron frame. The loading is done through the bottom leading platen, which is carried on a lead screw , which advances upwards. The top load bracket, which slides over two upright pillars , can be positioned at any desired height and locked. It carries a screw adapter for standard proving rings.
Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply.

Load Frame, Motorized 12 Speeds, 200 kN (20,000 kgf)
EKE 065:

•    Two Pillar Type
•    Enclosed Motor and Gear system
•    Jewel lamps indicating direction of motion
•    Operational ease

The Load Frame consists of a cabinet which houses the gear system and motor with sturdy angle iron frame. The loading is done through the bottom loading platen, which is carried on a lead screw which advances upwards. The top load bracket, which slides over two upright pillars, can be positioned at any desired height and locked. It carries a screw adaptor for standard Proving Rings or Load Cells.

The loading part of the unit is detachable from the main unit for ease of transport and to avoid damage to the tension rods.

Rates of Strain: 12 (between 1.25 and 0.00064 mm/min)
Suitable for operation on 220 V, 50 Hz

Load Frame, Motorized , 500 kN (50,000 kgf)
EKE 066

    Two Pillar Type
•    Enclosed Motor and Gear system
•    Jewel lamps indicating direction of motion
•    Operational ease

The load frame is designed for conducting triaxial shear tests on rock specimens, but it is used can be extended to any field where there is a requirement of the rates of strain of this load frame to be applied. This load frame gives a choice of twelve rats of strain from a maximum of 5 mm/min to 0.000125 mm/min

It consists of a cabinet housing the electric motor, reduction gear and the turret gear box. Two pillars are fitted on the base over the cabinet . The load is applied by advancement of a lead screw. A suitable adapter is provided for fixing a 500 kN capacity proving ring which is supplied at extra cost. This load frame has a platen of about 25 cm dia. to house the High Pressure Triaxial Cell for testing rock specimens.

Suitable for operation on 3 Phase ,  415 V, AC Supply
