PERMEABILITY(NEW MODEL)/ PERMEABILITY & DISPERSIBILITY(IN-SITU)

Constant Head Permeability Sets
Ref. Standard : BS 1377:5

EKE 1300:

EKE 1300: Constant Head Permeability Set for Φ80 mm cell
EKE 1301: Constant Head Permeability Set for Φ120 mm cell
EKE 1302: Constant Head Permeability  cell , 80 mm dia.
EKE 1303: Constant Head Permeability  cell , 120 mm dia.

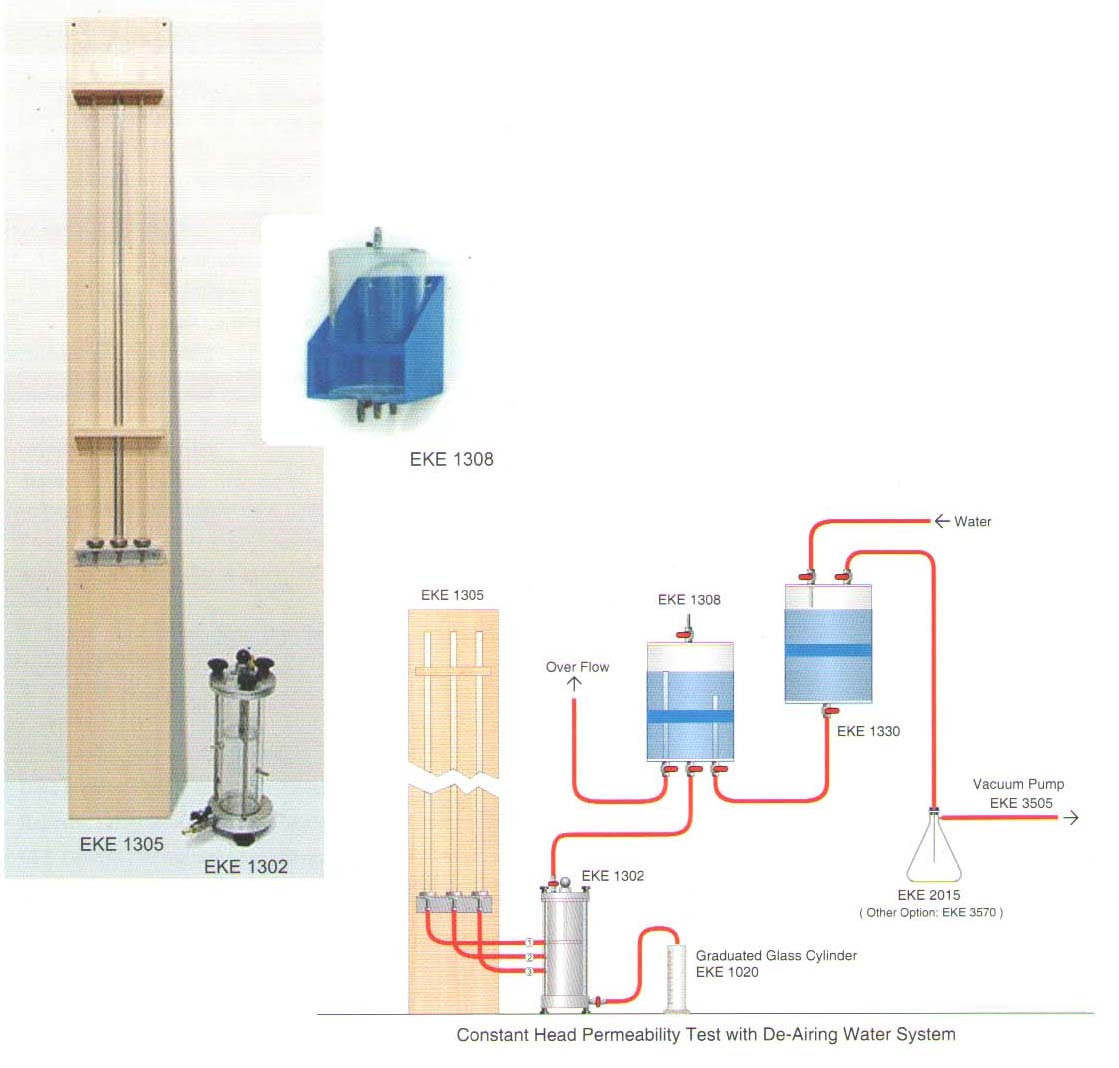

EKE 1305: Wooden Stand with 3 Manometer Tubes
EKE 1308: Constant Level Water Tank, 7 Litter
EKE 0645: Tamping Rod Φ 8 x 300 mm

The EKE 1300 and 1301 Constant Head Permeability Set are used to study the behavior or soil, relatively coarse- grained soil such as standard gravel, in its natural conditions with respect to  water flow.

Two Models are available according to cell dimensions, Three cells have an acrylic glass body with 3 pressure points at different level.

EKE 105 stand is fitted with 3 glass manometer tubes each being 1000 mm long

EKE 1308 Constant Level Tank 7 L, made of transparent plastic, is used to provide constant water level in the manometer tubes.

Optional Equipment For De- Airing Water and Tamping Rod Should be ordered separately

The Constant Head Permeability Set is Supplied with:
•    Φ80 mm or 120 mm Permeability Cell with Pressure Points at 3 different levels and 2 Pcs. Wire Gauze (fit for the preferred cell dia.)
•    Wooden Stand with 3 manometer tubes
•    3 m Hose

Falling Head Permeability Sets

EKE 1320:

EKE 1322: Falling Head Permeability cell 100 mm dia.

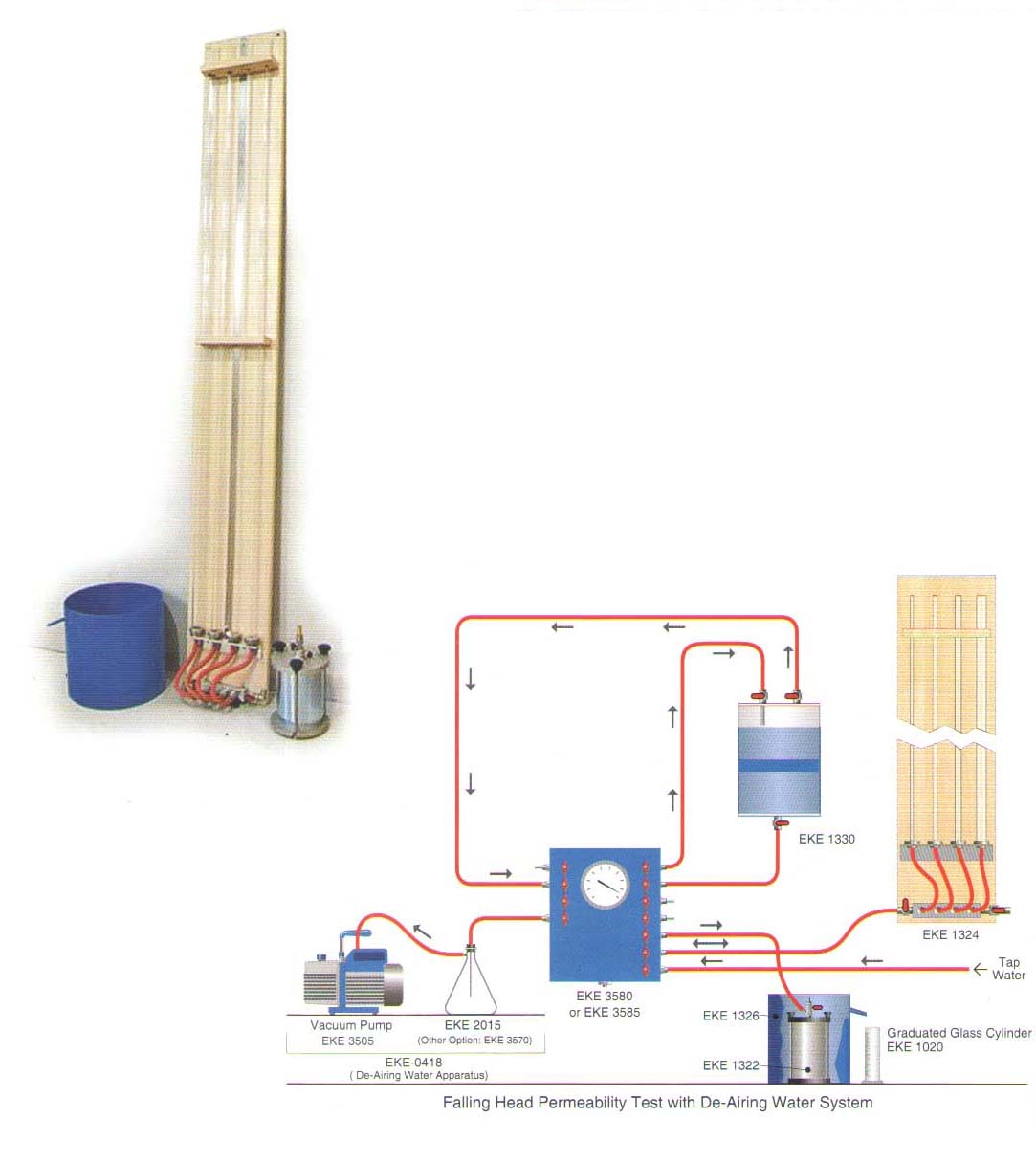

EKE 1324: Wooden Stand with 4 Manometer Tubes
EKE 1326: Soaking Reservoir Tank

The EKE 1320 Falling Head Permeability Set is used to study the behavior of soil, particularly fine-grained soils such as clay-like or silty  soils, with respect to water flow.

The EKE 1322 Falling Head Permeability Cell is manufactured from plated steel with an inside diameter of 100 mm

The EKE 1324 Wooden Stand is fitted  with 4 glass Manometer Tubes of each 1500 mm long with inside diameters of about 21 mm, 12 mm, 5 mm and 3.5 mm. all tubes have connection valves

The EKE 1326 Soaking Reservoir Tank is manufactured from plated steel with an over-flow tube and is used for containing the permeability cell during the test.

Optional Equipment For De- Airing Water and Tamping Rod Should be ordered separately

The EKE 1320 Falling Head Permeability Set is Supplied Complete With :
•    Φ100 mm Falling Head Permeability Cell
•    Wooden Stand with 4 Manometer Tubes
•    Soaking Reservoir Tank
•    3 m Hose


Permeameter Stand
Ref. Standard: ASTM D 5856

EKE 1400:

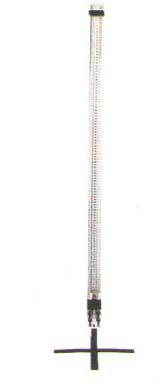

EKE 1400: Permeameter Stand , for Compacted Soil 1 Cell Capacity
EKE 14101:  Compaction  Permeameter Mould Φ 4”
EKE 14102: Compaction  Permeameter Mould Φ 6”

The EKE 1400 Permeameter Stand , when used tighter with EKE 1401 Φ 4” or EKE 1402 Φ 6”
Compaction Permeameter is used for determining the water permeability of compacted soil specimens like clay, sand, gravel etc

Proctor Penetrometer
Ref. Standard : ASTM D 1558

EKE 164:

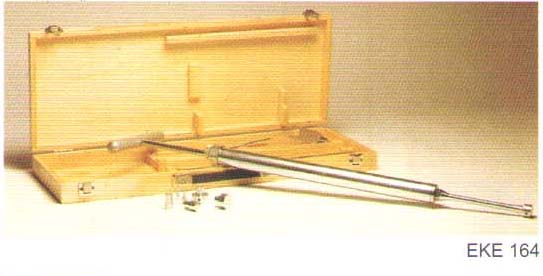

The instrument consists of a needle attached to a spring loaded  plunger , the stem of which is calibrated to read 0 to 40 kg division. Long stem is gradated at every 12.5 mm to read depth of penetration and for use with needles of larger areas. The small penetration stem is also graduation in 12.5 mm

EKE16401 Needle Point Set, Comprising one each of 0.25 , 0.5, 1, 1.5, 2, 3.5 cross sectional area and 6 cm² , and a Tommy Pin Complete as above in a carrying case.

Proctor Penetrometer (Hydraulic Type)
Ref. Standard : ASTM D 1558

EKE 165:

The instrument consists of a needle attached to a spring loaded  plunger , the stem of which is calibrated to read 0 to 40 kg division. Long stem is gradated at every 12.5 mm to read depth of penetration and for use with needles of larger areas. The small penetration stem is also graduation in 12.5 mm

The penetration pressure on the needle is conveyed through a hydraulic system to a hydraulic pressure gauge. The system permits a greater control over rate of penetration because of better  visibility of load indication on the gauge.

Comprises  hydraulic proctor needle system complete with a pressure gauge fixed at easily readable angle reading 0-70 kg x 2 kg. A set of needle points is supplied as a part of standard supply.

EKE16401 Needle Point Set, Comprising one each of 0.25 , 0.5, 1, 1.5, 2, 3.5 cross sectional area and 6 cm² , and a Tommy Pin Complete as above in a carrying case.

Pocket Penetrometer
Ref. Standard : ASTM D 1558 D2573

EKE 166:

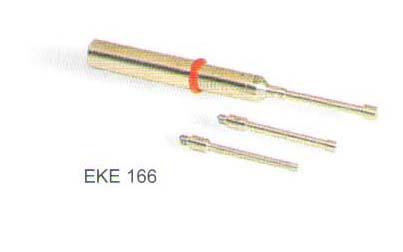

This instrument is used to estimate approximate unconfined compressive strength and the estimation to shear strength of soil. Cohesive soils can also classified in terms of consistency using this penetrometer. This is a handy and convenient instrument.

It consists of a light weight barrel assembly with a polished and ground steel loading piston plunger. A direct reading scales is engraved on the piston barrel and indicates in kg/sq. cm. A maximum load indicator ring is provided on the penetration.

Pinhole Test Apparatus
Ref. Standard : BS 1377:5; ASTM D4647

EKE 1500:

EKE 1502 PVC Tubing Φ10x8 mm 10 cm Coil

Water flowing through fine- grained soils with high sodium content makes them highly erodible.

The EKE 1500  Pinhole Test Apparatus is used for evaluating the erodibility of clay soils by flowing water through a small hole that is drilled through the compacted specimen.

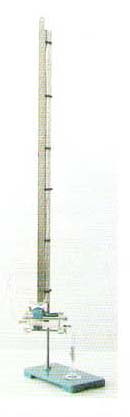

The apparatus consists of  a cylindrical metal container fitted one end with a water inlet and the other end with outlet connection, a standpipe tube with scale and a stand or support the apparatus
