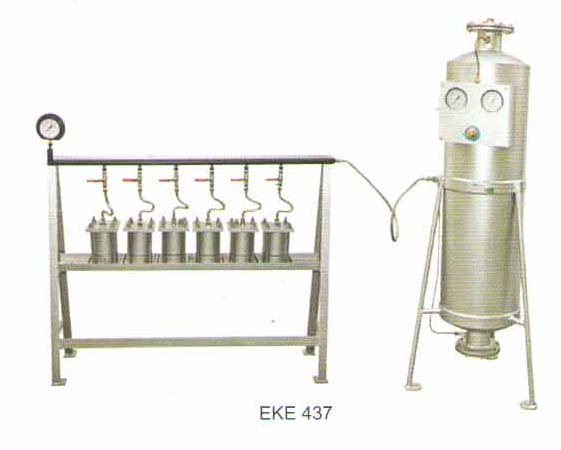

Permeability Tester – Six Cell Model
Ref. Standard IS:1727, 2645

EKE 438:

Water proofing of concrete is describable to increase in durability of concrete. Water proofness of concrete may be accomplished by using special water proof cements and admixtures.

The usefulness of the integral water proofing compounds or admixtures is established by measuring the permeability of standard mortar specimens prepaired with and without the addition of such compounds

Permeability test on pozzlana cement mortar and cement mortar with or without the addition of integral water proofing compound is carried out using a brass cell of 100 mm dia and 50 mm high. Each cell with collar is clamped in – between a base plate and a top plate with the help of tension rods and nuts. The cell assembly is mounted on the stand. The top plate is provided with an inlet and air release vent and the base plate is provided with an outlet.

A pressure chamber is fitted with a pressure regulator and a pressure gauge 0 – 10 kg/cm² indicating the chamber pressure, and a pressure gauge 0-7kg/cm² indicating the test pressure.

Whereas in six cell model, the foot pump is not provided, as this   model is intended to be used with a compressor.

Note: Standard Unit is supplied without Compressor

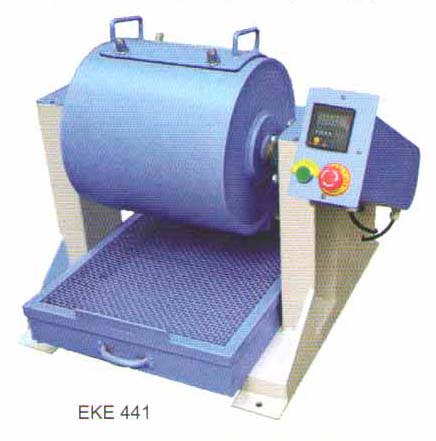

Laboratory Ball Mill

EKE 441:

Laboratory Ball Mill is primarily designed for grinding pigments. The material is ground at a specific speed by using a specific quantity of grinding media (Steel Balls) for a specific period.

The equipment is used for making the ground cement samples in the laboratory. Apart from the Cement Industry, it is also used in the Paint, Plastic, Granite and the Industries.

The equipment is provided with a revolution counter for recording the revolutions.

Recommended Balls for Ball Mill 5 kg Capacity
40 mm dia. : 43 Nos.
30 mm dia. : 67 Nos.
25 mm dia. : 10 Nos.
19 mm dia. : 71 Nos.
12.5 mm dia. : 94 Nos.

Suitable for operation on 415 V, 50 Hz, 3 Phase , AC Supply

Optional Accessories:
EKE 44101: Steel Ball 40 mm dia. (Pack of 5 kg)
EKE 44102: Steel Ball 30 mm dia. (Pack of 5 kg)
EKE 44103: Steel Ball 25 mm dia. (Pack of 5 kg)
EKE 44104: Steel Ball 19 mm dia. (Pack of 5 kg)
EKE 44105: Steel Ball 12.5 mm dia. (Pack of 5 kg)
EKE 44106: Steel Ball 20 mm dia. (Pack of 5 kg)
EKE 44118: Steel Ball 36 mm dia. (Pack of 5 kg)

Note: Liner with canopy for noise reduction also provided on request

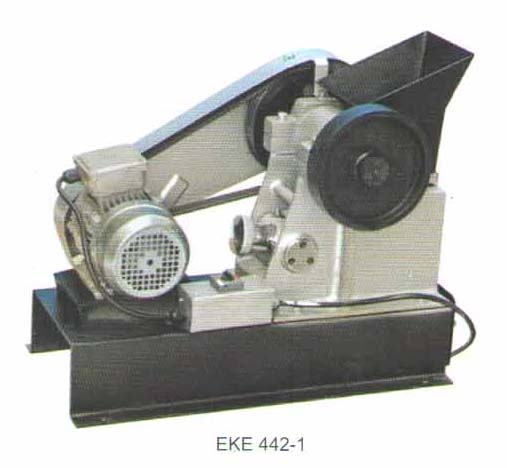

Jaw Crusher

EKE 442-1:

•    Designed to speed – up crushing of   aggregates, Ores, Mineral, Coal and   similar materials.
•    Compact and rugged for laboratory and   small  production units.
•    Manganese steel jaws adjustable upto 6  mm opening
•    250 kg material can be crushed approx. eight hours.
•    Discharging opening adjustment range : 3-10 mm
•    Supported with strong steel frame.
•    Suitable to crush any type of stone up to 45 mm
•    Suitable to cement and chemical laboratories
•    Suitable for operation with 440 Volt, Three Phase, AC Supply.

Note: EKE 442-1-SP Single Phase Jaw Crusher is also available on request

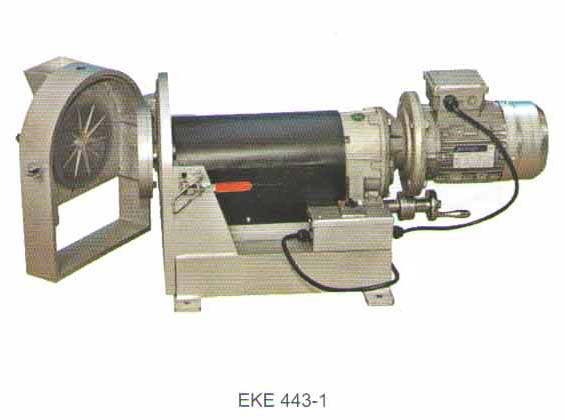

Pulveriser

EKE 443-1:

•    The new design has better aesthetics and is more compact construction
•    Designed for grinding materials to produce fine mesh samples.
•    It is suitable to grind up to 150 micron
•    The motor & gear assembly is supported by two nos of bearing blocks and mounted on sliding carriage
•    The gap of two grinding wheels can be adjusted by rotating wheel of sliding carriage
•    Ideal for use cement and chemical industries

Specifications :
-    Dia. of Grinding
-    Wheel : 175 ,,
-    Material of Grinding Wheel : High Carbon Steel having 55-60 HRC Hardness
-    Input Size of Material : < 6 mm
-    Output Size of Material : >150µ
-    Suitable for operation with 440 Volt, Three Phase, AC Supply.

Note: EKE 443-1- SP Single Phase Pulveriser is also available on request
