Automatic Digital Bitumen Penetro

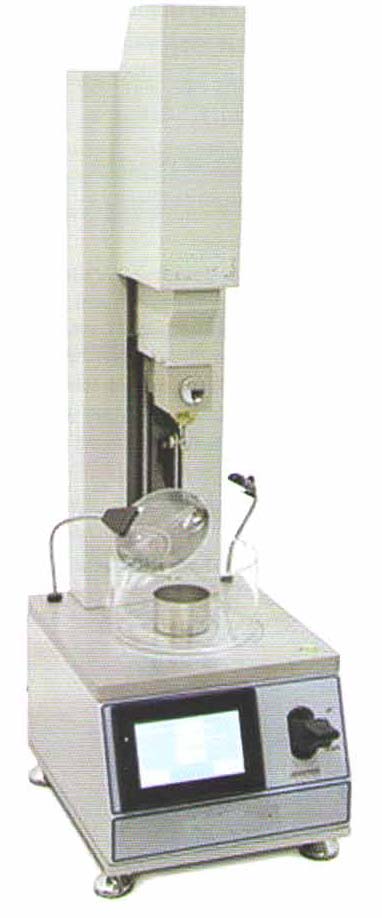

Automatic Digital Bitumen Penetrometer – 220-240 V 50-60 Hz
Ref. Standard EN 1426; ASTM D5; AASHTO T49
EKE 0126:
EKE 0121: Transfer Dish for EKE 0126
EKE 0122: Sample Cup, Φ 55 x 35 mm, Stainless Steel
EKE 0123: Sample Cup, Φ 70 x 45 mm, Stainless Steel
EKE 0124: Penetrometer Needle , 2.5 g
The EKE 0126 Automatic Electronic Penetrometer is used for determination of the needle penetration according to EN 1426, ASTM D5 and AASHTO T49 standards. The penetration depth of the needle is determined with a pulse type electronic measuring system, which is separated from the plunger during the test , this allows the free guidance of the plunger which virtually eliminates friction during the test.
Before each start of the test the measuring system automatically resets, and then the penetration needle moves down the sample by using the electric drive, the needle position can be finely adjusted by using the joystick located on the front panel. A magnifying glass and an ultra – bright LED lamp are supplied to assist the operator ; the plunger is then automatically released onto the sample and raised automatically after the testing period. The test result is displayed on the digital display. The plunger can easily be removed to calibrate its weight.
A water bath (EKE – 4000 or EKE 4050, 25 ± 0.1°C) and a thermometer (IP38, ASTM 17C or 63C) required for the test are ordered separately.
The Automatic Electronic Penetrometer is supplied complete with;
• Pnentrometer Needle, 1 Piece
• Transfer Dish
• Sample Cup, Φ 55 x 35 mm, 6 pieces , Stainless Steel
Technical Specifications:
- Measuring Range : 0.50 mm
- Resolution : 0.01 mm
- Test Load : 100 g (Plunger 97.5 g + 2.5 g penetration needle)
- Test Time : 5 seconds (Adjustable from 0.1 to 9999 sec.)
- Dimensions : 270 x 480 x 750 mm
- Weight (Approx.) : 24 kg
- Power : 75 W
