PENETRATION/ VISCOMETER

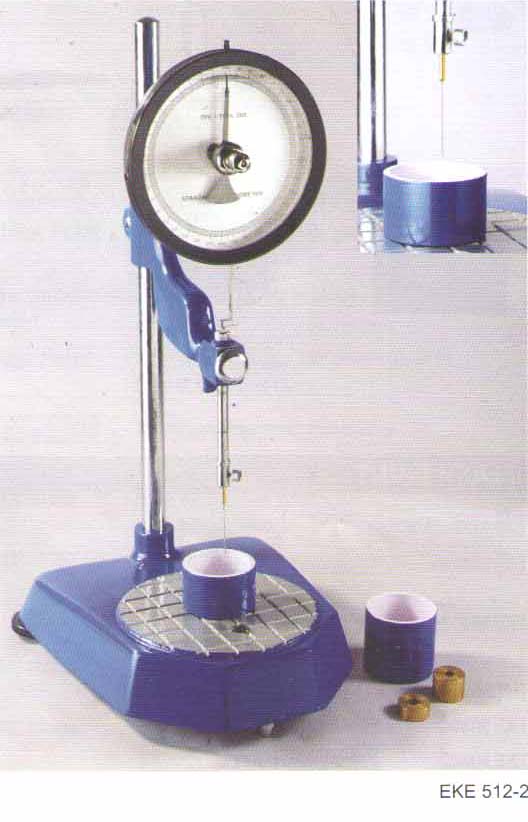

Universal Penetrometer
Ref. Standard : IS: 1448 (Part 60), IS:1203, ASTM D 5, IP 49, IP 310, BS:1377, BS:2000 (Part 49P, BS:4691, BS:4698, ASTM D937, ISO 2137, IP 50, IP 179, ASTM D217, AASHTO T49

EKE 512-2:

Penetrometer are used for testing a wide variety of materials such as grease petroleum, bitumen, tar, asphalt. Wax polish, food stuffs, rubber, cement, pharmaceutical creams and soils,
In this test, a chosen force is applied over a given area foe a know period of time and the depth of penetration or the depression made in the sample is measured in tenths of a millimeter which is expressed as a penetration number, An accurately fabricated steel base has been designed to facilitate penetration tests to be made over a wide surface area of sample, Adjustable feet are provided in the base for leveling, Upright may be rotated to permit the testing of samples immersed in a thermostat bath.
Each penetrometer is supplied with a plunger weighing 47.5 g for testing bituminous product, and  one each of 50 g and 100 g weights, excluding cone and needle.
The unit is compact with in-built timer to control duration of penetration preset in factory to 5 seconds, the instrument is provided leveling screws.

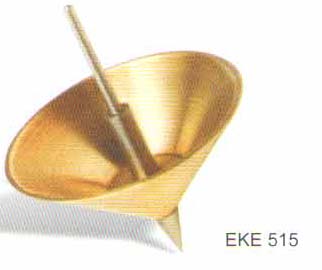

Penetration Cone
Ref. Standard : IS: 1448 (Part 60),IASTM D 937, IP 179, BS:4698, ASTM D217, IP 50, ISO 2137

EKE 515:

For empirical estimation of the consistency  of lubricating grease and petroleum. Made of brass with hardened steel tip. The stem of the cone is interchangeable with all types of ENKAY Penetrometers manufactured to close tolerances providing a unified cone and ensuring that there is no shoulder between the tip and the body
Weight 102.5 ± 0.05 g

Bitumen Penetration Kit

EKE 518:

The Equipment consist of the following replaceable parts :

EKE 51801: Penetration Needle
EKE 51802: Aluminium Sample Container , Set of Two
EKE 51803: Transfer Dish made of copper

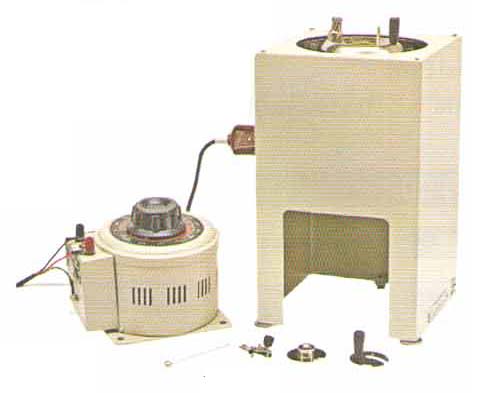

Redwood No. 1 Viscometer
Ref. Standard IP 70

EKE-526:

These instruments are for determining the viscosity of all oils , expressed in Redwood seconds at the temperatures of test as called for by  IP 70 The Redwood No.1  Viscometer consists of a heavily silver plated brass oil cup with a precision stainless steel jet assembled in a chromium plated bath fitted with a heating tube or heating element and drain cock. The bath and cup assembly is mounted on a stand with leveling feet. Each unit should be supplied complete with silver plated ball valve, spirit level with cover, thermometer clip and receiver of capacity 50ml.Suitable for operation on 220 V, 50 Hz, Single Phase.

Electrical heating, complete with dimmer stat. Used for those oils the viscosity not more than  2,000 sec.  at the test temperature Complete with EKE 52601 Redwood No.1 Viscometer cup.

Optional Extras:
EKE 52610: Thermometer IP BC, Range 0° C to 45°C
EKE 52611: Thermometer IP BC, Range 40° C to 85°C
EKE 52612: Thermometer IP BC, Range 76° C to 122°C

Spares:
EKE 52601: Redwood No. 1  Viscometer  cup, with NPL Certificate
EKE 52602: Receiving Flask

Redwood No. 2 Viscometer
Ref. Standard IP 70

EKE-528:

These instruments are for determining the viscosity of all oils , expressed in Redwood seconds at the temperatures of test as called for by  IP 70 The Redwood No.2  Viscometer consists of a heavily silver plated brass oil cup with a precision stainless steel jet assembled in a chromium plated bath fitted with a heating tube or heating element and drain cock. The bath and cup assembly is mounted on a stand with leveling feet. Each unit should be supplied complete with silver plated ball valve, spirit level with cover, thermometer clip and receiver of capacity 50ml.Suitable for operation on 220 V, 50 Hz, Single Phase.

Electrical heating, complete with dimmer stat. Used for those oils the viscosity of which exceeds 2,000 sec. Complete with EKE 52801 Redwood No.2 Viscometer cup.

Optional Extras:
EKE 52610: Thermometer IP BC, Range 0° C to 45°C
EKE 52611: Thermometer IP BC, Range 40° C to 85°C
EKE 52612: Thermometer IP BC, Range 76° C to 122°C

Spares:
EKE 52801: Redwood No. 2  Viscometer  cup, with NPL Certificate
EKE 52602: Receiving Flask

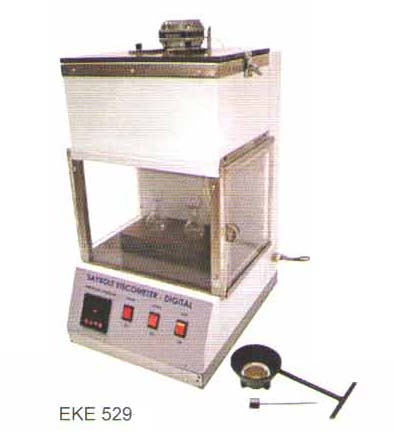

Saybolt  Viscometer
Ref. Standard ASTM 88, D 244, AASHTO T72

EKE-529:

For the empirical measurement of  say bolt viscosity of petroleum products at specified temperatures between 70 0  F and 2100  F. this is also used for determining the say bolt furol viscosity of bituminous materials at temperatures of 250, 275, 300, 350, 400 and 4500 F. It comprises one each of  cylindrical oil Cup, Universal Tip, Furol Tip, Bath fitted with immersion heater mounted on a stand, Dimmers tat for temperature control, Stirrer with shield. Complete with insulated handle and thermometer support. Receiving flask , withdrawal tube, filter funnel, thermometer support for cup and circular spirit level. Suitable for operation on 220V, 50 Hz, single phase, AC supply.

Optional Extras:
EKE 52901: Brass oil tube
EKE 52902: Receiving Flask , 60 ml
EKE 52903: Universal and flurol tip (Set of 2)
EKE 52904: Filter Funnel
EKE 52905: Thermometer Support
EKE 52906: Heating Coil
EKE 52910: ASTM Thermometer Type 17F, Range : 66° F to 80°F
EKE 52911: ASTM Thermometer Type 18F, Range : 94° F to 108°F
EKE 52911: 2 ASTM Thermometer Type 19F, Range : 120° F to 134°F
EKE 52913: ASTM Thermometer Type 20F, Range : 134° F to 148°F
EKE 52914: ASTM Thermometer Type 21F, Range : 174° F to 188°F
EKE 52915: ASTM Thermometer Type 22F, Range : 204° F to 218°F
EKE 52916: ASTM Thermometer Type 77F, Range : 245° F to 265°F
EKE 52917: ASTM Thermometer Type 78F, Range : 295° F to 315°F
EKE 52918: ASTM Thermometer Type 79F, Range : 345° F to 365°F
EKE 52919: ASTM Thermometer Type 80F, Range : 395° F to 415°F
EKE 52920: ASTM Thermometer Type 81F, Range : 445° F to 465°F
