PARTICLE SIZE DISTRIBUTION

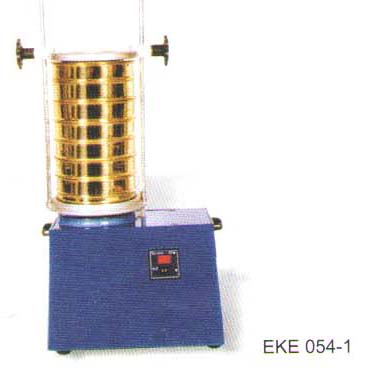

Sieve Shaker Motorised
EKE 054-1:

To make the process of sieving easier and quicker, electrically operated mechanical sieves shaker. Are offered for dry sieving.
The mechanical sieve shaker effect a more elaborate and standardized sieving action to produce accurate results and eliminate personal errors involved in manual sieving  on the basis of experienced gained in the production of these sieve shakers for more than thirty years , considerable improvement has been made in the  design and performance of these units. These sieve shakers are properly used in not only soil laboratories but also in a number of industries where sieving is required such as for ores, refectory materials , minor aggregates , pigments powered coal , soap , cement roofing materials , plastic mo0ulding powders and pharmaceuticals.
The new design is compact and lightweight and can be mounted on a bench top. This eliminates the use of concrete foundation Noise has been reduced considerably in the new model. A digital timer adjustable from 0-99 minutes is incorporated as an integral part of the equipments.
The sieve shaker can carry upto 8 sieves. It is driven by a ¼ HP geared motor. The sieve table is inclined from the vertical axis and the direction of inclination changes progressively in the clockwise direction. In addition to the gyratory motion of the table, there is a tapping motion of the table; there is a tapping motion as well.

Operating on 220 V, Single phase  50 Hz, AC Supply

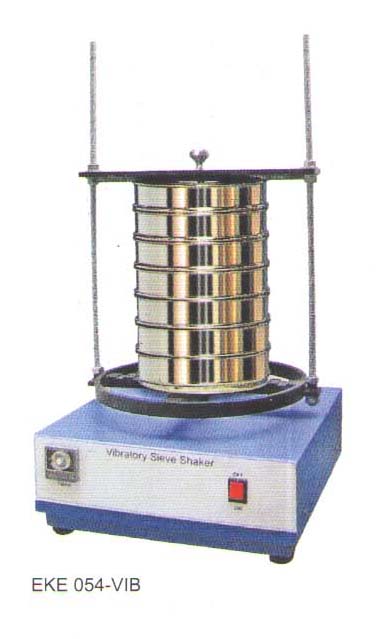

Vibratory Sieve Shaker
EKE 054-VIB:

This is a new addition in the family of the Sieve Shakers. A quiet Sieve Shaker for particle size analysis. The normal Sieve Shaker make a lot of noise due to tamping effect which is not desirable in a laboratory environment.

To overcome this problem ENKAY has come up with a new design which is practically Noise Free & has all the features of existing models in addition to new features. You can now run the test without ear plugs or sound proof boxes.

Eclectically operated mechanical Sieve Shaker are used to make the process of sieving easier and quicker. These Sieve Shakers are popularly used not only in soil laboratories but also in a number of industries where sieving is required such as for ores, refractory materials, minor aggregate, pigments, powdered coal, soap, cement, grains, roofing materials, plastic molding powders and pharmaceuticals. Virtually maintenance free this Sieve Shaker not only saves your money by providing longer Sieve lift, it also reduces downtime.

Salient Features of New Model
•    A Quiet Sieve Shaker
•    More Homogeneous results
•    Powered by Vibration of Springs and no moving internal part
•    Spring Amplitude upto 3 mm
•    Compact size and portable – Can accommodate upto 8 Sieves 20 cm dia.
•    Suitable for operation on 220 V, 50 Hz, Single Phase , AC Supply

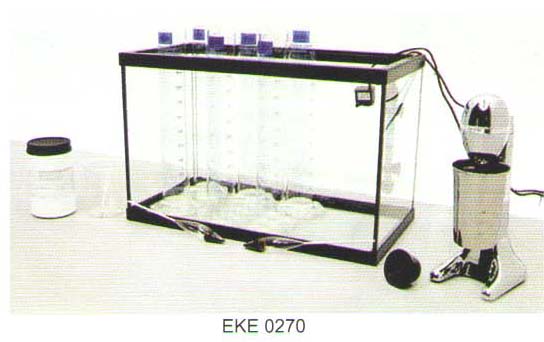

Hydometer  Test Set
Ref. Standard  : ASTM D422; AASHTO T88
EKE 0270:

EKE 0270: Hydrometer Test Set
EKE 0272: Soil Dispersion Mixer , 220-240 V 50-60 Hz
EKE 0273: Hydrometer Bath, 220-240 V 50-60 Hz
EKE 0274: Hydrometer 151H
EKE 0275: Hydrometer 152H
EKE 0276: Hydrometer Jar, 1000 ml
EKE 0900: Sodium Hexametaphosphate , 1 kg

Hydrometer Test Set is used to determine the particle size distribution of very fine materials such as silt and clay.
The soil dispersion mixer for hydrometer test method, operates at over 13,000 r.p.m, includes dispersion cup, stirring paddle, automatic switch – on by positioning bowl, 100 W power consumption.
The hydrometer bath, circulation unit, ambient to 35°C working temperature , 50 Litter capacity tank with 8 pcs sedimentation cylinder capacity.
152 H Hydrometer should be separately
The Hydrometer Test Set is Supplied Complete With ;
•    Dispersion Mixer
•    Hydrometer Bath
•    Hydrometer , 151 H, 1 Pcs
•    Sodium hexametaphosphate - 1 kg
•    Sedimentation Cylinder, 1000 ml , 6 Pcs
•    Heater
•    Circulation Unit
•    Rubber stopper for sedimentation cylinder
•    Beaker , 600 cc

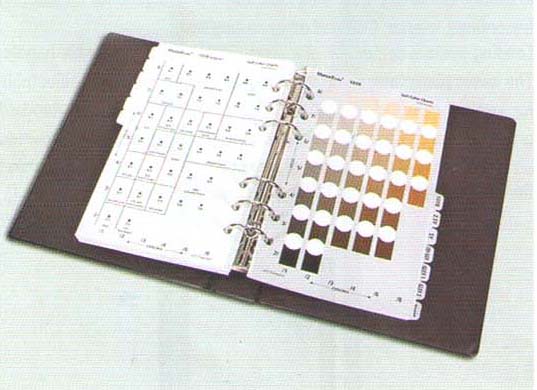

Munsell Soil Chart
Ref. Standard  : BS 1377:3
EKE 0285:

The EKE 0285 Munsell Soil Chart provides a simple method for soil classification by of determining the color of soil specimens. Test set consists of 7 constant hue charts covering a total of 196 colors. The color chart and the diagram are fitted in a pocket size binder. Supplied complete with a Tropical Soil Color Chart, set of 2 which can be fitted into the binder of EKE 0285


Dimensions:   150 x 150 x 50 mm
Weight: 1kg

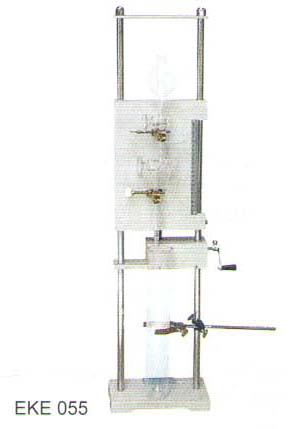

Anderson Pipette Stand
Ref. Standard  : IS:2720 (Part 4), BS : 1377
EKE 055:
Universally used for the determination of sub-sieve particle size in a soil sample. An analysis of this kind express quantitatively the properties by weight of the various sizes of particles present in the soil. It is recommended as standard procedure, to use a dispersion agent to avoid flocculation.
Incorporates a sliding carriage which is operated without transmitting vibrations to pipette or to sedimentation tube when the pipette is inserted and withdrawn from the liquid.


Supplied complete with :
EKE 05501 Anderson Pipette, Glass 10 ml. capacity
EKE 05502 Sedimentation tube, Glass, 500 ml. Capacity

High Speed Stirrer--
Ref. Standard  : IS:2720 (Part 4)

EKE 056:
Designed as a compact bench- mounted laboratory stirrer for the pretreatment stage of soils before particle size analysis. The mixer spindle operates within a Dispersion Cup which can be fitted with an antis plashing Baffle to improve the efficiency of mixing.
Supplied without cup and baffle.
Suitable for operation on 220 V, 50 Hz, Single Phase, AC Supply
