PARTICAL CHARGE TESTER

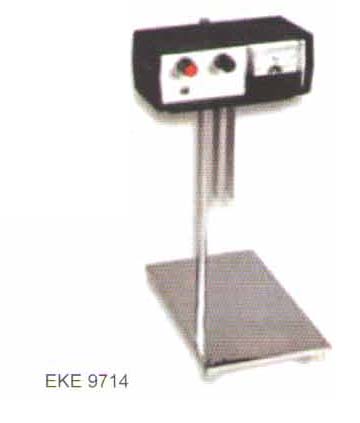

Particle Charge Tester

EKE 9714:

► Used to determine the particle charge (cationic) for the asphalt cement (Bitumen) emulsion
► Equipped with millimeter, variable resistor, rechargeable batteries and two stainless steel electrodes.
Technical Specifications:
•    Identify cationic emulsions

Supplied with:
-    Millimeter
-    Variable Resistor
-    Rechargeable Battery
-    2 Electrodes (s s)

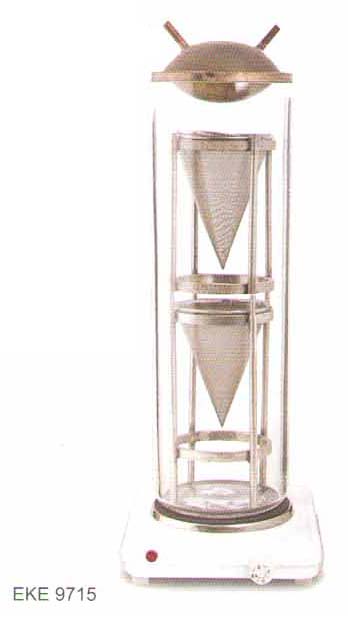

Reflux Extractor

EKE 9715:

► Used to determine the percentage of bitumen in the asphalt pavement mixtures
► Equipped with a glass cylinder, two wire mesh cones and brass condenser
► Filter Papers should be ordered separately

Technical Specifications:
-    Capacity : 1000 g/ 4000g
-    Glass Jar Cylinder
-    Wire Mesh Cone (2 ea)
-    Thermometer
-    Hotplate
-    Brass Condenser

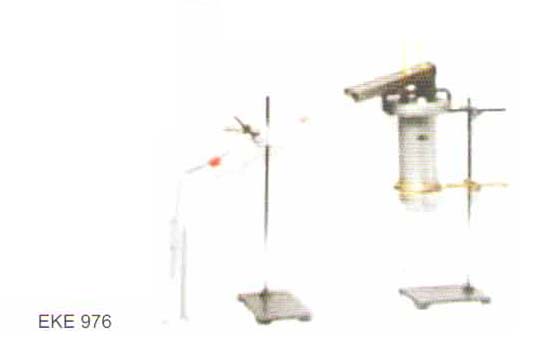

Emulsion – Distillation Unit

EKE 976:

► Used to determine the amount of water in the bitumen and petroleum products. The mechanism of the
     test is done via distilling the specimen with a water immiscible ( Volatile Solvent).
► Comprises distillation flask , condenser, ring burner and two thermometers

Technical Specifications:
•    Distillation Flask
•    Condenser
•    Ring Burner
•    Thermometer (2 ea)

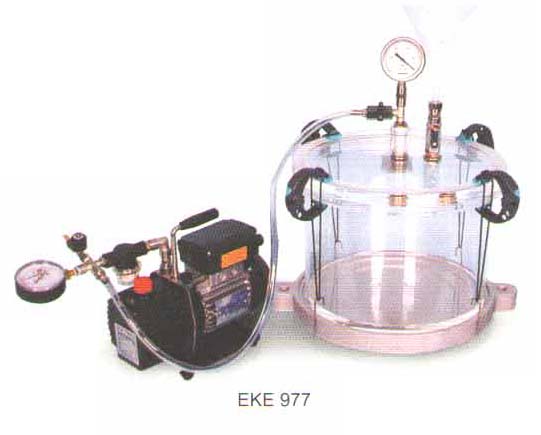

Vacuum Pycnometer

EKE 977:

► Used to rapidly determine the asphalt content, bulk specific gravity of aggregates , the specific gravity
     of bituminous compacted road mixtures and the percent air voids in the sample.
► Vacuum pump must be ordered separately

Technical Specifications:
•    Minimum vacuum required : 30 mm/Hg
•    Vacuum pump must be ordered separately
