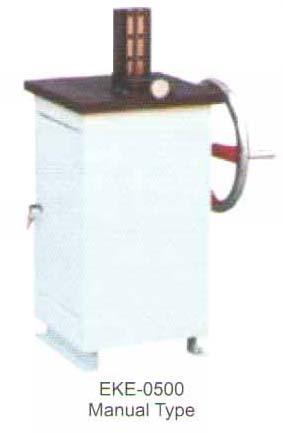

Manual/Hydraulic Notch Cutter For Impact Specimen- EKE 0500
Manual/Hydraulic Notch Cutter for Impact Specimen
EKE 0500:
EKE – 0500/V V Type Notch knife for EKE -0500
EKE – 0500/U U Type Notch knife for EKE -0500
Manual / Hydraulic Notch Cutter for Impact Specimen is specially designed foe specimen preparation for impact specimen. Both manual type and hydraulic type are available to cut the notch according to the ‘V’ ASTM E23, ISO 148 standards, ‘U’ DIN 501 and ISO83 standards ‘Charpy Notch Impact Test Method for Metal Material’. Meanwhile the machine also features in high precision, long life, low noise and concise appearance etc.
EKE -0500 Manual Notch Cutter for Impact Specimen is supplied complete with V Type or U Type Notch knife. The second type knife should be ordered separately.
Specifications:
- Notch Type : V Type: 2 mm or U Type : 2 mm
- Size of specimen : 10 x 10 (7.5 or 5) c 55 mm
- Travel of cutting knife : 340 mm
- Cutting speed : 2.5 m/min (hydraulic type)
- Dimensions : 400 x 350 x 700/ 600 x 500 x 1200 mm
- Weight : 100/200 kg

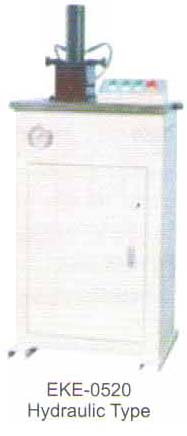

Manual/Hydraulic Notch Cutter For Impact Specimen-EKE 0520
Manual/Hydraulic Notch Cutter for Impact Specimen - 0520
EKE 0520:
Manual / Hydraulic Notch Cutter for Impact Specimen is specially designed foe specimen preparation for impact specimen. Both manual type and hydraulic type are available to cut the notch according to the ‘V’ ASTM E23, ISO 148 standards, ‘U’ DIN 501 and ISO83 standards ‘Charpy Notch Impact Test Method for Metal Material’. Meanwhile the machine also features in high precision, long life, low noise and concise appearance etc.
EKE -0520 Hydraulic Notch Cutter for Impact Specimen is supplied complete with V Type or U Type Notch knifes.
Specifications:
- Notch Type : V Type: 2 mm or U Type : 2 mm
- Size of specimen : 10 x 10 (7.5 or 5) c 55 mm
- Travel of cutting knife : 340 mm
- Cutting speed : 2.5 m/min (hydraulic type)
- Dimensions : 400 x 350 x 700/ 600 x 500 x 1200 mm
- Weight : 100/200 kg
