MOULDS/ MOULDS OF RUPTURE

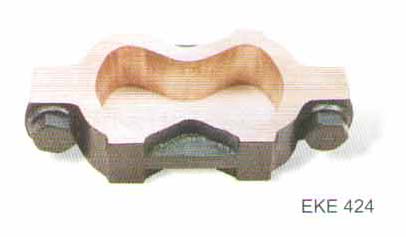

Briquettes Mould
Ref. Standard IS:269; BS:12, ASTM C307

EKE 424:

Briquettes Mould, Brass , to the dimensions in relevant specifications

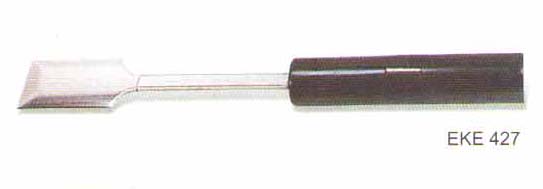

Cement Spatula
Ref. Standard IS:269, BS:12

EKE 427:

For the preparation of tensile specimens. Weight not exceeding 340 g

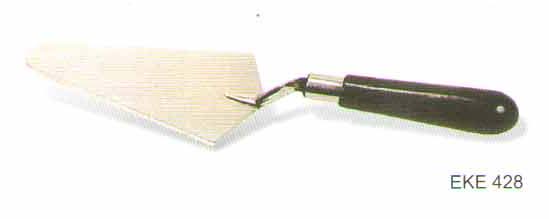

Gauging Trowel
Ref. Standard IS:4031

EKE 428:

100 to 150 mm long blade with straight edge. Weight 210±10g

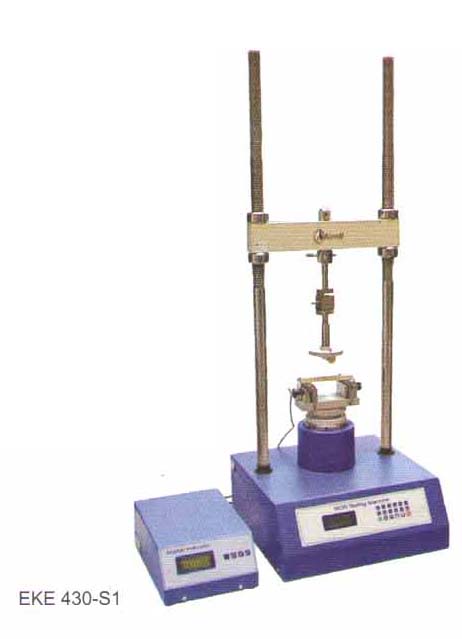

Modulus of Rupture (MOR) Testing Machine for Ceramic
Ref. Standard IS:2556-1

EKE 430-S1:

The machine consists of loading unit, MOR attachment for circular, rectangular and square bar samples, high precision load cell for accurate load determination of green and fired bars, digital indicator and analysis software

The machine has feature of paused and speed reset during the test.

Loading frame 50 kN capacity machine, comprises of rigid twin column construction with an integral , fully variable microprocessor controlled drive unit and LCD display with a touch sensitive keyboard. The machine is bench mounted for ease of installation and operation.

The use of a microprocessor controlled drive system and keyboard entry provides the Load Frame with a wide variety of features which include pause and speed reset during test, RS232 interface for computer control, operator programming of speed and control functions and many other features. A robustly constructed steel case houses the motor drive system with careful attention being given to the   prevention of ingress of water or grit. All operating controls are mounted on the front panel of the machine which is angled and recessed to prevent physical and environmental damage.

Suitable operation on 220 V, 50 Hz, Single Phase , AC Supply

Specifications of loading frame with Electronic Instrumentation :
•    Capacity : 50 kN
•    Drive Mechanism : Stepper Motor Drive Microprocessor Controlled
•    Rate of Strain : 0.00001 to 9.99999 mm/minute
•    Fast Forward &Reverse : 10mm/minute
•    Rapid Approach Speed : 15 min/minute
•    Horizontal Clearance : 364 mm
•    Max. Vertical Clearance : 910 mm
•    Max. Platen Travel : 100 mm
•    Dimensions (LxWxH) : 600 x 500 x 1440 mm
•    Weight : 85 kg (Approx.)
•    Load Cell Capacity : 2500 N and 250 N
•    Resolution : 0.1N&0.01 N

Analysis Software Features:
Automatic calculation of MOR for circular, rectangular and square bar. Simple and easy to operate software with automatic calculation & data analysis as per the calculation pre-defined in  IS standard. Detailed output report with all the necessary parameters (average, maximum, minimum per batch)

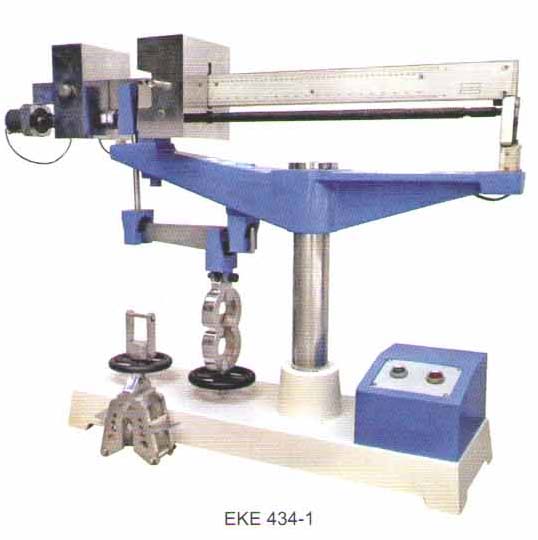

Cement Tensile Testing Machine
Ref. Standard  EN: 196-1

EKE 434-1:

This Cement Tensile Testing Machine is primarily used to determine the tensile strength of briquette specimens of cement.

It can also be used to test the flexure strength of the sample.

This test is commonly used by Cement Manufacturers in order to determine the quality of cement.

Specifications :
•    Capacity : 2 kN & 10 kN
•    Loading speed of the single lever system : 10±2N/sec
•    Loading speed of the double lever system : 50±10N/sec
•    Flexure jaw diameter of the loading roller : 10 mm
•    Supporting roller diameter : 10 mm
•    Supporting roller distance : 100 mm
•    Baffle plate san : 46 mm
