MOULDS/ CURING

Cube Moulds – 100 mm

EKE 343:

ENKAY Moulds are made of high quality metal, and are strong enough to resist distortion  or possibility and retain their shape and size under rugged conditions. These moulds are given internal surface finish of a very high order, to comply with requirements laid down in IS:10086, BS:1881, ASTM C31 and ASTM C192

Mould Cast Iron, for 100 mm Cube.
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cube Mould.

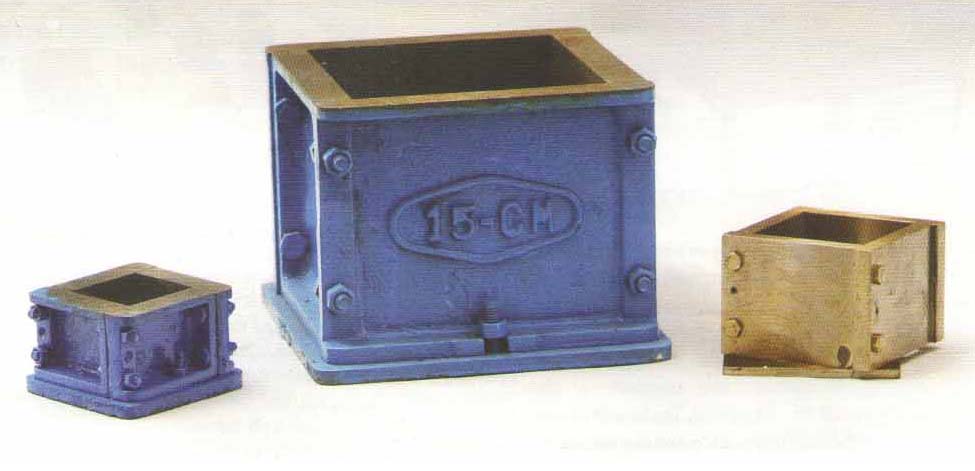

Cube Moulds – 150 mm

EKE 344:

ENKAY Moulds are made of high quality metal, and are strong enough to resist distortion  or possibility and retain their shape and size under rugged conditions. These moulds are given internal surface finish of a very high order, to comply with requirements laid down in IS:10086, BS:1881, ASTM C31 and ASTM C192

Mould Cast Iron, for 150 mm Cube.
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cube Mould.

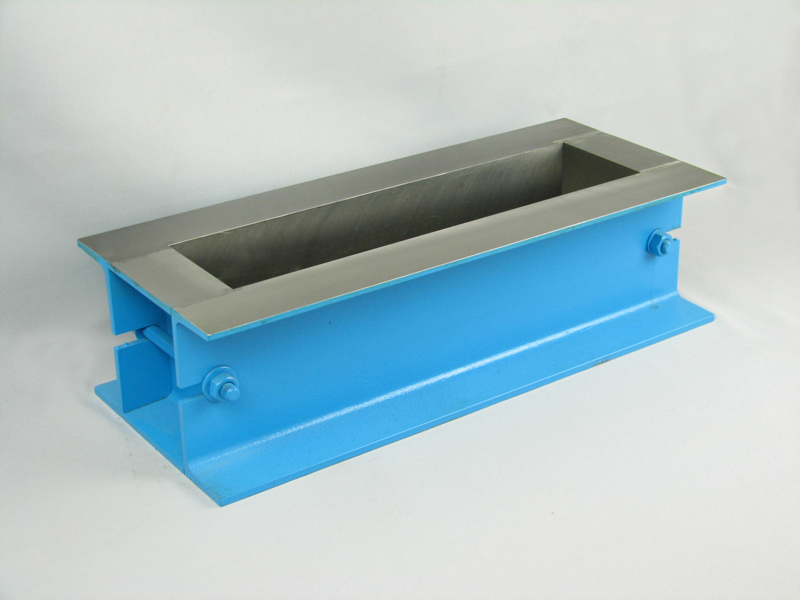

Beam Mould 100 x 100  x 500 mm

EKE 346:

Two Standard sizes of beam moulds are offered for casting concrete specimens for flexural strength testing. These moulds are made of Cast Iron and are supplied complete with a base plate.

Beam Mould, 100 mm x 100 mm x 500 mm Size

Optional Accessory:
EKE 348 Tamping Rod, Steel, 25 mm dia. x 25 mm  square ramming face, 400 mm long, 2 kg in weight. For use with Beam Mould.

Beam Mould – 150 x 150 x 700 mm

EKE 347:

Two Standard sizes of beam moulds are offered for casting concrete specimens for flexural strength testing. These moulds are made of Cast Iron and are supplied complete with a base plate.

Beam Mould, 150 mm x 150 mm x 700 mm Size

Optional Accessory:
EKE 348 Tamping Rod, Steel, 25 mm dia. x 25 mm  square ramming face, 400 mm long, 2 kg in weight. For use with Beam Mould.

Cylindrical Mould – 150 x 300 mm

EKE 349:

Moulds for testing Concrete Cylinders for Compressive Strength Testing are offered in two different sizes. These moulds are made of cast iron and split into two parts longitudinally. These are supplied complete with a base plate and top plate, and meet the requirements of IS:10086 and other International Standards.

Mould 150 mm x 300 mm high
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cylindrical Mould.

Cylindrical Mould – 100 x 200 mm

EKE 350:

Moulds for testing Concrete Cylinders for Compressive Strength Testing are offered in two different sizes. These moulds are made of cast iron and split into two parts longitudinally. These are supplied complete with a base plate and top plate, and meet the requirements of IS:10086 and other International Standards.

Mould 100 mm x 200 mm high
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cylindrical Mould.

Cylindrical Mould – 100 x 100 mm

EKE 351:

Moulds for testing Concrete Cylinders for Compressive Strength Testing are offered in two different sizes. These moulds are made of cast iron and split into two parts longitudinally. These are supplied complete with a base plate and top plate, and meet the requirements of IS:10086 and other International Standards.

Mould 100 mm x 100 mm high
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cylindrical Mould.

Cylindrical Mould – 150 x 150 mm

EKE 352:

Moulds for testing Concrete Cylinders for Compressive Strength Testing are offered in two different sizes. These moulds are made of cast iron and split into two parts longitudinally. These are supplied complete with a base plate and top plate, and meet the requirements of IS:10086 and other International Standards.

Mould 150 mm x 150 mm high
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cylindrical Mould.

Cylindrical Mould – 300 x 300 mm

EKE 354:

Moulds for testing Concrete Cylinders for Compressive Strength Testing are offered in two different sizes. These moulds are made of cast iron and split into two parts longitudinally. These are supplied complete with a base plate and top plate, and meet the requirements of IS:10086 and other International Standards.

Mould 300 mm x 300 mm high
ISI Certification Mark, IS:10086  (On Request)

Optional Accessory:
EKE 345 Tamping Rod, Steel, 16 mm dia. x 600 mm length rounded at the lower end. For use with Cylindrical Mould.

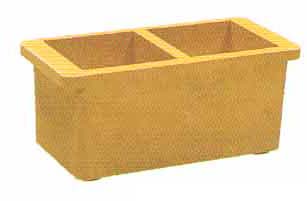

Plastic Cube Mould – Double Gang

B-011/P/10-2:

Plastic, Double Gang, Internal Dimensions 150 x 150 x 150 mm

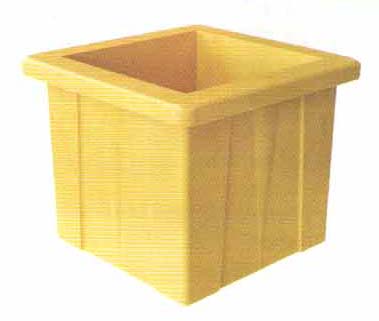

Plastic Cube Mould – Single Gang

B-011/P/15:

Plastic, Single Gang, Internal Dimensions 150 x 150 x 150 mm

Curing Tank – 6/12 Moulds

EKE 355-1:

•    24 – Hour Cycle from time of mixing
•    Controlled 35°C or 100°C Curing Temperature for Concrete
•    Controlled 27°C ± 2°C Curing Temperature for Concrete

The tank has been designed to accommodate 150 mm/70.6 mm cube moulds up to 6/12 cube moulds and fully insulated, complete with a hinged lid, heater , thermostat and recirculation pump. Provision of two removable racks allowing free circulation of water around each cube. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The tank is heated by an immersion heater under normal conditions and refrigeration system. For gray cement, the temperature is controlled at 35°C or 100°C ± 2°C/27°C ±2°C, except for the  15 minutes after immersion of the freshly – made specimens
Curing Tank for 6/12 Moulds of 150 mm/70.6 mm size

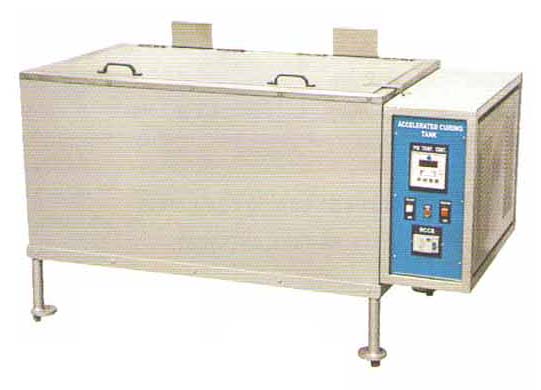

Curing Tank – 12/24 Moulds

EKE 355-2:

•    24 – Hour Cycle from time of mixing
•    Controlled 35°C or 100°C Curing Temperature for Concrete
•    Controlled 27°C ± 2°C Curing Temperature for Concrete

The tank has been designed to accommodate 150 mm/70.6 mm cube moulds up to 12/24 cube moulds and fully insulated, complete with a hinged lid, heater , thermostat and recirculation pump. Provision of two removable racks allowing free circulation of water around each cube. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The tank is heated by an immersion heater under normal conditions and refrigeration system. For gray cement, the temperature is controlled at 35°C or 100°C ± 2°C/27°C ±2°C, except for the  15 minutes after immersion of the freshly – made specimens
Curing Tank for 12/24 Moulds of 150 mm/70.6 mm size


Curing Tank – 24/48 Moulds

EKE 355-3:

•    24 – Hour Cycle from time of mixing
•    Controlled 35°C or 100°C Curing Temperature for Concrete
•    Controlled 27°C ± 2°C Curing Temperature for Concrete

The tank has been designed to accommodate 150 mm/70.6 mm cube moulds up to 24/28 cube moulds and fully insulated, complete with a hinged lid, heater , thermostat and recirculation pump. Provision of two removable racks allowing free circulation of water around each cube. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The tank is heated by an immersion heater under normal conditions and refrigeration system. For gray cement, the temperature is controlled at 35°C or 100°C ± 2°C/27°C ±2°C, except for the  15 minutes after immersion of the freshly – made specimens
Curing Tank for 24/28 Moulds of 150 mm/70.6 mm size

Curing Tank – 36/72 Moulds

EKE 355-4:

•    24 – Hour Cycle from time of mixing
•    Controlled 35°C or 100°C Curing Temperature for Concrete
•    Controlled 27°C ± 2°C Curing Temperature for Concrete

The tank has been designed to accommodate 150 mm/70.6 mm cube moulds up to 36/72 cube moulds and fully insulated, complete with a hinged lid, heater , thermostat and recirculation pump. Provision of two removable racks allowing free circulation of water around each cube. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The tank is heated by an immersion heater under normal conditions and refrigeration system. For gray cement, the temperature is controlled at 35°C or 100°C ± 2°C/27°C ±2°C, except for the  15 minutes after immersion of the freshly – made specimens
Curing Tank for 36/72 Moulds of 150 mm/70.6 mm size

Accelerated Curing Tank - Warmer Water Method

EKE 355-1 ACW:

For warmer water method, Temp. Range : 55±2°C

Accelerated Curing Tank for 6 Moulds of 150 mm size

Accelerated Curing Tank - - Warmer Water Method

EKE 355-2 ACW:

For warmer water method, Temp. Range : 55±2°C

Accelerated Curing Tank for 12 Moulds of 150 mm size


Accelerated Curing Tank - Boiling Water Method

EKE 355-1 ACB:

For  Boiling Water Method, Temp. Range 100± 2°C

Accelerated Curing Tank for 6 Moulds of 150 mm size

Accelerated Curing Tank - -Boiling Water Method

EKE 355-2 ACB:

For  Boiling Water Method, Temp. Range 100± 2°C

Accelerated Curing Tank for 12 Moulds of 150 mm size
