Concrete Mixer, Pan Type, Capacity
Mixing Equipment

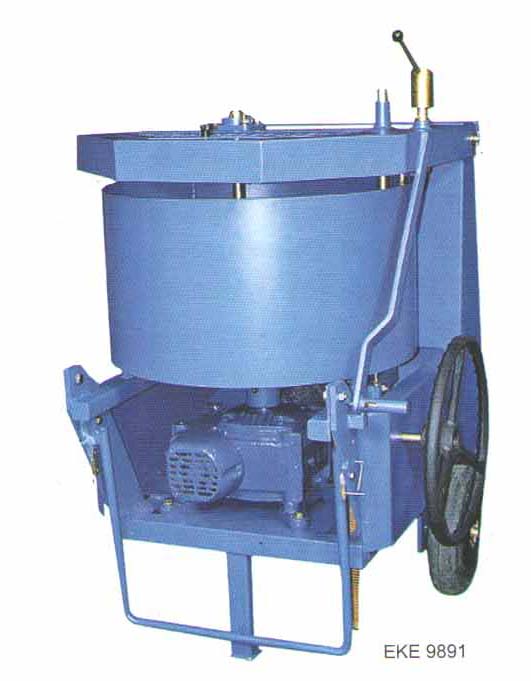

Concrete Mixer, Pan Type, Capacity 40 Litters
EKE 9891
The concrete mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories . The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency. This in turn gives consistent quality of cube specimens when casted in the moulds.
The concrete Mixer developed is transportable on wheels. The design of mixing paddles ensure uniform & efficient mixing of cement & aggregate both in dry & wet conditions. The equipment can also be put o use for mixing of any other material in dry/ wet conditions. The agreement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation. The drum is driven of the ribbed base. The lid with mixing paddles clears of the top of the drum to provide maximum access to the operator. Operator safety being paramount , the same is ensured by electrical interlocking switch which trips the supply to the motor of the drum even if the lid is lifted accidentally while the mixer is in operation
Specifications :
Mixing Capacity : 40 Ltrs
Overall Dimension : 910 mm (L) x 875 mm (W) x 1250 mm (H)
Electric Supply : 440 Volt
Motor : 2 HP, 3 Phase , AC, 960 Rpm
Features:
• Portable & Compact
• Adjustable Blades
• Simple to Clean & Maintain
• Easy to operate
Concrete Mixer Drum Type , Capacity
Mixing Equipment

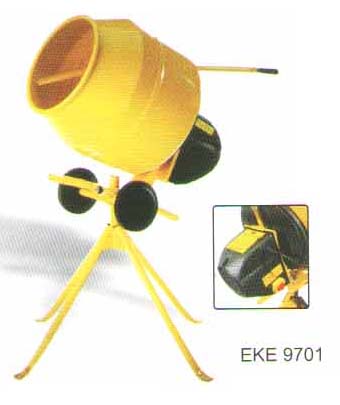

Concrete Mixer Drum Type , Capacity 30 Litters
EKE 9701
The mixer consists of a steel vessel of 30 litters, mounted on a frame. The vessel is rotated at 20-24 RPM with the help of a motor and a pulling. The vessel can be tilted to any angle by a handle. This facilities mixing and discharge. Blades are provided inside the vessel to mix the material thoroughly. The large handle strip facilities manual rotation of the drum during power failure. The drum, handle and motor etc. are mounted on a steel frame. This model is provided with two large wheels for carting away.
Specifications:
Mixing Capacity : 30 Ltrs
Overall Dimension : 195 mm (L) x 790 mm (W) x 1370 mm (H)
Motor : 1 HP
Drum RPM : 24 RPM
Features:
• Simple to clean & Maintain
• Easy to Operate
Suitable for operation on 220 V, 50 Hz, Single Phase, AC Supply
