MICRO COMPUTER CONTROLLED TORSION TESTING MACHINE (TW SERIES)

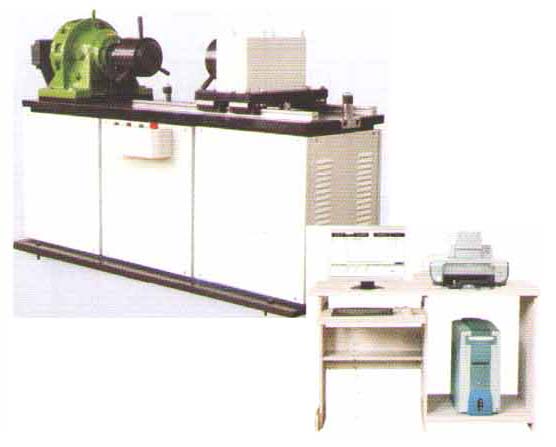

Micro – Computer Controlled Torsion Testing Machine -500

TW 500:

Main Applications:
This testing machine uses computer- controlled Japanese AC servo system and is loaded through the active clamping  head driven by the AC Servo motor and cycloidal  pinwheel reduction motor. The torque and torsion angle are measured with high – precision torque transducer and photoelectric encoder. Computer will dynamically display the test torsion curve, loading speed , peak value , and so on.

It is mainly used for the torsion test of metal and non-metal materials, as well as the torsion test for parts and components

It is an essential instrument to measure torsion properties of materials for machines laboratories of Aviation Industry, Construction Industry, Scientific Research Dept. Universities or Industrial Enterprises.

Main Function and Features:
Loading Mode : We use imported AC servo and driver; testing of torque and torsion angle. High – precision symmetrical torque transducer for torque testing and . High – precision photoelectric encoder angle testing.

Operation: Manual     control and Computer control : WINDOWS – based software to calculate mechanical indexes of materials. Auto process test data , dynamically display testing curve, store and print the testing result.

Operator can intervene in the analysis process and thus improve the accuracy of test results.

Specifications:
•    Max. Test Torque (N.M) : 500Nm
•    Relative error  of Torque Indications : ≤+1% (from 20% of each full range)
•    Relative Repeatability error of torque indications : ≤ 1% (from 20% of each full range)
•    Loading Speed : 1% min - 360°/min
•    Max. Reading of Torsion Angle (°) : 9999.9
•    Distance Between Two Clamping Heads : 0-500 mm

Micro – Computer Controlled Torsion Testing Machine  - 1000

TW 1000:

Main Applications:
This testing machine uses computer- controlled Japanese AC servo system and is loaded through the active clamping  head driven by the AC Servo motor and cycloidal  pinwheel reduction motor. The torque and torsion angle are measured with high – precision torque transducer and photoelectric encoder. Computer will dynamically display the test torsion curve, loading speed , peak value , and so on.

It is mainly used for the torsion test of metal and non-metal materials, as well as the torsion test for parts and components

It is an essential instrument to measure torsion properties of materials for machines laboratories of Aviation Industry, Construction Industry, Scientific Research Dept. Universities or Industrial Enterprises.

Main Function and Features:
Loading Mode : We use imported AC servo and driver; testing of torque and torsion angle. High – precision symmetrical torque transducer for torque testing and . High – precision photoelectric encoder angle testing.

Operation: Manual     control and Computer control : WINDOWS – based software to calculate mechanical indexes of materials. Auto process test data , dynamically display testing curve, store and print the testing result.

Operator can intervene in the analysis process and thus improve the accuracy of test results.

Specifications:
•    Max. Test Torque (N.M) : 1000Nm
•    Relative error  of Torque Indications : ≤+1% (from 20% of each full range)
•    Relative Repeatability error of torque indications : ≤ 1% (from 20% of each full range)
•    Loading Speed : 1% min - 360°/min
•    Max. Reading of Torsion Angle (°) : 9999.9
•    Distance Between Two Clamping Heads : 0-500 mm

Micro – Computer Controlled Torsion Testing Machine - 2000

TW 2000:

Main Applications:
This testing machine uses computer- controlled Japanese AC servo system and is loaded through the active clamping  head driven by the AC Servo motor and cycloidal  pinwheel reduction motor. The torque and torsion angle are measured with high – precision torque transducer and photoelectric encoder. Computer will dynamically display the test torsion curve, loading speed , peak value , and so on.

It is mainly used for the torsion test of metal and non-metal materials, as well as the torsion test for parts and components

It is an essential instrument to measure torsion properties of materials for machines laboratories of Aviation Industry, Construction Industry, Scientific Research Dept. Universities or Industrial Enterprises.

Main Function and Features:
Loading Mode : We use imported AC servo and driver; testing of torque and torsion angle. High – precision symmetrical torque transducer for torque testing and . High – precision photoelectric encoder angle testing.

Operation: Manual     control and Computer control : WINDOWS – based software to calculate mechanical indexes of materials. Auto process test data , dynamically display testing curve, store and print the testing result.

Operator can intervene in the analysis process and thus improve the accuracy of test results.

Specifications :
•    Max. Test Torque (N.M) : 2000Nm
•    Relative error  of Torque Indications : ≤+1% (from 20% of each full range)
•    Relative Repeatability error of torque indications : ≤ 1% (from 20% of each full range)
•    Loading Speed : 1% min - 360°/min
•    Max. Reading of Torsion Angle (°) : 9999.9
•    Distance Between Two Clamping Heads : 0-500 mm
