LAMINAR AIR FLOW/ BALANCES

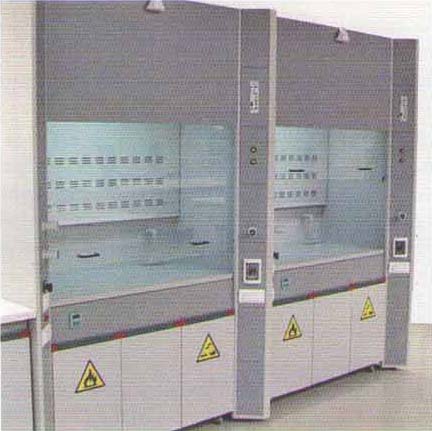

Laminar Flow (Fume Hood) Over the Counter Type

EKE 1480:

Some tests, especially extraction methods, require the use of volatile toxic chemicals which are hazardous to health , and these gases are subject to occupational exposure limits as described in relevant legislation and regulations.

The Over the Counter Type Fume Hoods are  especially designed to remove toxic gases from the test area. Bespoke Fume Hood with Specific dimensions and properties can be supplied to meet specific requirements.

Standard Features:
•    Stoneware Bench
•    Water and gas fittings
•    2 x double Electric Socket, 220 V
•    Galvanized frame
•    Legs that made from hard PVC to be protected against corrosion
•    Second air drained part for draining heavy gases
•    Standard flammable  gas tap for LPG , Acetylene , Propane, Butane etc..
•    Pressure Reducing Regulator
•    Laminated or Tampered glass

Optional Features:
•    Digital Indicator and Control Panel
•    Fan min. 1200 m³/h capacity
•    Trespa Top Lab Plus or Epoxy Resin Type bench surface
•    Demineralized water fitting
•    Dimensions : 1500 x 900 x 1620 mm
•    Weight : 250 kg

Laminar Flow (Fume Hood) Cabinet Type

EKE 1482:

Some tests, especially extraction methods, require the use of volatile toxic chemicals which are hazardous to health , and these gases are subject to occupational exposure limits as described in relevant legislation and regulations.

The Cabinet Type  Fume Hoods are  especially designed to remove toxic gases from the test area. Bespoke Fume Hood with Specific dimensions and properties can be supplied to meet specific requirements.

Standard Features:
•    Stoneware Bench
•    Water and gas fittings
•    2 x double Electric Socket, 220 V
•    Galvanized frame
•    Legs that made from hard PVC to be protected against corrosion
•    Second air drained part for draining heavy gases
•    Standard flammable  gas tap for LPG , Acetylene , Propane, Butane etc..
•    Pressure Reducing Regulator
•    Laminated or Tampered glass

Optional Features:
•    Digital Indicator and Control Panel
•    Fan min. 1200 m³/h capacity
•    Trespa Top Lab Plus or Epoxy Resin Type bench surface
•    Demineralized water fitting
•    Dimensions : 1500 x 900 x 2350 mm
•    Weight : 300 kg

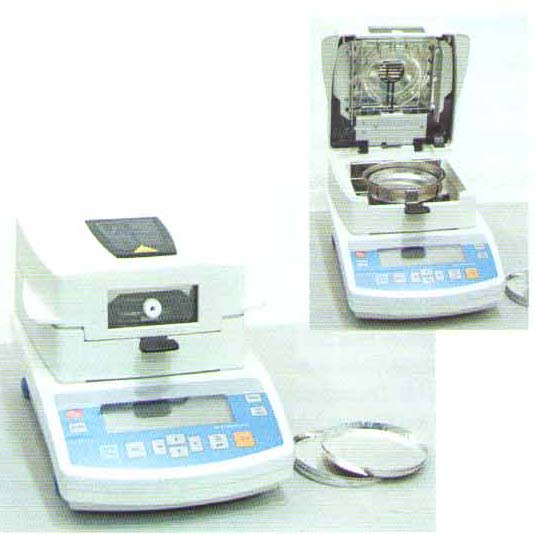

Moisture Balance 50 g x 0.001 g

EKE 0610:

The EKE 0610 Moisture Balance is specially designed to determine the moisture content of relatively small samples of various substances.

Features:
•    Easy operation provided by backlit LCD display
•    Drying profile (standard, Mild, Step, Rapid)
•    Finish mode (Manual, Humidity stabilization, automatic, time defined)
•    GLP/GMP printouts and reports
•    Halogen lamp
•    Standard and non- standard applications
•    Optimization of work ensured by halogen lamps mode

Technical Specifications:
•    Capacity : 50 g
•    Pan Size : Φ 90 mm
•    Readability : 1 mg
•    Maximum Sample Mass : 50 g
•    Moisture Reading Accuracy : 0.001%
•    Reputability : ± 0.24% (Sample < 2g)
                    ± 0.06% (Sample  2-10 g)
                    ± 0.04% (Sample > 10g)
•    Maximum Drying Temp. : 160°C
•    Drying Modes : 4 Modes : Standard/Quick/Step/Mild
•    Power of Heater : 400 W
•    Power Supply : 110-240 V 50-60 Hz AC
•    Display : LCD (Backlit)
•    Dimensions : 210 x 335 x 190 mm
•    Weight (Approx.) : 5 kg

Electronic Analytical Balance LCD Screen 60-220 g x 0.00001-0.0001 g

EKE 0620:

The Electronic Analytical Balance set the standard in terms of reliable measurements, user- friendly and long service life . The balance can be used for routine tasks and/or complicated weighing procedures.

The balance have and automatic internal calibration

The Analytical Balances provide fast and easy installation and cleaning with their ergonomic designs and brilliant displays. They can also connected to printers or PCs through RS 232 outputs to give excellent monitoring and reporting performance.

Technical Specifications:
•    Capacity : 60-220 g
•    Readability : 0.01-0.1 mg
•    Pan Size : Φ 70
•    Additional Power Supply : AC Adapter
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 210 x 335 x 335 mm
•    Weight (Approx.) : 6 kg

Electronic Analytical Balance LCD Screen 220 g x 0.0001 g

EKE 0622:

The Electronic Analytical Balance set the standard in terms of reliable measurements, user- friendly and long service life . The balance can be used for routine tasks and/or complicated weighing procedures.

The balance have and automatic internal calibration

The Analytical Balances provide fast and easy installation and cleaning with their ergonomic designs and brilliant displays. They can also connected to printers or PCs through RS 232 outputs to give excellent monitoring and reporting performance.

Technical Specifications:
•    Capacity : 220 g
•    Readability : 0.1 mg
•    Pan Size : Φ 85
•    Additional Power Supply : AC Adapter
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 300 x 400 x 400 mm
•    Weight (Approx.) : 6 kg

Electronic Analytical Balance  200 g x 0.001 g

EKE 0625:

The Electronic Analytical Balance set the standard in terms of reliable measurements, user- friendly and long service life . The balance can be used for routine tasks and/or complicated weighing procedures.

The balance have and external calibration

The Analytical Balances provide fast and easy installation and cleaning with their ergonomic designs and brilliant displays. They can also connected to printers or PCs through RS 232 outputs to give excellent monitoring and reporting performance.

Technical Specifications:
•    Capacity : 200 g
•    Readability : 1 mg
•    Pan Size : Φ 115
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : No
•    Dimensions : 175 x 245 x 800 mm
•    Weight (Approx.) : 1.5 kg

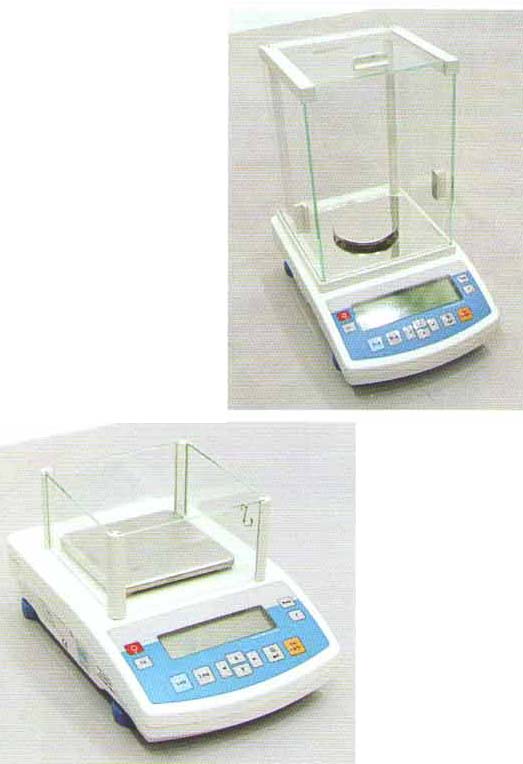

Electronic Analytical Balance  360 g x 0.001 g

EKE 0628:

The Electronic Analytical Balance set the standard in terms of reliable measurements, user- friendly and long service life . The balance can be used for routine tasks and/or complicated weighing procedures.

The balance have and external calibration

The Analytical Balances provide fast and easy installation and cleaning with their ergonomic designs and brilliant displays. They can also connected to printers or PCs through RS 232 outputs to give excellent monitoring and reporting performance.

Technical Specifications:
•    Capacity : 360 g
•    Readability : 1 mg
•    Pan Size : 128 x 128 mm
•    Additional Power Supply : AC Adapter
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 210 x 335 x 160 mm
•    Weight (Approx.) : 3.5 kg

Electronic Analytical Balance  510 g x 0.001 g

EKE 0630:

The Electronic Analytical Balance set the standard in terms of reliable measurements, user- friendly and long service life . The balance can be used for routine tasks and/or complicated weighing procedures.

The balance have and external calibration

The Analytical Balances provide fast and easy installation and cleaning with their ergonomic designs and brilliant displays. They can also connected to printers or PCs through RS 232 outputs to give excellent monitoring and reporting performance.

Technical Specifications:
•    Capacity : 510 g
•    Readability : 1 mg
•    Pan Size : 128 x 128 mm
•    Additional Power Supply : AC Adapter
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 210 x 335 x 160 mm
•    Weight (Approx.) : 3.5 kg

Electronic Analytical Balance  1000 g x 0.001 g

EKE 0632:

The Electronic Analytical Balance set the standard in terms of reliable measurements, user- friendly and long service life . The balance can be used for routine tasks and/or complicated weighing procedures.

The balance have and external calibration

The Analytical Balances provide fast and easy installation and cleaning with their ergonomic designs and brilliant displays. They can also connected to printers or PCs through RS 232 outputs to give excellent monitoring and reporting performance.

Technical Specifications:
•    Capacity : 1000 g
•    Readability : 1 mg
•    Pan Size : 128 x 128 mm
•    Additional Power Supply : AC Adapter
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 230 x 380 x 160 mm
•    Weight (Approx.) : 4.5 kg

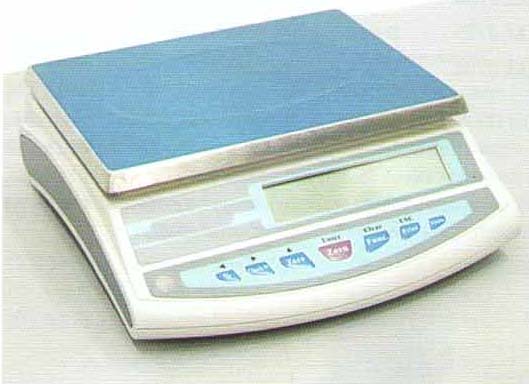

Digital Balance 6 kg x 0.1 g

EKE 0635:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 6 kg
•    Readability : 0.1g
•    Pan Size : 300 x 230 mm
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 300 x 400 x 400 mm
•    Weight (Approx.) : 4.5 kg

Digital Balance 600 g x 0.01 g

EKE 0633:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 600 g
•    Readability : 0.01g
•    Pan Size : Φ 116 mm
•    Additional Power Supply : AC Battery
•    Under-Bench Weighing Facility : No
•    Dimensions : 250 x 350 x 400 mm
•    Weight (Approx.) : 1.5 kg

Digital Balance 30 kg x 5 g

EKE 0637:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 30kg
•    Readability : 5g
•    Pan Size : 300 x 230 mm
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 300 x 400 x 400 mm
•    Weight (Approx.) : 4.5 kg

Digital Balance 30 kg x 0.5 g

EKE 0638:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 30kg
•    Readability : 0.5g
•    Pan Size : 300 x 230 mm
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 300 x 400 x 400 mm
•    Weight (Approx.) : 4.5 kg

Digital Balance 3000 g x 0.01 g

EKE 0640:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 3000g
•    Readability : 0.01g
•    Pan Size : 125 x 145 mm
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 250 x 350 x 400 mm
•    Weight (Approx.) : 3.5 kg

Digital Balance 3500 g x 0.01 g

EKE 0642:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 3500g
•    Readability : 0.01g
•    Pan Size : 300 x 230 mm
•    Additional Power Supply : Electrical
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 250 x 350 x 400 mm
•    Weight (Approx.) : 3.5 kg

Digital Balance 15 g x 0.2 g

EKE 0645:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 15 kg
•    Readability : 0.2g
•    Pan Size : 300 x 230 mm
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 300 x 300 x 400 mm
•    Weight (Approx.) : 4.5 kg

Digital Balance 30 g x 0.1 g

EKE 0648:

The Digital Balance provide a wide range of maximum capacity and readability characteristic which make them economical and easy to use, they are ideal for central and site laboratories who require a range of balance for various applications

The Digital Balance are fitted with strain gauge load cells and are designed with  large Backlit LCD displays that give precise measurements within 0°C to 40°C temperature range. Digital Balances have an internal automatic calibration feature. It can be connected to printers or PC’s through their RS232 V, 50-60 Hz AC/DC adapters

Technical Specifications:
•    Capacity : 30 kg
•    Readability : 0.1g
•    Pan Size : 310 x 220 mm
•    Additional Power Supply : Rechargeable Battery
•    Under-Bench Weighing Facility : Yes
•    Dimensions : 300 x 300 x 400 mm
•    Weight (Approx.) : 5.5 kg

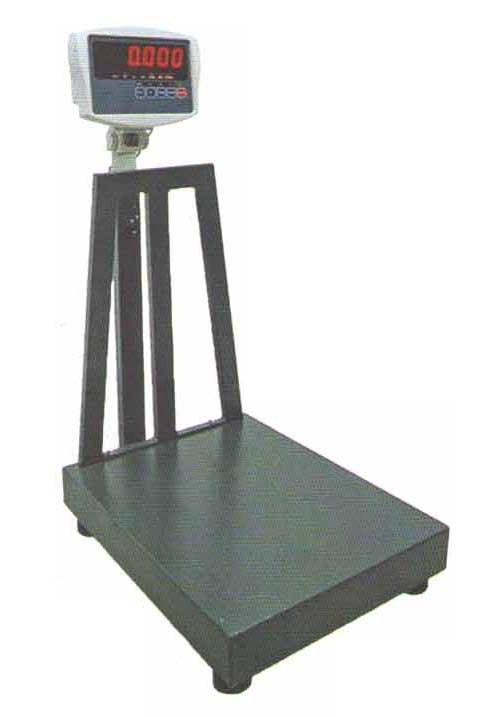

Digital Platform Scale 150 kg x 5 g

EKE 0700:

The EKE Digital Platform Scale provides a reliable macro scale weighting facility up to 150 kg. maximum capacity with 5 g readability values, for fast and economical weight measurements. The balance are designed to perform precise and accurate measurements under the heaviest industrial conditions.

•    Capacity : 150 kg
•    Readability : 5 g
•    Platform Size : 600 x 700 mm
•    Dimensions : 550 x 650 x 400 mm
•    Weight (Approx.) : 30 kg
•    Additional Power Supply : Yes

Digital Platform Scale 150 kg x 10 g

EKE 0705:

The EKE Digital Platform Scale provides a reliable macro scale weighting facility up to 150 kg. maximum capacity with 5 g readability values, for fast and economical weight measurements. The balance are designed to perform precise and accurate measurements under the heaviest industrial conditions.

•    Capacity : 150 kg
•    Readability : 10 g
•    Platform Size : 500 x 600 mm
•    Dimensions : 550 x 650 x 400 mm
•    Weight (Approx.) : 30 kg
•    Additional Power Supply : Yes

Digital Platform Scale 150 kg x 50 g

EKE 0708:

The EKE Digital Platform Scale provides a reliable macro scale weighting facility up to 150 kg. maximum capacity with 5 g readability values, for fast and economical weight measurements. The balance are designed to perform precise and accurate measurements under the heaviest industrial conditions.

•    Capacity : 150 kg
•    Readability : 50 g
•    Platform Size : 780 x 1200 mm
•    Dimensions : 550 x 650 x 400 mm
•    Weight (Approx.) : 30 kg
•    Additional Power Supply : Yes

Mechanical Balance 310 g x 0.01 g

EKE 0800:

The mechanical Balance with their metal base construction, beam design and stainless steel pans, are durable , precise and easy- to – use. They are especially designed for on – site applications when electric power is not available.

•    Capacity : 310 g
•    Ratability : 0.01 g
•    Platform Size : Φ 89 mm
•    Dimensions : 510 x 205 x 230 mm
•    Weight (Approx.) : 2.5 kg

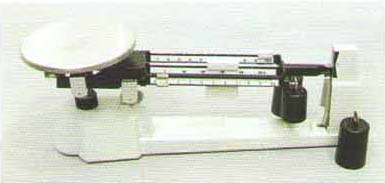

Mechanical Balance 2610 g x 0.1 g

EKE 0810:

The mechanical Balance with their metal base construction, beam design and stainless steel pans, are durable , precise and easy- to – use. They are especially designed for on – site applications when electric power is not available.

•    Capacity : 2610 g
•    Ratability : 0.1 g
•    Platform Size : Φ 147 mm
•    Dimensions : 540 x 195 x 210 mm
•    Weight (Approx.) : 3.5 kg

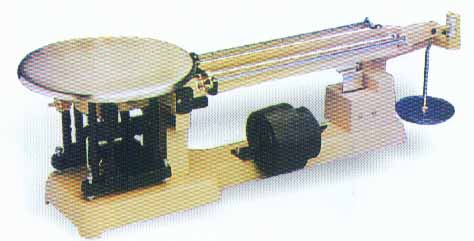

Mechanical Balance 20 g x 1 g

EKE 0820:

The mechanical Balance with their metal base construction, beam design and stainless steel pans, are durable , precise and easy- to – use. They are especially designed for on – site applications when electric power is not available.

•    Capacity : 20 kg
•    Ratability : 1 g
•    Platform Size : Φ 279 mm
•    Dimensions : 915 x 280 x 330 mm
•    Weight (Approx.) : 20 kg
