LABORATORY EQUIPMENT (WATER BATH)

Water Bath 15 Litter Capacity, 220 – 240 V 50-60 Hz

EKE 4000:

Water Bath are used in various material testing analyses.

Conducting temperature from 25 to 60°C. Water Bath are used for Asphalt (Marshall, Bitumen Testing) , Cement (Curing on conditioning ) applications

Internal surfaces are polished stainless steel with a sheet steel insulated outer case. Complete with re-circulating unit for temperature uniformity

-    Internal Dimensions : 160 x 330 x 300 mm
-    External Dimensions : 300 x 520 x 370 mm
-    Weight (Approx.) : 14 kg
-    For ambient to + 90°C ± 1°C

Water Bath 24 Litter Capacity, 220 – 240 V 50-60 Hz

EKE 4005:

Water Bath are used in various material testing analyses.

Conducting temperature from 25 to 60°C . Water Bath are used for Asphalt (Marshall, Bitumen Testing) , Cement (Curing on conditioning ) applications

Internal surfaces are polished stainless steel with a sheet steel insulated outer case. Complete with re-circulating unit for temperature uniformity

-    Internal Dimensions : 160 x 510 x 425 mm
-    External Dimensions : 300 x 690 x 370 mm
-    Weight (Approx.) : 17 kg
-    For ambient to + 90°C ± 1°C

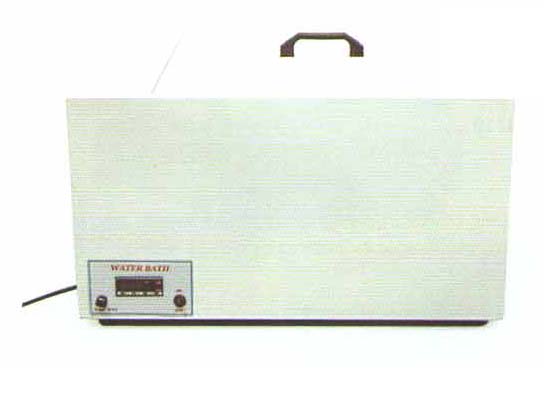

Water Bath 48 Litter Capacity, 220 – 240 V 50-60 Hz

EKE 4010:

Water Bath are used in various material testing analyses.

Conducting temperature from 25 to 60°C . Water Bath are used for Asphalt (Marshall, Bitumen Testing) , Cement (Curing on conditioning ) applications

Internal surfaces are polished stainless steel with a sheet steel insulated outer case. Complete with re-circulating unit for temperature uniformity

-    Internal Dimensions : 160 x 620 x 505 mm
-    External Dimensions : 300 x 820 x 580 mm
-    Weight (Approx.) : 24 kg
-    For ambient to + 90°C ± 1°C

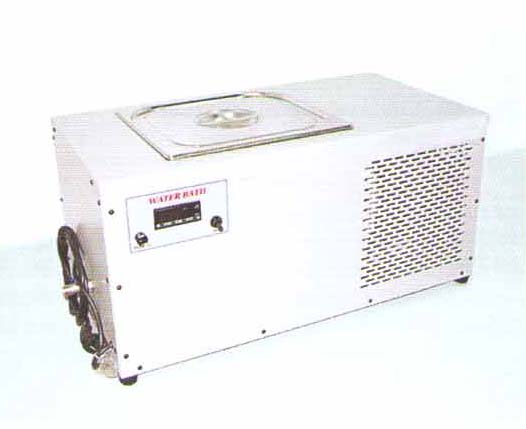

Water Bath 15 Litter Capacity With Cooler Unit , 220 – 240 V 50-60 Hz

EKE 4050:

Water Bath are used in various material testing analyses and with cooler units.

Conducting temperature from 25 to 60°C . Water Bath are used for Asphalt (Marshall, Bitumen Testing) , Cement (Curing on conditioning ) applications.

Internal surfaces are polished stainless steel with a sheet steel insulated outer case. The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity

-    Internal Dimensions : 160 x 330 x 300 mm
-    External Dimensions : 625 x 400 x 600 mm
-    Weight (Approx.) : 25 kg
-    For ambient to + 5°C  to  70°C ±0.5°C

Water Bath 24 Litter Capacity With Cooler Unit , 220 – 240 V 50-60 Hz

EKE 4055:

Water Bath are used in various material testing analyses and with cooler units.

Conducting temperature from 25 to 60°C . Water Bath are used for Asphalt (Marshall, Bitumen Testing) , Cement (Curing on conditioning ) applications.

Internal surfaces are polished stainless steel with a sheet steel insulated outer case. The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity

-    Internal Dimensions : 160 x 510 x 300 mm
-    External Dimensions : 625 x 400 x 760 mm
-    Weight (Approx.) : 35 kg
-    For ambient to + 5°C  to  70°C ±0.5°C

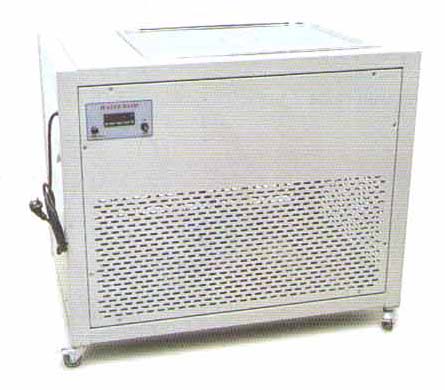

Water Bath 48 Litter Capacity With Cooler Unit , 220 – 240 V 50-60 Hz

EKE 4060:

Water Bath are used in various material testing analyses and with cooler units.

Conducting temperature from 25 to 60°C . Water Bath are used for Asphalt (Marshall, Bitumen Testing) , Cement (Curing on conditioning ) applications.

Internal surfaces are polished stainless steel with a sheet steel insulated outer case. The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity

-    Internal Dimensions : 160 x 620 x 510 mm
-    External Dimensions : 650 x 620 x 900 mm
-    Weight (Approx.) : 45 kg
-    For ambient to + 5°C  to  70°C ±0.5°C
