IN-SITU PENETRATION/ SHEAR

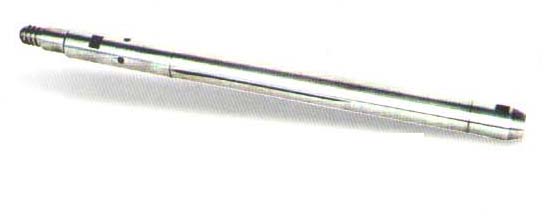

Standard Penetration Test Set
Ref. Standard : IS:2131, IS:9640

EKE 133:

Standard penetration test is a powerful tool for measuring the penetration resistance of the ground and for relating it to the degree of compactness’ of cohesion less soil and consistency of cohesive soil, the results can be used for design of foundations, SPT is widely used for measuring the undisturbed strength of the soil and for assessing its resistance to liquefaction due to ground vibrations caused by earthquakes or other dynamic forces,

The standard penetration resistance is measured as the number of blows “N” required to drive a split spoon sampler to a depth of 300 mm using a 65 kg weight falling freely through a height of 750 mm,

The equipment consists of the following:

•   EKE 016: Split Spoon Sampler 50.8 mm OD and 38 mm ID.

This equipments of the following :

•    EKE 01601: Body split lengthwise.
•    EKE 01602: :Shoe hardened with an inside cutting edge.
•    EKE 01603: Head fitted with a ball check valve and adapter to connect “A” type drill rod.
•    EKE 019-1: Drive Weight Cast iron, 63.5 kg, 78 mm bore  ID approx,
•    EKE 021: Guide pipe Assembly Bore 73 mm OD approx.
•    EKE 022: Tripod with pulley and built-in Ladder

Essential Extra:-
EKE 024 ‘A’ Type Drill Rod

Optional Extras:-
EKE 017: Split Spoon Sampler, with Brass Liner, 50.8 mm OD and35 mm ID

It consist of:-
EKE 01701: Body, Split length wise
EKE 0702 :Shoe, hardened with an inside cutting edge
EKE 01703: Head of split spoon sampler with adapter to connect A – type drill rod.

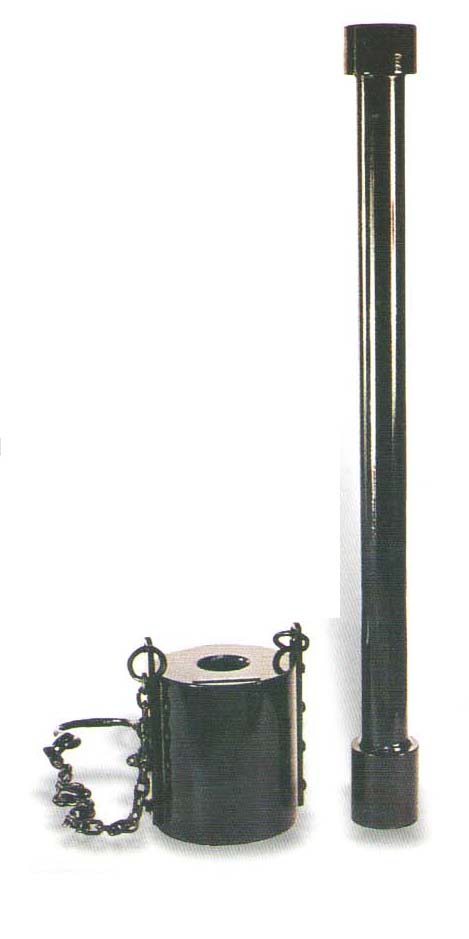

Dynamic Cone Penetration Test Apparatus
Ref. Standard : IS:4968 (Part-1)

EKE 134:

For determining the resistance of different types of soil strata to dynamic penetration of a 50 mm cone and thereby obtain an indication regarding their relative strength or density or both, the method helps reconnaissance survey of large area in a short time,

In some cases especially if the depth it may be difficult to pull out the cone after the completion of the test, hence the cone without threads should be used in case of deep sounding as it may be left in the ground, For shallow depths, generally upto 15 m, if the conditions permit, the cine with threads may be used.

It consists one each of:-
•    EKE 13101: Dynamic Cone,  plain 50 mm base dia.  and    cone angle of 60
•    EKE 13402: Cone Adopter , which fits on EKE 13401  cone with standard threads for type “A” drill   rod coupling,
•    EKE 13404: Dynamic Cone,  threaded for type “A” rod  coupling 60° cone angle, 50 mm base dia,
•    EKE 13404: Stand, for keeping  the rods vertical,
•    EKE 019: Drive Weight Steel, 65 kg Bore 45 mm ID approx.
•    EKE 021-1: Guide Pipe Assembly 41 mm OD Approx.
•    EKE 022: Tripod with built-in ladder

Essential Extra:-
EKE 024 ‘A’ Type Drill Rods

Static Cone Penetrometer 30 kN Capacity , Hand Operated
Ref. Standard : IS: 4968 (Part 3)

EKE 135:

The drive is made possible with the help of a  rack and pinion manually through a gearing arrangement. The gear box and pinion are fixed on two handles, sprockets and chain arrangement. The movement of the rack is guided by a bracket (attached to the rack) and two pillars.
The penetration resistance i.e. the pressure is indicated on hydraulic gauges through a hydraulic measuring head. Two pressure gauges of 15 cm dia dial and capacities 0-160kg/cm² are provided. An automatic cut-off valve, to protect the low capacity gauge from being overloaded is provided. The valve can be adjusted and locked at desirable values between 20 to 60cm². A provision is made to anchor the unit to the ground (with the help of four anchors supplied with the unit) and there is a provision for lateral movement of the unit so that subsequent tests could be performed without shifting the entire anchorage. A 10 cm² penetration cone with friction jacket is provided along with fifteen mantle tubes (non-uniform having an effective length of 1 m each with sounding rods for finding out the cone (point) resistance or jacket friction.

The equipment consist of the following replaceable parts:-
EKE 13501: Penetration Cone, steel 60° angle, 10cm² base area with friction jacket – 1 No
EKE 13502: Mantle Tube, non-uniform, 36mm OD at the two ends and reduced dia. in between with     sounding rod working length 1m – 1 No
EKE 13504: Load Measuring Head, with Automatic Cut off valve and Oil Can, without Pressure Gauge – 1No
EKE 13505: Pressure Gauge 0-60 kg/cm² –  1 No
EKE 13506: Pressure Gauge, 0-160kg/cm² - 1 No
EKE 13507: Screw Anchor, with Bolt – 4 Nos
EKE 13508: Anchor Driving Handle – 1 No
EKE 13509: T-Rod – 1 No
EKE 13510: Spanner -  No
EKE 13511: Extension Pipe 0.5 m long for Anchor Driving Handle – 1 No
Note : Mantle Tubes with uniform diameter can be ordered at extra cost

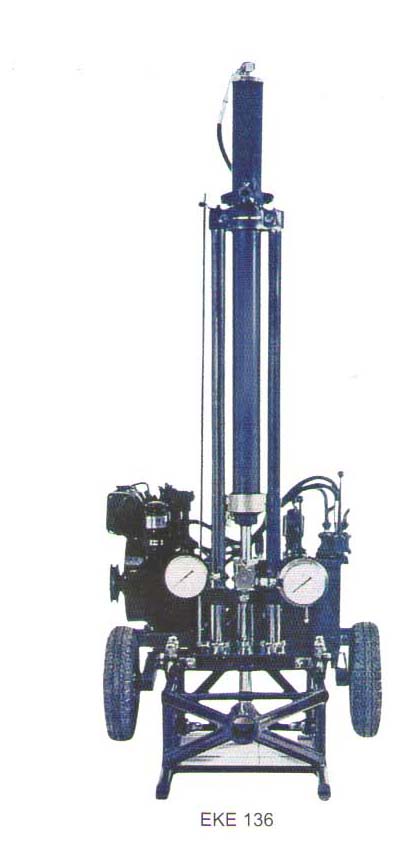

Static Cone Penetrometer  Capacity 100 kN (Engine Driven)
Ref. Standard : IS: 4968 (Part 3)

EKE 136:

For reaching greater depths and to facilitate easy and constant rate of penetration of 1 to 2.5 cm/sec of the cone, the engine - driven Static Cone Penetrometer of 100 kN (10,000 kgf) capacity is preferable

The equipment consists of a hydraulic pump driven by a Diesel Engine. The whole system is mounted on the towable tritely fitted with pneumatic wheels. The pumping unit and ram are connected by means of flexible pipes through a direction control valve. The hydraulic ram moves on a two pillar stand mounted on a trolley

The equipment consist of the following replaceable parts:-
EKE 13601: Penetration Cone, steel 60° angle, 10cm² base area with friction jacket – 1 No
EKE 13602: Mantle Tube, non-uniform, 36mm OD with   sounding rod working length 1m – 30 Nos
EKE 13503: Load Measuring Head, with Automatic Cut off valve and Oil Can, without Pressure Gauge – 1No
EKE 13604: Pressure Gauge 0-600 x5 kg/cm² –  1 No
EKE 13605: Pressure Gauge, 0-100 x 1 kg/cm² - 1 No
EKE 13606: Trusses – 2 Nos
EKE 13607: Screw Anchor 45 cm – 6 Nos
EKE 13608: Screw Anchor 30 cm – 6 Nos
EKE 13609: Screw Anchor 20 cm – 6 Nos
EKE 13610: Screw Anchor Rod with cone – 6 Nos
EKE 13611: Driving Handle for Screw Anchor  – 1 No
EKE 13612: Extension pipe for Handle – 4 Nos
EKE 13613: Clamping Screw with Nuts – 6 Nos
EKE 13614: Extractor Tube with Connector – 1 No
EKE 13615: Tool Box

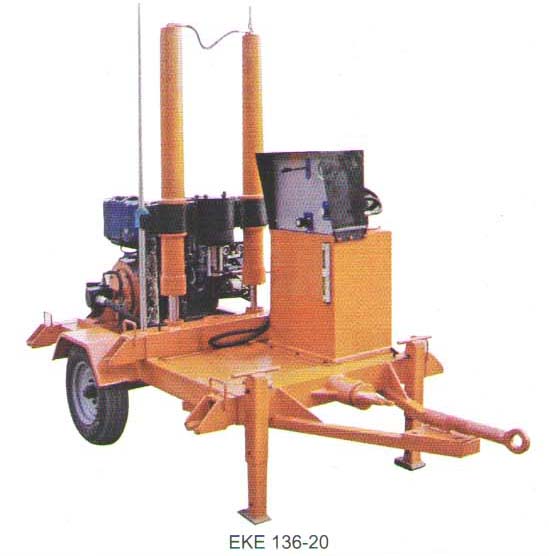

Static Cone Penetrometer Capacity 200 kN (Engine Driven)
Ref. Standard : IS: 4968 (Part 3)

EKE 136 –20:

20 ton capacity static cone penetrometer machine with standard accessories for 30 meter depth. Digital read out for load and displacement 12 volt electronics operated sensors and transducers. Hydraulic operated anchor driving system provided.

Technical Specifications:-
It is trailor mounted machine with two wheel properly aligned and can be towed with any vehicle to field area. It has 8 points anchoring system with independent hydraulic motor driving control valve fitted on movable driving assembly.

Prime Mover: 20 Hp Diesel engine from Kirloskar model DA-20 mounted on anti vibration pad.

Hydraulic Cylinders: Two cylinders having 100 mm ID  and 1100 mm stroke working simultaneously . To achieve optimum load required.

Master Control Panel: located at front of the cylinders and driving unit. It has digital readout panels for load applied on cone and displacement in mm along with directional control valves, pressure relief valves and pressure gauges.

Displacement System: It is digital system to check the travelling of cone in the soil in millimeters. The whole electronics system is operated by 12 volt DC battery provided with engine.

The equipment consist of the following replaceable parts:
EKE 13601: Penetration Cone, with friction jacket – 1 No
EKE 13602: Mantle Tube with   sounding rod 1 m  length  – 30 Nos
EKE 136-2002: Hydraulic motorized Anchor driving Assly – 1No
EKE 136-2003 :Anchors 150 mm dia. – 8 Nos
EKE 136-2004: 220 mm dia. – 8 Nos
EKE 136-2005: 350 mm dia. – 8 Nos
EKE 136-2006: Anchor Pipes – 8 Nos
EKE 136-2007: Anchors Bottom Shoe bolt – 8 Nos
EKE 136-2008: Locking Bolts – 8 Nos
EKE 136-2009: Mantle tube extractor assembly – 1 No
EKE 136-2011: Pin for Static Load checking – 1 No
EKE 136-2012: Tarpaulin Cover – 1 No
EKE 136-2013: Load cell with digital indicator – 1 No


Field Vane Shear

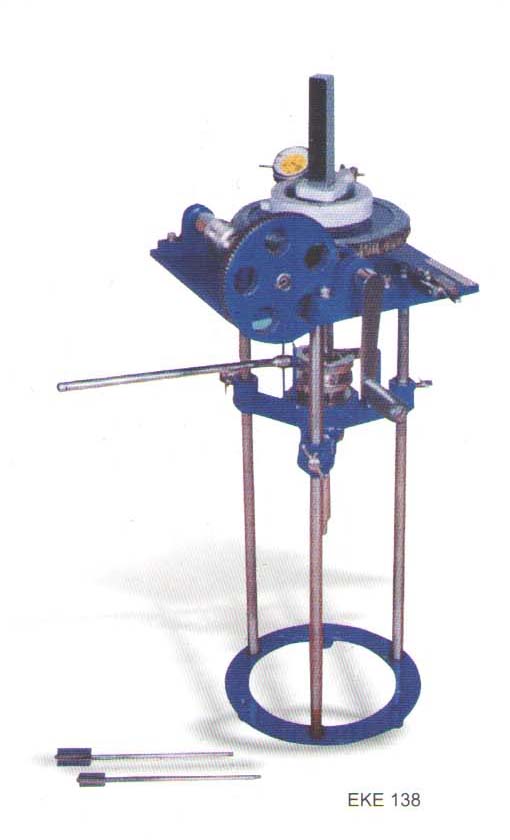

In- Situ Vane Shear Test Apparatus

EKE 138:

This apparatus is designed for conducting in-situ vane shear test from the bottom of bore hole in saturated cohesive deposits, for determining their in place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque  ring and is reared to a crank. The torque ring has a section cut from it and deforms as torque is applied and the resultant deformation is indicated by a dial gauge, A pointer is provided for registering the relation of the vane.
A detachable stand is provided to anchor the instrument, An attachment to securely hold the string of rods is provided.
A calibration curve to convert the dial gauge readings to kg-cm of torque is also supplied,

The outfit comprises the following:

EKE 13801: Torque Applicator Assembly, Capacity 2,000 kg-cm, Complete with stand     -    One
EKE 13802: Vane (with vane rod) 37.5 mm dia. x 75 mm high  -    One
EKE 13803: Vane (with Vane Rod), 50 mm dia. x 100 mm high  -    One
EKE 13804: Torque Rod (square cross section) 60 cm long  -    One
EKE 13805: Rods (quick coupling type) 1 m long - Twenty five
EKE 13806: Rods (quick coupling type) 0.5 m long    -    One
EKE 13807: Dummy Rod   -    One

Optional Extras:
EKE 13808: Vane (With Vane Rod), 65 mm dia. x130 mm high
EKE 13809: Vane (With Vane Rod), 75 mm dia. x150 mm high
EKE 13810: Vane (With Vane Rod), 100 mm dia. x200 mm high
EKE 13811: Guide, with ball bearing arrangement, for alignment of the string of rod, for use with 10 cm casing pipe
EKE 13812: Guide, with ball bearing arrangement, for alignment of the string of rod, for use with 15 cm casing pipe

Note- Drilling equipment, including casing for borehole and jacking arrangement which are required for performing the test, do not from part of the outfit.
