Impact Tester –Capacity 30 KgM/300 Joules
Impact Tester –Capacity 30 kgM/300 Joules

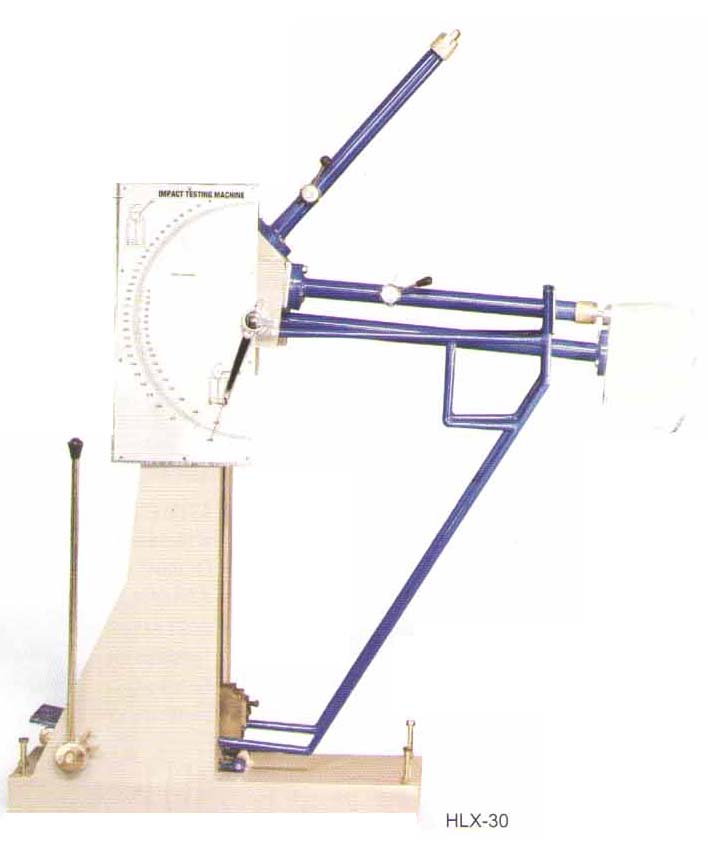

HLX – 30:
Designed for conducting CHARPY. IZOD and IMPACT TENSION Tests. The test methods conform to IS 1757-1961, IS 1499-1959 and BS 131 Part 2% , 3, IS 1598-1960, BS 131 (Part 1) and ASTM E32-47T
The impact energy absorbed by the specimen during rupture is measured as the difference between the height drop before rupture and the height of rise after rupture of the test specimen and is read on the dial scale.
Features:
• Release of Pendulum by Hand operation
• Safety guards for Protection
• Breaking Arrangement provided to arrest the swing of pendulum after specimen failure.
Capacity 30 kgM / 300 Joules:
| Charpy and Impact Tension Test | IzodTest | |
| Pendulum drop angle | 140° | 85° |
| Pendulum effective weight | 20-59 kgs | 21.79 kgs |
| Pendulum Speed | 5.3465 m/sec. | 3.857 kgs. |
| Min. Graduation | 0.2 kgM (2 J) | 0.2 kgM (2 J) |
| Distance of axis of hammer rotation and centre of test piece/point of test piece hit by hammer |
825 mm | 825 mm |
| Max. permissible loss by friction X windage , etc. |
0.5% max. Impact Energy |
Motorized Pendulum Impact Tester, 150joules
Motorized Pendulum Impact Tester , 150 Joules
Ref. Standard : ASTM E23, EN 10045, ISO 148, GOST 9454; AS 1544; JIS Z 2242, B7722
EKE 0150:
Impact test determines the amount of energy absorbed by a material during fracture. This absorbed energy is a measure of a given materials toughness and acts as a tool to study temperature dependent brittle – ductile transition. It is to determine whether the material is brittle of ductile in nature.

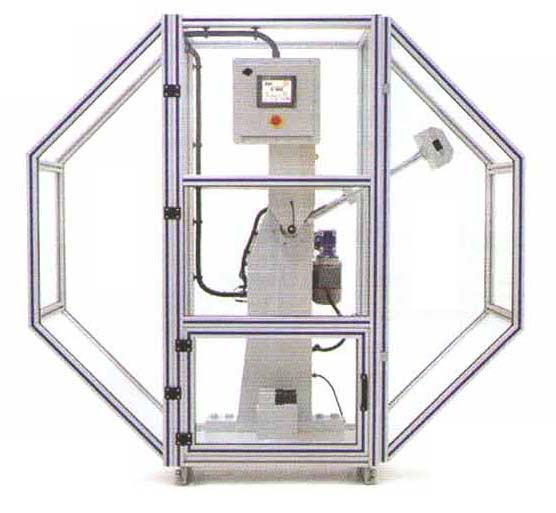

EKE 0150 motorized pendulum impact tester is high performance device and ideal for testing metals to Charphy and Izod standards at capacity of 150 Joules. Constructed with solid steel frames , ENKAY motorized pendulum impact testers are machines that you can trust and is safe , quick and easy to operate . It can be fitted with accessories for Charphy and Izod Tests. Each test requires a specific vice/fixture, specimen adapters, and hammers. Operation of the machine is controlled and test results are controlled by using colored touch screen digital control unit. Test results such as energy absorbed calculated and displayed on the control unit.
With EKE 0150 motorized pendulum impact tester, after the test, the pendulum is automatically captured and returned to the starting position. His feature enables the starting angle setting to be varied and optimum test parameters such as impact speed and energy loss on impact to be determined.
Universities, Laboratories, of the Institutions, Automotive and Aero Companies, Research and R&D Labs, as well as steel plants are typical customers for these kinds of testing systems
Main Features:
• Available energy is 150 J of Charphy and Izod Testing
• Motor – driven raising of hammer with auto – return after test for increased productivity and operator safety
• Electromagnetic brake/clutch control mechanisms respond quickly for improved operation
• Conveniently located controls for efficient testing
• Clearance between supports of 40 mm
• Fall angle is 150 degree
• Suitable for specimens of 10 x 10 x 500 mm
• Cabin door sensitive automatic testing mode that enables the fast and continuous testing and manual mode for more control for the
operator.
• Highly sensitive encoder to take the angle readings for every position of the hammer and to capture the very peak point of the rise angle.
• Direct verification menu to verify the losses and calculate the error as described in the standards (air resistance, bearing resistance, etc.)
Standards for EKE Series:
• ASTM E23 Standard Test Methods for Notched Bar Impact Testing of Metallic Materials
• EN 10045 Charphy and Izod Test on Metallic Materials
• ISO 148 Metallic Materials – Crarphy Pendulum Impact Test
• GOST 9454 Impact Bending Test Method at Low, Room and High Temperatures.
• Fixtures/ strikers are available for each test standard as well as customized tests.
- Max. Absorbed Impact (J) : 150
- Raised Angle : 150°
- Max. impact speed (m/s) : 5.25
- Standard Span (mm) : 40
- Size of Specimen ( mm) : 10 x 10 x 55
- Round angle of jaws (mm) : R1-15
- Round angle of striking edge ( mm) : R2-2.5
- Power supply : 3 phs, 380 V, 50 Hz or 1 Phs , 220 V, 60 Hz
- Overall Dimensions : 2200 x 950 x 2100 mm
- Weight (Approx. : 800 kg
Main Accessories:
• Pendulum (Needle Capacity)
• Specimen centering plate (U.V)
• Anchor bolts (M22 x 300 mm): 4 Pcs
• Safety closure
Optional Accessories:
• Full close Aluminium alloy safe cabin
• ASTM E23 striking edge (R8mm)
• Self centering tong for setting charpy test specimen
• Anvils and pendulums for Charphy, Izod and tensile impact testing
• Temperature Chamber for impact specimen
• Notch cutter for impact specimen
• Low Temperature Freezers for impact specimens.
