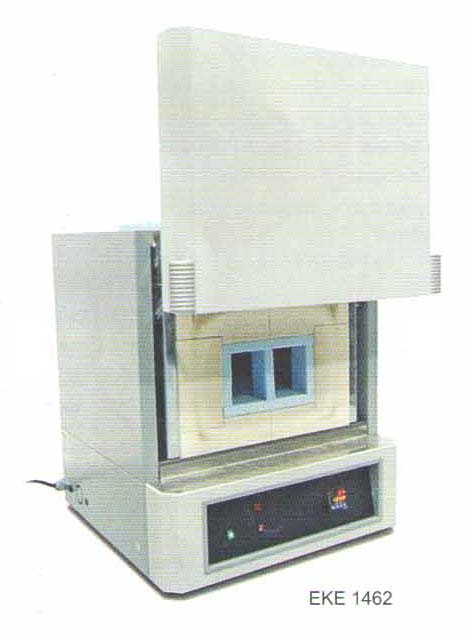

Muffle Furnace 5 Litter , 1200°C
Muffle Furnace 5 Litter , 1200°C , Programmable Timer, 220-240 V 50-60 Hz
EKE 1462:
The Muffle Furnace are widely for determining various properties of construction materials, and they cover a temperature range 1200°C and front loading for easy operation and of a double skin construction to maintain a cool outer case.
Excellent temperature control is provided by a PID digital control system. A vertical counter balanced door keeps the hot insulation away from the operator which opens in an upwards movement. The Furnace has a safety switch which isolates the power the door is opened.
Technical Specifications :
• Temperature Controller : PC 442/2
• Max. Temperature : 1200°C
• Max. Continuous Temperature : 1150°C
• Temp. Deviation at Set Point : ± 2°C
• Heat Up Time to Max. Temp. : 50 min
• Internal Volume : 5 L
• Phase : 1
• Internal Dimensions : 140 x 180 x 200 mm
• External Dimensions : 650 x 550 x 580 mm
• Weight (Approx.) : 56 kg
• Power : 2000 W

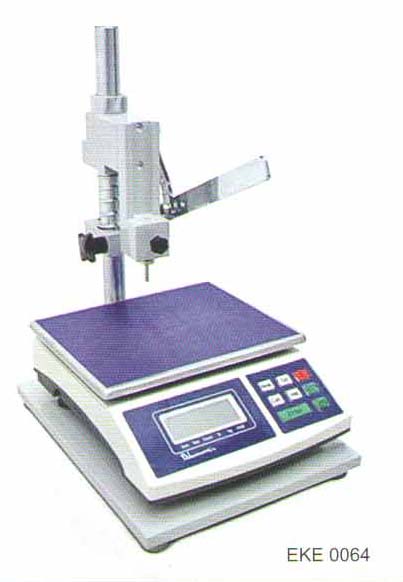

Workable Lift, Stiffening Time And Concrete Sitting Time Apparatus
Workable Lift, Stiffening Time and Concrete Setting Time Apparatus
Ref. Standard EN 1015-9, 13294; ASTM C403
EKE 0064:
EKE 0637: Digital Balance , 30 kg/5g
EKE 0705: Needle Set (645, 323, 161, 65, 62, 16 mm²) for EKE 0064
The apparatus is used for determining the stiffening time of repair products and systems comprising hydraulic based mortar and concrete (CC), including those modified by the addition of polymears (PCC) and workable life of fresh mortor after the mixing procedures.
The apparatus consists of a vertical loading pillar with a base. Supplied complete with a brass penetration rod with washer and a sample container (Φ75 x 75 mm aluminium)
EKE 0705: Needle Set for concrete setting time test acc. To ASTM should be ordered separately
EKE 0637: Digital Balance for the initial setting time, workable life and stiffening time should be ordered separately as well
