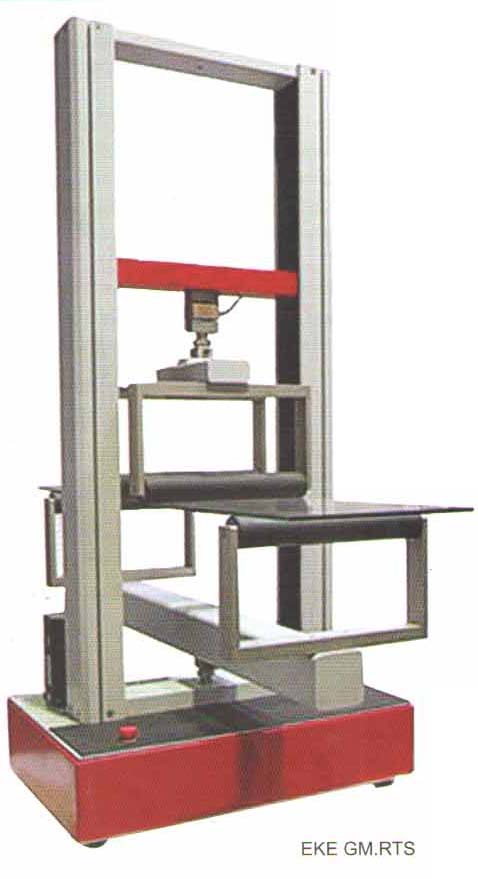

GLASS MECHANICAL RESISTANCE TESTER TEST SYSTEM

Glass Mechanical Resistance Tester Test System

EKE GM.RTS:

Technical Specifications:
-    Device Capacity : 10 kg
-    Electronic Unit : German origin FULL Controller Control : 1) Controller 2) Hand Control 3) Computer Software Testing &
     Motion ( Load and displacement Controlled)
-    Load and Displacement Control Sensitivity : 0.0001 mm / 0.002 kN
-    Load Resolution : ± 180000 steps
-    Min. Load Control Speed : 0.001 kN/s
-    Load Reading Resolution : Resolution is a Maximum of ± 0.2% of Reading Load
-    Test Speed Accuracy : ± 0.1% of Crosshead Motion
-    Accuracy : ± 0.1%
-    Max. Displacement Control Speed : 1200 mm/min
-    Min. Displacement Control Speed : 0.001 mm/min
-    Test Space : At least 425 mm (Width ) x 1200 mm (height)
-    Computer Software . Available (Test & Motion)
-    Power : 220-230 V AC , 50 Hz, AC Supply
