Ductility Testing Machine (New Improved Version)
Ductility Testing Machine (New Improved Version) -220-240 V 50-60 Hz
Ref. Standard EN 13398; ASTM D113, D6084, AASHTO T51
EKE 0400:
EKE 0402: Ductility Briquette Mould ASTM D113 and AASHTO T51
EKE 0404: Ductility Mould Base Plate
EKE 0406: Ductility Mould, ASTM D6084, AASHTO T300 and EN 13589 (Force measurement ) , Brass
EKE 0408: Ductility Mould
• The EKE 0400 Ductility Testing Machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed of 50 mm/min. it is designed for testing 4 specimens simultaneously . The Internal tank is made of Stainless Steel. The bath is fitted with an immersion heater in order to obtain (in normal conditions), the 25°C test temperature
• Each machine comprises speed control and water circular to maintain the homogeneous water temperature.
Mould and Mould base plates should be ordered separately for all type machine
 -220-240 V 50-60 Hz.jpg)
Ductility Testing Machine (New Improved Version) With Cooling Unit
Ductility Testing Machine (New Improved Version) With Cooling Unit, -220-240 V 50-60 Hz
Ref. Standard EN 13398; ASTM D113, D6084; AASHTO T51
EKE 0420:
EKE 0402: Ductility Briquette Mould ASTM D113 and AASHTO T51
EKE 0404: Ductility Mould Base Plate
EKE 0406: Ductility Mould, ASTM D6084, AASHTO T300 and EN 13589 (Force measurement ) , Brass
EKE 0408: Ductility Mould
• The EKE 0420 Ductility Testing Machine with Cooling Unit has the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed of 50 mm/min. it is designed for testing 4 specimens simultaneously and with an additional cooling unit The Internal tank is made of Stainless Steel. The bath is fitted with an immersion heater in order to obtain (in normal conditions), the 25°C test temperature.
• Each machine comprises speed control and water circular to maintain the homogeneous water temperature.
Mould and Mould base plates should be ordered separately for all type machine
 -220-240 V 50-60 Hz.jpg)

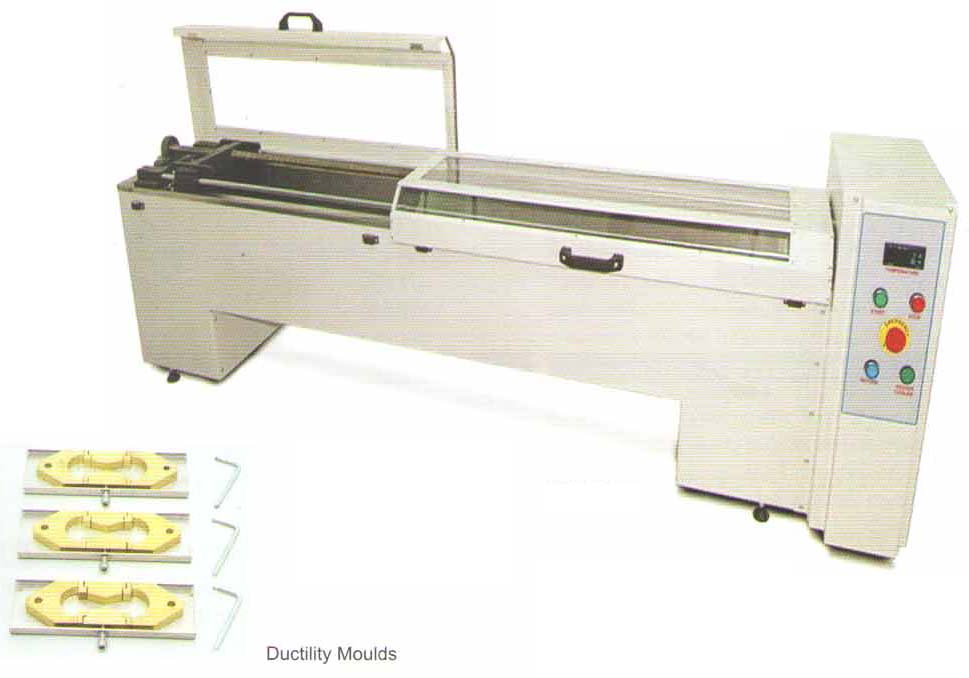

Force Ductility Testing Machine (New Improved Version)
Force Ductility Testing Machine (New Improved Version) EN 13589, 220-240 V 50-60 Hz
Ref. Standard EN 13589, 13698, 13703; ASTM D113, D6084; AASHTO T51 , AASHTO T300
EKE 0430:
EKE 0402: Ductility Briquette Mould ASTM D113 and AASHTO T51
EKE 0404: Ductility Mould Base Plate
EKE 0406: Ductility Mould, ASTM D6084, AASHTO T300 and EN 13589 (Force measurement ) , Brass
EKE 0408: Ductility Mould
The EKE 0430 Ductility Testing Machine has 4 load cells. The accuracy of load cells are ± 0.1 N, with a maximum capacity of 300 N. The EKE 0430 has a cooling unit EKE 0430 model is equipped with TFT Graphic Display Automatic Control and Data Acquisition Unit.. failure condition can be done loaded to the Unit. Speed can be set and load – displacement curves are drawn through the software.
• Elongation measurement through motor encoder
• 4 simultaneously load measurement with 18 bit resolution
• Speed control with servo AC motor between 0.01 to 100 mm/min
• Ethernet connection for computer interface
 EN 13589, 220-240 V 50-60 Hz.jpg)

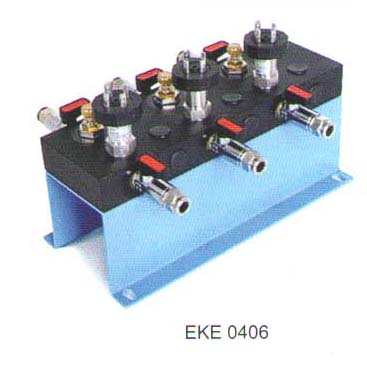

Block With Three Connection Lines For Triaxial Test
Block with Three Connection Lines for Triaxial Test
EKE 0406:
The pressure Transducer is used for the measurement of cell or back or pore pressure of water in triaxial test systems and also should be used with a ENKAY EK.EC 100 TFT Unit (EKE-4390) or datalogger (EKE 0320). The Block for Triaxial test cells are used for connection of the pressure transducers and de- airing in the water hoses
