FIELD INSPECTION AND SAMPLING

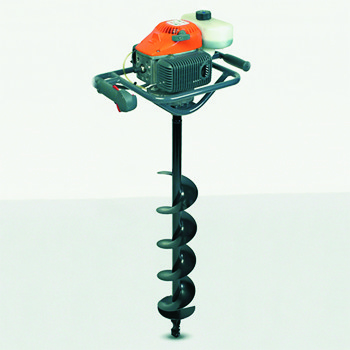

EKE-0005: Augers Power Head

EKE-0008: Single Flute Bit Ø:80x1000 mm

EKE-0010: Single Flute Bit Ø:100x1000 mm

EKE-0015: Single Flute Bit Ø:150x1000 mm

EKE-0020: Single Flute Bit Ø:200x1000 mm

Ref. Standard ASTM D420, D1452; AASHTO T86, T202; CNR a. VI n.25

Used in conjunction with sampling tubes to obtain disturbed or undisturbed soil samples. 47.7 cc displacement, 40:1 reduction ratio, 80-100-150-200 mm bit diameter. The Auger should be ordered separately.

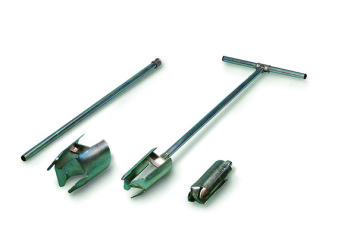

EKE-0024: Hand Operated Auger Boring Set

EKE-0026: Extension Rod for EKE-0024, 1 meter

EKE-0024 Hand Boring and Sampling Set for augering down to a depth of 5 meters.

The EKE-0024 Hand Operated Auger Boring Set consists of a T-Handle with 1 m Rod, 80 mm, 100 mm and 150 mm diameter Auger Heads.

Extension rods should be ordered separately

EKE-0050: Water Level Indicator 50 m Cable Length

EKE-0052: Water Level Indicator 100 m Cable Length

EKE-0055: Water Level Indicator 150 m Cable Length

EKE-0058: Water Level Indicator 200 m Cable Length

The Water Level Indicators (Electric Contact Meters) are portable, easy-to-use and reliable instruments for measuring water level and total depth in bore holes, wells, observation pipes, reservoirs, as well as control of pumping tests.

As soon as the measuring probe electrode touches the water surface, the signal indicator on the instrument lights up with an audible alarm. The water level can be read on the measuring tape in meters (m) and centimeters (cm)

Technical Specifications

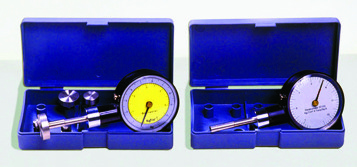

UTS-0070: Pocket Dial Penetrometer, 0-6 kgf/cm 2

UTS-0072: Pcket Dial Penetrometer, 0-14 kgf/cm 2

UTS-0075: Pocket Dial Penetrometer, 0-6, 0-11 kgf/cm 2

UTS-0078: Pocket Penetrometer, 0-5 kgf/cm

The UTS Series of Pocket Dial Penetrometers are ideal instruments to determine the penetration resistance of cohesive soil, especially when various range measurements are required

UTS-0075 Pocket Dial Penetrometer with respect to range and plunger diameters is avaliable for specific applications

All Dial Penetrometer models have 60 mm. Dial Diameter and designed with Peak Hold Feature

UTS-0075 Pocket Dial Penetrometer is used for evaluating the angle of internal friction “j” of sandy soils and the cohesion “c” 2 in clay soils. Dual scale: 0-6 kgf/cm for 6.35 mm diameter 2 plunger and 0-11 kgf/cm.

The UTS-0078 Pocket Penetrometer is a portable and easy-touse equipment to perform field classification of cohesive soils in terms of consistency, shear strength and approximate unconfined compressive strength

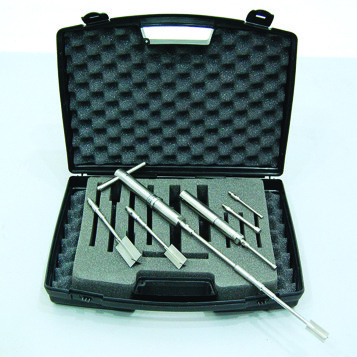

UTS-0080: Field Inspection Testing Kit

UTS-0082: Field Inspection Pocket Vane Tester

UTS-0082/1: Extension Rod for UTS-0082 2

UTS-0084: eavy Duty Pocket Penetrometer, 0-10 kgf/cm^2

Ref. Standard ASTM D2573

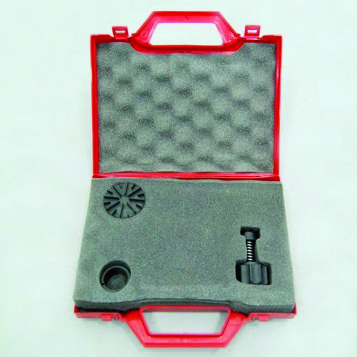

The UTS-0080 Field Inspection Testing Kit is ideal for geotechnicians, geologists and agronomists. It consists of the UTS-0084 Pocket Penetrometer and of the UTS-0082 Field Inspection Pocket Vane Tester. The instrument is contained in a practical carrying case.

UTS-0080 Field Inspection Testing Kit

The UTS-0082 Field Inspection Pocket Vane Tester is especially designed to measure the undrained shear strength (CU) of cohesive soils, consists of a cylindrical body with a torsional spring and three interchangeable vanes of different sizes used depending upon the expected strength of the soil. The height/diameter ratio of all vanes is 2. During operation the vane is driven for 5-6 cm into the soil and then turned with the handle. Deep measures (i.e. on the top of undisturbed samples) can be obtained using the extension rod. All stainless steel construction. Supplied in a plastic case. Extension rod should be ordered separately.

UTS-0082 Field Inspections Pocket Vane Tester

The UTS-0084 Heavy Duty Pocket Penetrometer is designed for making field classification of cohesive soils in terms of consistency, shear strength and approximate unconfined compressive strength. Heavy duty model is all stainless steel construction, three interchangeable tips: 4.5 mm dia. for very hard soil, 6.35 mm for medium and soft soil, 8.98 mm for soft soil. Supplied complete with plastic case

UTS-0084 Heavy Duty Pocket Penetrometer

UTS-0088      Pocket Shear Vane Device

The UTS-0088 Pocket Shear Vane Device is a practical equipment for determining the shear strength of cohesive soils. It is widely used to perform onsite measurements of excavations covering trenches and test pits, thin-wall or split core samples, by providing a quick and efficient method for shear strength measurements and it is also suitable for laboratory usage. Pocket Shear Vane Device is supplied in a plastic carrying case.

Ref. Standard BS 1377:9

The UTS-0095 TRL Dynamic Cone Penetrometer is used for the rapid, in situ measurement of structural properties of existing road pavement constructed with unbound materials.

The design of the DCP is similar to that described by Kleyn, Maree and Savage (1982); it incorporates an 8 kg weight dropping through a height of 575 mm and 60° cone having a diameter of 20 mm. with the standard DCP measurements can be made down to a depth of approximately 850 mm or when extension shafts are used to a recommended maximum depth of 2 m.

Readings are usually taken after a set number of blows, changing the number according to the strength of the layer being penetrated. A typical test takes only a few minutes, therefore the instrument provides a very efficient method of obtaining information that would normally require the digging of test pits.

The penetration hammer assembly consists of 8 kg hammer, hammer shaft, anvil with plastic plate coupling for ruler and handle.

The TRL Dynamic Cone Penetrometer is supplied complete with:

• A hammer assembly,
• Penetration rod,
• 2 piece 60° cone,
• Metal plate coupling for ruler,
• Segmented adaptor for extension rods,
• Segmented upper extension rod,
• Segmented lower extension rod,
• 2 piece 13-17mm AF spanners,
• 3mm AF hex wrench,
• Tommy bar,
• A bottle of adhesive,10cc,
• Users Manual
• Steel ruler, Carrying Case, heavy-duty wooden

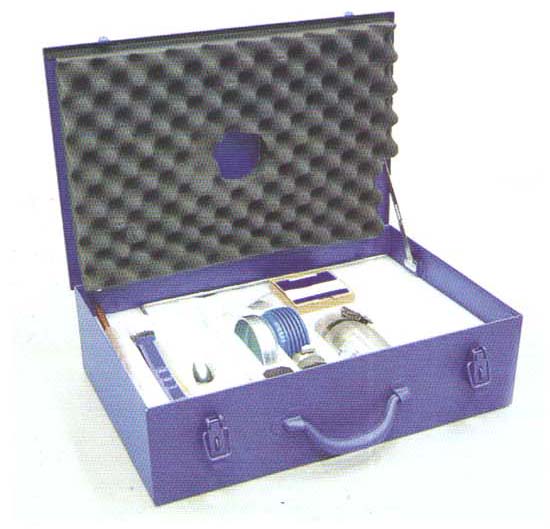

Universal Moisture Tester (Carbide Meter)
Ref. Standard : BS 6576
EKE 0150
The EKE 0150 Universal Moisture Tester (Carbide Meter) is used for the determination of the moisture content by using the calcium carbide method. The soil sample is introduced into the bottle with the reagent. The water reacts with the calcium carbide and develops a gas pressure, which is indicated on the manometer and easily converted in percentage of moisture.

The Universal Moisture Tester supplied complete with;
•    Carbide Ampoules , 20 pcs
•    Analog Manometer
•    Digital Balance
•    Hammer
•    Chisel
•    Digital Timer
•    Metal Carrying Case
•    Other Accessories

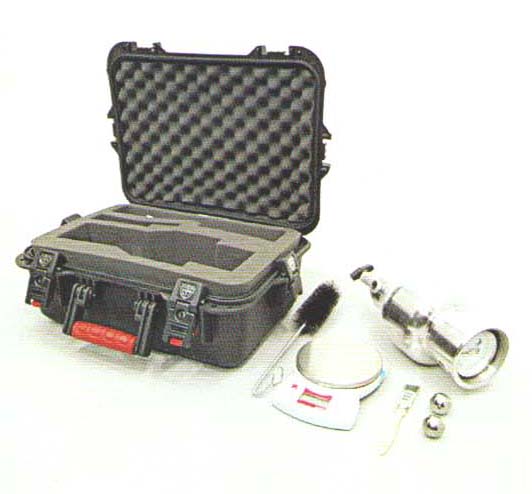

Speedy Moister Tester
Ref. Standard : ASTM D4944; AASHTO T217
EKE 0155

The EKE 0155 Speedy Moisture Tester is used to determine the moisture content of soils, sand and fine aggregates in the field. It is an easily and portable method. The amount of gas, which is given off when water and calcium carbide are mixed and react , is directly proportional to the amount of water present in the sample and results in percentage moisture are taken from a pressure gauge.

Those model is used for moisture determination of a 25 g specimen with 20% maximum moisture content. EKE 0155 Speedy Moisture Tester dose not include Calcium Carbide Powder.

The Speedy Moisture Tester Is supplied complete with ;
•    Vessel with Gauge
•    Digital Scale
•    Scoop
•    Cleaning Brush
•    Cleaning Cloth
•    Two Steel Pulverizing Balls
•    Plastic Case

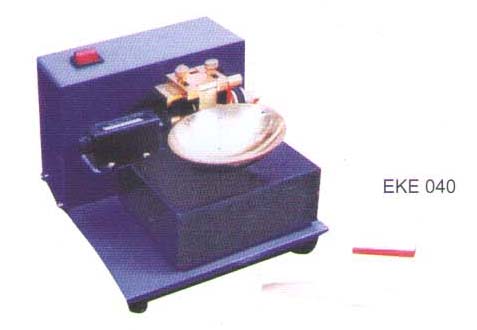

Liquid Limit (Casagrande Method) Motorized
Ref. Standard : IS:2720 (Part5), IS: 9259, BS:1377
EKE 040:
Mechanical method known as the casagrande method has been a standardized test in soil mechanics for many years.
•    High quality of design ensures consistency of results
•    Satisfies international standards
•    Motorized model with integral blow counter is also available

The liquid limit device consist of a hard rubber base carrying a sliding carriage assembly to which a bras cup in hinged. The cup is raised and allow to fall through a height of 1cm on to the hard rubber  with the help of a lead screw provided at the back of the sliding carriage supplied complete  with casagrande Grooving tool and gauge block.

Liquid limit device , motorized supplied  with counter and EKE 04101 casagrande grooving tools and gauge block suitable operation on 50Hz single phase AC supply .

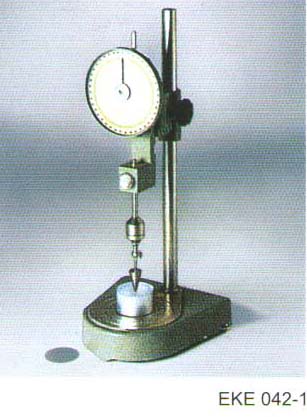

Cone Penetrometer Method
Ref. Standard : IS:2720 (Part5), BS:1377
EKE 042-1:
Cone penetrometer method has several advantages over the casagrande method it is easier of perform this test and the results are not so depend on the design of the apparatus  or the judgment of the operator  it is applicable to a wider range of soils the test is based on the relationship between moisture content and the penetration of the cone into the soil sample the moisture content at a given depth of penetration of the cone is taken as the liquid limit.


As an inferential test empirical correlations have been developed to assess the shear strength of the soils at liquid limit.

    Reduces operator error
•    Applicable to a wide range of soils
•    Gives reproducible test results
•    Provides direct measurement of Penetration

Cone Penetrometer, Automatic
(Universal Penetrometer)

Enable the determination of liquid limit simply and quickly. The unit is supplied of complete with a stainless steel penetration test cone 35 mm long with smooth polished surface with an angle of cone 300. facility exists for adjusting cone height in relation to the specimen.
Cone Penetrometer consists of one each following

EKE 042-1: Universal penetrometer.
EKE 04201: Penetration Test cone.
EKE 04202: penetration test cup   55 mm dia x 40 mm deep.
