ELECTROMECHNICAL SERVO ACTUATORS/ SERVO ELECTRO-MAGNET (LINEAR) ACTUATORS

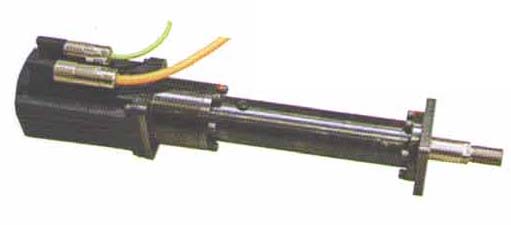

Electro Mechanical Servo Actuators

EKE BMT-A/EME:

Tubular Linear Servomotors offer an advantage in Weight, Size, Maintenance Costs, Environmental Considerations, Precision, Speed, Control, Programmability , Readability and Noise. The patented technology offers the motion control industry an alternative to Hydraulic, Pneumatic and Mechanical Power Sources    for Linear Motion Control. The Linear Motors are easy to Install and Integrate.

Position and Force are fully programmable and there is no backlash or Fluid Compressibility to Compromise Position Accuracy.

Typical Applications:
•    Robotics and Factory Automation
•    Processing Equipment
•    Packaging Equipment
•    Pumping/Dispensing
•    Material/Product Testing
•    Machine Tools
•    Textile (Tufting Equipment)
•    Paper Converting
•    Transfer Equipment
•    Automation Welding

Technical Specifications:
-    Max. displacement : 20 cm
-    Max. Acceleration : ± 2 g
-    Max. Speed : 40 cm/s
-    Operating Frequency range of 1-10 Hz
-    The servo motor power : 900 W
-    Screw shaft 5 mm/rev.
-    Dynamic Load carrying capacity of at least 60 kg. F

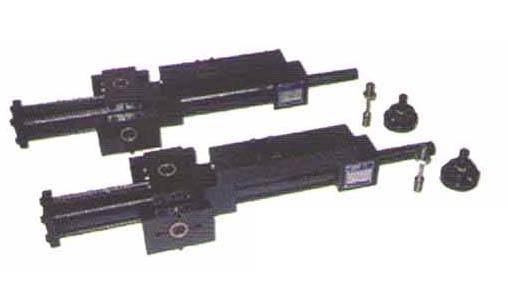

Servo Electro- Magnetic (Linear) Actuators

EKE BMT-A Series:

This Actuator is Designed to Meet and exceed the demanding requirements of Defense, Test, Automation etc. System Control Applications.

The Actuator can be used for Upgrading Hydraulic Actuation Systems or for new Electro- Mechanical Actuation Control Systems.

Technical Specifications:
•    Peak Force : 28.8 kN
•    Rated Force : 11.6 kN
•    Rated Speed : 280 mm/sec.
•    No-Load Speed : 318 mm/sec
•    Peak Static Holding Force : 112 kN
•    Supply Voltage : 18-32 VDC
•    Stiffness : 221 kN/mm
•    Backlash : 0.076 mm
•    Weight : 120 kg
•    Operating Stroke : 215 mm
