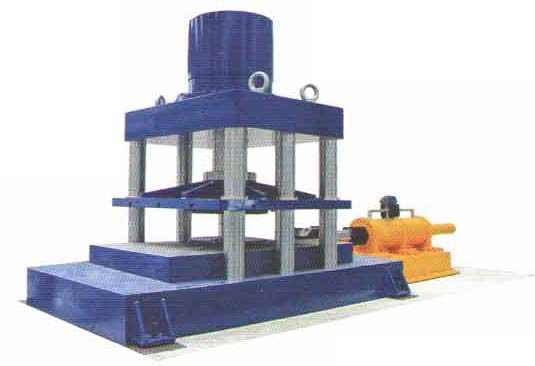

Earthquake Isolator Testing Systems
Earthquake Isolator Testing Systems
EKE BMT-El:
ENKAY EL Series earthquake Isolator test systems are designed for Routine Production Control Tests according to EN 1337 and EN 15129 etc. Standards, and Evaluation of Isolator Design Parameters.
ENKAY EL Series earthquake Isolator test systems has ability to applicate Load (100 kN – 20000 kN Vertically, 5 kN – 5000 kN horizontally . Upper limits can be exceeded optionally.Can work synchronous at least 2 – axis (Horizontal and Vertical ) , Equipped with High Technology , was designed with high – tech mechanic criterion such as Frame Rigidness, Special Actuator with minimum friction and shaking Table Parameter etc, has very high data acquisition rate (at least 1000 data per second, up to 10000 data per second), can proceed shear displacement moves up to % 150 percent on long earthquake isolator designs, which has 1500 mm or longer dimension. This displacement moves are cyclic, and its speed interval is between 100 mm/sec and 2000 mm/sec.
