Universal Coring Machine, Coring Range (16-162mm)
Universal Coring Machine, Coring Range 16-162 mm, 220 -240 V 50-60 Hz
EKE 0300:
The EKE 0300 (1600 W) Universal Coring Machines are powerful diamond drillings units serve for shock free drilling in to concrete, natural stone and asphalt with diameter ranges 16-162 mm respectively.
EKE 0320: Coring Bit for Concrete Sampling , 50 mm dia.
EKE 0322: Coring Bit for Concrete Sampling , 75 mm dia.
EKE 0324: Coring Bit for Concrete Sampling , 100 mm dia.
EKE 0326: Coring Bit for Concrete Sampling , 150 mm dia.
EKE 0328: Coring Bit for Concrete Sampling , 200 mm dia.
EKE 0330: Coring Bit for Asphalt Sampling , 50 mm dia.
EKE 0332: Coring Bit for Asphalt Sampling , 75 mm dia.
EKE 0334: Coring Bit for Asphalt Sampling , 100 mm dia.
EKE 0336: Coring Bit for Asphalt Sampling , 150 mm dia.
This model is optimal complements to handheld drilling machines:
• Mechanical oil-bath gearbox with integrated oil pump for durable lubrication of the armature pinion
• Electronic – soft start, temperature control and over current cut off, optical overload indication, constant speed operation.
• Quick – change plate for Motor/Rig
• Shaft seals replaceable from the outside
• Cut-off carbon brushes from the motor
• Mechanical safety clutch
The Universal Coring Machine Consists of:
- Drilling Motor
- Motor Cardle
- Base Plate
- Mounting Apparatus (between drilling motor and the cradle)
Specifications:
• Power : 1600 W
• Calls of Protection : 1
• Drilling Diameter : 16-162 mm
• No-Load Speed : 650/1380 r.p.m
• Gearbox : 2-speed/oil bath
• Dimensions : 500 x 300 x 1150 mm
• Weight (Approx.) : 18 kg

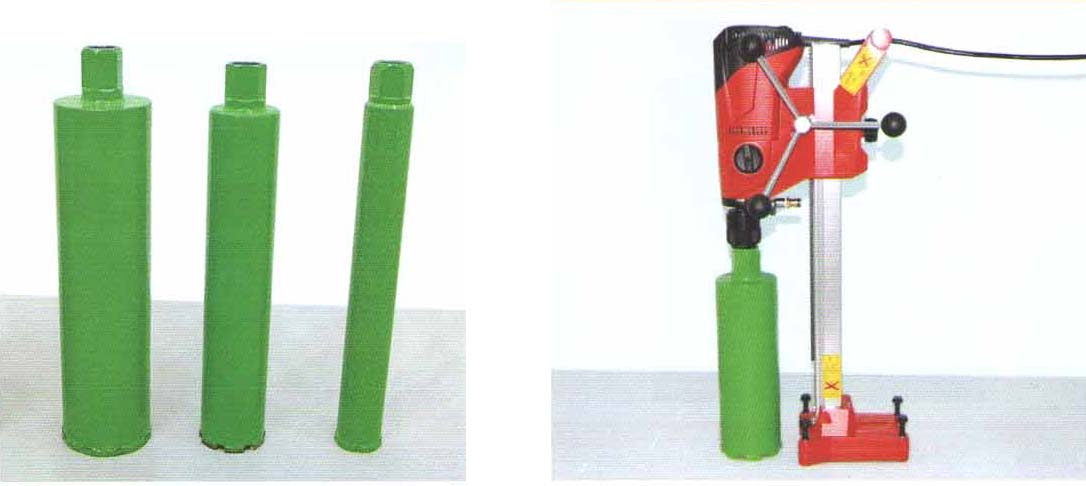

Universal Coring Machine, Coring Range ( 25-202mm)
Universal Coring Machine, Coring Range 25-202 mm, 220 -240 V 50-60 Hz
EKE 0310:
The EKE 0310 (2200 W) Universal Coring Machines are powerful diamond drillings units serve for shock free drilling in to concrete, natural stone and asphalt with diameter ranges 25-202 mm respectively.
EKE 0320: Coring Bit for Concrete Sampling , 50 mm dia.
EKE 0322: Coring Bit for Concrete Sampling , 75 mm dia.
EKE 0324: Coring Bit for Concrete Sampling , 100 mm dia.
EKE 0326: Coring Bit for Concrete Sampling , 150 mm dia.
EKE 0328: Coring Bit for Concrete Sampling , 200 mm dia.
EKE 0330: Coring Bit for Asphalt Sampling , 50 mm dia.
EKE 0332: Coring Bit for Asphalt Sampling , 75 mm dia.
EKE 0334: Coring Bit for Asphalt Sampling , 100 mm dia.
EKE 0336: Coring Bit for Asphalt Sampling , 150 mm dia.
This model is optimal complements to handheld drilling machines:
• Mechanical oil-bath gearbox with integrated oil pump for durable lubrication of the armature pinion
• Electronic – soft start, temperature control and over current cut off, optical overload indication, constant speed operation.
• Quick – change plate for Motor/Rig
• Shaft seals replaceable from the outside
• Cut-off carbon brushes from the motor
• Mechanical safety clutch
The Universal Coring Machine Consists of:
- Drilling Motor
- Motor Cradle
- Base Plate
- Mounting Apparatus (between drilling motor and the cradle)
Specifications:
• Power : 2200 W
• Calls of Protection : 1
• Drilling Diameter : 25-202 mm
• No-Load Speed : 420/700/1570 r.p.m
• Gearbox : 3-speed/oil bath
• Dimensions : 500 x 300 x 1150 mm
• Weight (Approx.) : 20 kg
