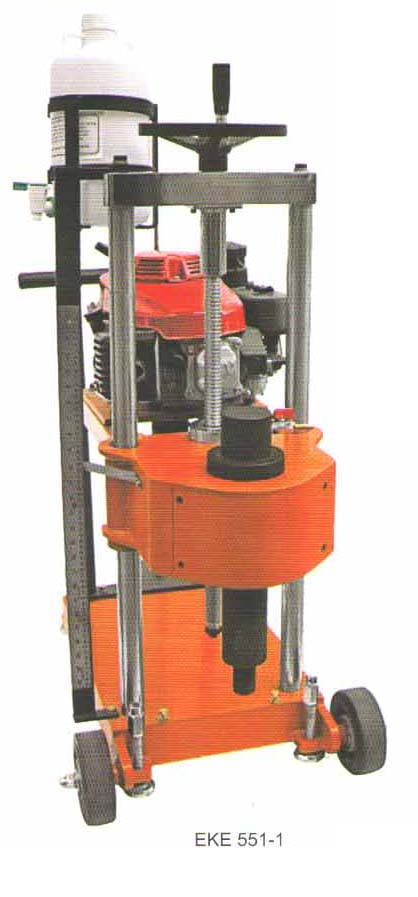

    Pavement Core Drilling Machine Petrol Version

    Pavement Core Drilling Machine Petrol Version
    Ref. Standard EN : 12504-1

    EKE 551-1:

    The pavement core drilling machine, Petrol engine powered road building drill has been designed specifically for the purpose of drilling test core from or holes in roads airport runways, bridges etc.

     The machine comprises of two vertical support columns which carry the drill head/engine assembly accurately with the help of screwed spindle.
    The 6 HP diesel engine with pulley mechanism works with minimum vibrations, the double precision bit advances with screwed spindle which provides a constant, accurate drill pressure. Minimum core chipping & long bit life,
    The complete assembly is supplied on a rigid metal base with levelling facility and is suitable for vertically down coring applications only.

    Bit diameter  150 mm.
    Maximum depth of core  400 mm.
    Drill speed Variable speed from 900 & 1200 rpm.
    Drive 6 HP Petrol Engine.
    Guide Shafts  40 mm dia.
    Screwed Spindle 20 mm dia.
    Water Tap 12 mm.
    Drill Wrenches Included

    Optional Accessories:
    EKE 551101: Diamond Core Bit, 50 mm dia. x 200 mm long
    EKE 551105: Diamond Core Bit, 75 mm dia. x 200 mm long
    EKE 551109: Diamond Core Bit, 100 mm dia. x 200 mm long
    EKE 551114: Diamond Core Bit, 150 mm dia. x 200 mm long
    EKE 551103: Diamond Core Bit, 50 mm dia. x 400 mm long
    EKE 551107: Diamond Core Bit, 75 mm dia. x 400 mm long
    EKE 551108: Diamond Core Bit, 100 mm dia. x 400 mm long
    EKE 551120: Diamond Core Bit, 150 mm dia. x 400 mm long

    Note 1:  Standard Diamond core bit is suitable for taking out core from, Cement, Asphalt, Surface/ Block,Hilti Make core bit recommended for taking reinforced Concrete Surface / Block

    Note 2  Continuous supply of water is essential for smooth functioning of the machine
