Data Acquisition System & Software
Data Acquisition System and Software

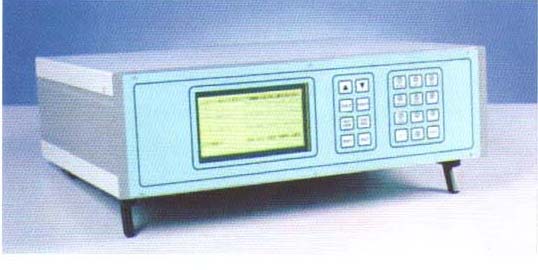

EKE 3000:
The EKE 3000 range is the latest range of data loggers from Enkay which represents the loading edge of electronics design and innovation.
Ideally suited to Soil Machines Laboratories, these state of the art data loggers are simple to use and flexible in operation. Furthermore these systems can make considerable improvement in laboratory productivity and cost effectiveness by automating test data collection.
The laboratory technician can perform other duties whist the test is being conducted.
Features:-
• Up to 64 input analogue channels , 32 of which may be digital
• Up to 64 tests can be run fully independently
• Automatic data collection
• Automatic test start and stop conditions.
• User programmable time intervals for data collection
• On board large graphics display and keypad
• Menu driven command selection
• Battery backed data storage and real time clock
• Non – volatile storage of channel calibration data
• On screen live displays of graph and data tabulation
• Built in transducer excitation supply
• Supplied with WinHOST Windows “based software”
The EKE 300 data logger is supplied as a fully configurable system, which can be upgraded by adding channel modules. Up to 32 internal analogue channels, in blocks of 8 channels can be housed within the logger itself and a further 32 channels can be added externally by daisy chaining junction boxes each with the 4 analogue or digital channels
Logging Rate:
• Linear 0.1 sec to HH:MM:SS
• User Configurable Table 1
• User Configurable Table 2
• Reference Channel Incremental Mode
Logging Trigger:
• Configurable delay period for each channel from 1 second to HH:MM:SS
• Greater than a channel value
Logging Stop:
• Configurable period of 1 second to HH:MM:SS
• Greater than a channel value
Specifications:
• Analogue Channel Input : LSCT, Pressure or Load Cell ( 0 – 1000mV)
• Transfuse Excitation Supply : 1 OVDC
• Digital Channel Input : Digital Dial Gauge Input (can be used to Load, Strain or Volume)
• Local Display : Large Graphic display ( 240 x 128 pixels)
• Key Pad : 20 Key
• Clock : Battery backed real time clock
• Data Storage : Up to 12000 readings for a single channel
• Host PC Link : Via RS232, 9600 baud, 8 data bits and 1 stop bit
• Power Supply : 110-240 V AC 1 ph
• Dimensions (LxWxH) : 380 x 450 x 150 mm
• Weight : 8 kg
