CONSISTENCY AND WORKABILITY

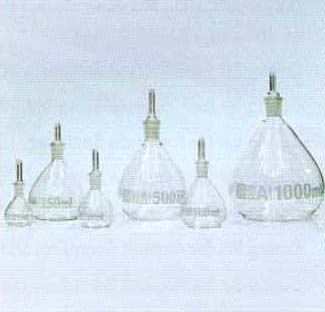

Pyknometer (Specific Gravity Bottle) – 250 ml

EKE 1515:

Pyknometer (Specific Gravity Bottle) – 250 ml, Dimensions : 100 x 100 x 150 mm , Weight : 0.1 kg


Consistency And Workability
Slump Test Apparatus
Ref. Standard: IS:7320, BS:1881, ASTM C143, AASHTO T119

EKE 334:

The slump cone is filled with freshly mixed concrete and tamped with a tamping bar in four layers. The top of the concrete is leveled off with the top of  the slump cone., the cone is lifted vertically up and the slump of the sample is immediately measured.
Base has clears on its underside to help dig into the ground surface .
Positive clamping of slump cone to the base while filling and tamping the concrete.
A combination swivel carrying handle also serves as the datum making the conventional and somewhat awkward measuring procedure of using a foot rule and a datum bar , a thing of the past.
Supplied complete with base plate , having cleats and swivel handle and  EKE 345 Tamping Road of 16 mm dia. x 60 cm long

Optional Extra:

EKE 33401 Slump Cone

Conforms to IS:7320, BS:1881, ASTM C143, AASHTO T119 specifications
Made of sheet steel , suitable protected against corrosion

Consistency and Workability
J-Ring
Ref. Standard : ASTM C1621

EKE 334J:

These tests are used to determine the flow ability and passing ability of Self – Consolidating Concrete (SCC) as defined in ASTM C1621. Passing ability refers to the ability of SCC, under its own weight (without vibration) , to flow into and completely fill the spaces within an intricate , containing obstacles such as reinforcement bars.

This test method provides a procedure to determine the passing ability of self-consolidating concrete mixtures. The difference between the slump flow and J-Ring flow is an indication of the passing ability of the concrete. The test method is applicable for laboratory use in comparing the passing ability of different concrete mixture. It is also applicable in the field as a quality control test. It can also be used to investigate the resistance  of SCC to segregation by comparing test results from two different portions of sample. The J-Ring test measures three parameters : flow spread , flow time and blocking step, the J-Ring flow spread indicates the restricted deformability of SCC due to blocking effect of reinforcement bars and the flow time indicates the rate of deformation within a defined flow distance. The blocking step quantifies the effect of blocking.

The equipment consist of the following replaceable parts:
EKE 334J01: Base Plate of Size 1000 mm x 1000 mm – 1 No
EKE 334J02: Slump Cone ( 100 mm IS at top x 200 mm at bottom x 300 mm height) – 1 No
EKE 334J03: Straight rod of at least one flat side with flexure less than 1 mm – 1 No
EKE 334J04: Measuring Scale 0-600 mm – 1 No
EKE 334J05: Sprit Level – 1 No
EKE 334J06: Stop Watch with accuracy of 0.1 second – 1 No

Consistency and Workability
L- Box

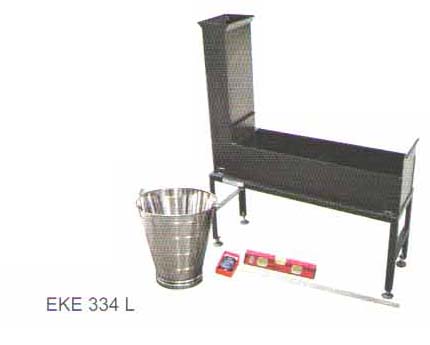

EKE 334L:
These tests are used to determine the flow ability and passing ability of Self – Consolidating Concrete (SCC) as defined in ASTM C1621. Passing ability refers to the ability of SCC, under its own weight (without vibration) , to flow into and completely fill the spaces within an intricate , containing obstacles such as reinforcement bars.

L Box to investigating the flow rate and passing ability of SCC (Self – consolidating concrete) in confined spaces.  It measures the reached height of fresh SCC after passing through the specified gaps of steel bars flowing within a defined flow distance. With this reached height, the passing or blocking behavior of SCC cam be estimated.

The equipment consist of the following replaceable parts:
EKE 334L01: L-Box with three smooth bars equally spaced and gate – 1 No
EKE 334L02: Bucket Capacity of 14 Litters – 1 No
EKE 334L04: Measuring Scale 0-600 mm – 1 No
EKE 334L05: Sprit Level – 1 No
EKE 334L06: Stop Watch with accuracy of 0.1 second – 1 No

Consistency and Workability
U-Box

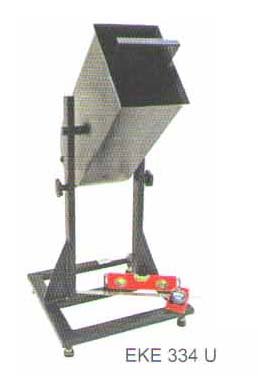

EKE 334U:

These tests are used to determine the flow ability and passing ability of Self – Consolidating Concrete (SCC) as defined in ASTM C1621. Passing ability refers to the ability of SCC, under its own weight (without vibration) , to flow into and completely fill the spaces within an intricate , containing obstacles such as reinforcement bars.

The U shape Box is used to determine the confined flow ability and the capacity of SCC concrete to flow within confined space. The box is made of steel frame consisting of three bars.

In this test the degree of compatibility can be indicated by the height through an obstacles. The quality of the concrete can be judged by the height reached.

The equipment consist of the following replaceable parts:
EKE 334L02: Bucket Capacity of 14 Litters – 1 No
EKE 334L04: Measuring Scale 0-600 mm – 1 No
EKE 334L05: Sprit Level – 1 No
EKE 334L06: Stop Watch with accuracy of 0.1 second – 1 No

Consistency and Workability
V-Funnel

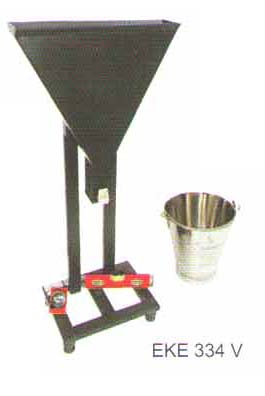

EKE 334V:

These tests are used to determine the flow ability and passing ability of Self – Consolidating Concrete (SCC) as defined in ASTM C1621. Passing ability refers to the ability of SCC, under its own weight (without vibration) , to flow into and completely fill the spaces within an intricate , containing obstacles such as reinforcement bars.

The V-funnel time is the period a defined volume of SCC  Self – Consolidating Concrete needs to pass a narrow opening and  gives an indication of the filling ability of SCC provided that blocking and or segregation do not take place, the flow time of the V- Funnel test is to some degree related to the plastic viscosity
The equipment consist of the following replaceable parts:
EKE 334L02: Bucket Capacity of 14 Litters – 1 No
EKE 334L05: Sprit Level – 2 Nos
EKE 334L06 Stop Watch with accuracy of 0.1 second – 1 No

Consistency and Workability
Vee Bee Consistometer
Ref. Standards : IS:10510,IS:1199, BS 1881 (Part104) , AASHTO T126

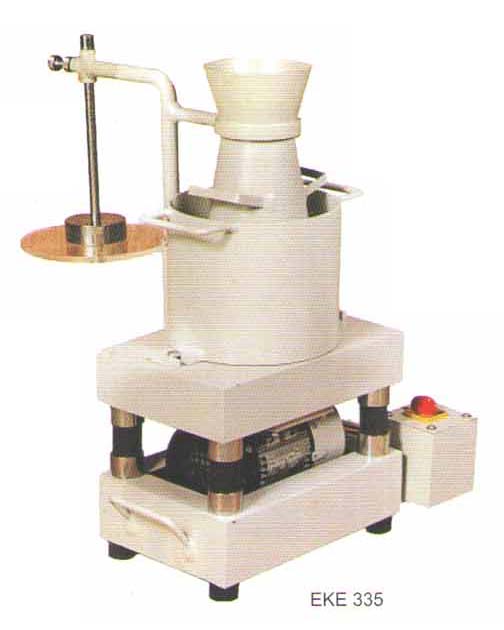

EKE 335:

This made is a mechanical variation of the simple  slump test which includes determination of the workability of concrete. The concrete is formed in a slump cone positioned in a container, and it is vibrated after removing the cone on a small vibrating table operating at a fixed amplitude and frequency.
A plastic spacer disc in contact with the upper surface of the wet concrete guides the operator to judge when the compaction is complete. The time to complete the required vibrations gives an indication of the workability of concrete, which is expressed in Vee-Bee degrees.
Consists of a vibrating table, Specimen pot, Slump Cone, Graduated Rod and Acrylic plate. Suitable on 415 V, 3 Phase, 50 Hz, AC Supply.

Flow Test
Flow Table , Motorised
Ref. Standard : IS:1199, AASHTO T126

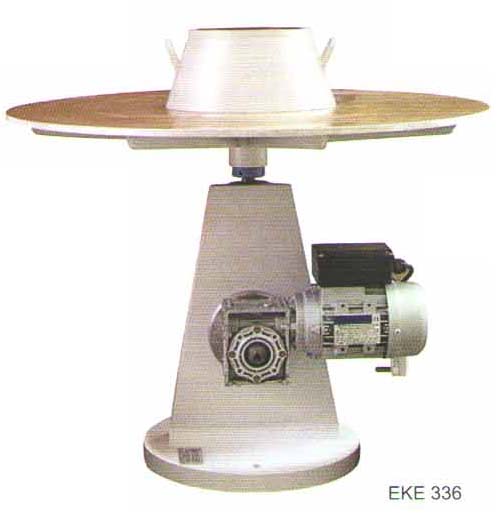

EKE 336:

The flow table is designed to determining the workability of Portland cement concrete.

The Flow Table top is 76.2 cm. dia. finely machined from a solid brass casting. The integrally cast ribs are designed for support strength. The stand is fabricated out of cast iron and is of sturdy construction. Holes for mounting on foundations are drilled in the base plate. The ground and hardened steel cam is designed to drop the table by 12.5 mm.

Supplied complete as described above, with an electric motor suitable for operation with 220 Volts, 50 Hz, Single Phase, AC Supply.

Compaction Factor
Ref. Standard : IS :5515

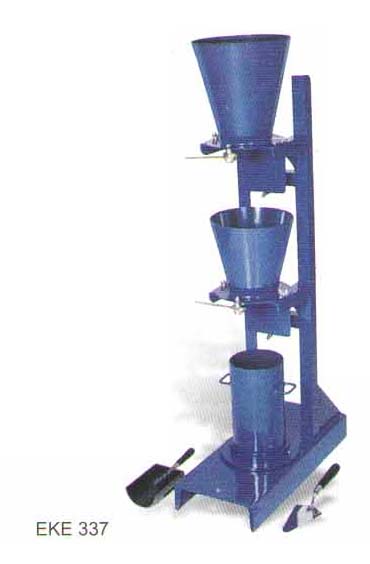

EKE 337:
Compaction Factor is the ratio of the weight of partially compacted concrete to the weight of the concrete when fully compacted in the same mould. The weight of partially compacted concrete in relation to its fully compacted state is a reasonably good indication of the workability of concrete.
A useful for determination of workability determination of concrete mixes of very low workability such as those normally used with concrete , compacted by vibration. Concrete mix having maximum size of aggregate not exceeding 38mm can be tested for workability.
Apparatus is complete with hoppers and receiver assembly . EKE 345 Tamping Rod of16 mm dia. x 60 cm long having a Hooper and two trowels.
