Concrete

    CONCRETE STRENGTH/ HYDRAULIC JACKS

    Book Now Your Machine

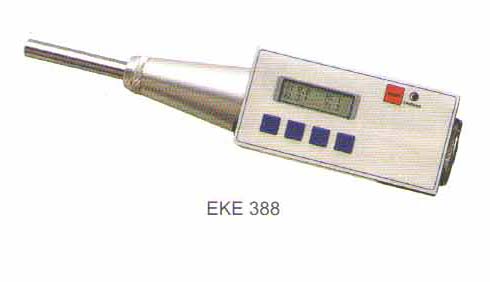

    Concrete Test Hammer - Digital

    Concrete Test Hammer - Digital
    Ref. Standard : IS 13311 – 1982 (Part 2)  & ASTM C805 , D5873

    EKE 388:

    The Concrete Test Hammer  is an instrument used for the non destructive testing of concrete. It allows one to have a quick estimate of the strength of concrete. Since it simply gives an indication based of surface properties.

    Measuring Range : 10 to 70 N/mm²
    Impact Energy : 2.207 Nm

    Hydraulic Jacks – 50 KN

    Hydraulic Jacks – 50 kN

    EKE 465:

    Hydraulic Jacks have multipurpose utility, i.e application of loads while encaged in filed investigation , determination of load carrying capacity of pipes in the field, tensioning of wires in pre-cast structures, loading of members of any structure of reformations characteristics , etc.. The jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type pressure gauge and a steel connecting pipe.

    All the jacks have a piston travel of 50 mm and jacks upto 500 kN capacity are provided with retraction springs.

    High Pressure Flexible Hose Pipe is required for connecting the pumping unit to the Hydraulic Jack. This is an essential extra to be ordered with the jacks

    •    Capacity : 50 kN
    •    Readable To : 0.5 kN
    •    Piston Dia. : 50 mm

    The hose pipe is available in varied lengths as indicated below:
    EKE 47501:  High Pressure Flexible Hose , 1 m Long
    EKE 47502:  High Pressure Flexible Hose , 2 m Long
    EKE 47503:  High Pressure Flexible Hose , 5 m Long , metallic

    Essential Accessories:
    EKE 475 Hydraulic Hand Operated Pump , with Load Gauge 150 mm dia.

    Hydraulic Jacks – 100 KN

    Hydraulic Jacks – 100 kN

    EKE 466:

    Hydraulic Jacks have multipurpose utility, i.e application of loads while encaged in filed investigation , determination of load carrying capacity of pipes in the field, tensioning of wires in pre-cast structures, loading of members of any structure of reformations characteristics , etc.. The jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type pressure gauge and a steel connecting pipe.

    All the jacks have a piston travel of 50 mm and jacks upto 500 kN capacity are provided with retraction springs.

    High Pressure Flexible Hose Pipe is required for connecting the pumping unit to the Hydraulic Jack. This is an essential extra to be ordered with the jacks

    •    Capacity : 100 kN
    •    Readable To : 1 kN
    •    Piston Dia. : 75 mm

    The hose pipe is available in varied lengths as indicated below:
    EKE 47501:
     High Pressure Flexible Hose , 1 m Long
    EKE 47502:  High Pressure Flexible Hose , 2 m Long
    EKE 47503:  High Pressure Flexible Hose , 5 m Long , metallic

    Essential Accessories:
    EKE 475 Hydraulic Hand Operated Pump , with Load Gauge 150 mm dia.

    Hydraulic Jacks – 250 KN

    Hydraulic Jacks – 250 kN

    EKE 467:

    Hydraulic Jacks have multipurpose utility, i.e application of loads while encaged in filed investigation , determination of load carrying capacity of pipes in the field, tensioning of wires in pre-cast structures, loading of members of any structure of reformations characteristics , etc.. The jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type pressure gauge and a steel connecting pipe.

    All the jacks have a piston travel of 50 mm and jacks upto 500 kN capacity are provided with retraction springs.

    High Pressure Flexible Hose Pipe is required for connecting the pumping unit to the Hydraulic Jack. This is an essential extra to be ordered with the jacks

    •    Capacity : 250 kN
    •    Readable To : 2 kN
    •    Piston Dia. : 75 mm

    The hose pipe is available in varied lengths as indicated below:
    EKE 47501:  High Pressure Flexible Hose , 1 m Long
    EKE 47502:  High Pressure Flexible Hose , 2 m Long
    EKE 47503:  High Pressure Flexible Hose , 5 m Long , metallic

    Essential Accessories:
    EKE 475 Hydraulic Hand Operated Pump , with Load Gauge 150 mm dia.

    Hydraulic Jacks – 500 KN

    Hydraulic Jacks – 500 kN

    EKE 468:

    Hydraulic Jacks have multipurpose utility, i.e application of loads while encaged in filed investigation , determination of load carrying capacity of pipes in the field, tensioning of wires in pre-cast structures, loading of members of any structure of reformations characteristics , etc.. The jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type pressure gauge and a steel connecting pipe.

    All the jacks have a piston travel of 50 mm and jacks upto 500 kN capacity are provided with retraction springs.

    High Pressure Flexible Hose Pipe is required for connecting the pumping unit to the Hydraulic Jack. This is an essential extra to be ordered with the jacks

    •    Capacity : 500 kN
    •    Readable To : 5 kN
    •    Piston Dia. : 110 mm

    The hose pipe is available in varied lengths as indicated below:
    EKE 47501:  High Pressure Flexible Hose , 1 m Long
    EKE 47502:  High Pressure Flexible Hose , 2 m Long
    EKE 47503:  High Pressure Flexible Hose , 5 m Long , metallic

    Essential Accessories:
    EKE 475 Hydraulic Hand Operated Pump , with Load Gauge 150 mm dia.

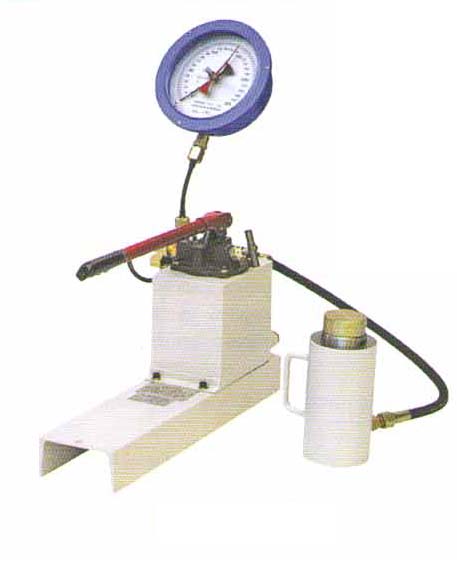

    Hydraulic Jacks – 1000 KN

    Hydraulic Jacks – 1000 kN

    EKE 469:

    Hydraulic Jacks have multipurpose utility, i.e application of loads while encaged in filed investigation , determination of load carrying capacity of pipes in the field, tensioning of wires in pre-cast structures, loading of members of any structure of reformations characteristics , etc.. The jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type pressure gauge and a steel connecting pipe.

    All the jacks have a piston travel of 50 mm and jacks upto 500 kN capacity are provided with retraction springs.

    High Pressure Flexible Hose Pipe is required for connecting the pumping unit to the Hydraulic Jack. This is an essential extra to be ordered with the jacks

    •    Capacity : 1000 kN
    •    Readable To : 5 kN
    •    Piston Dia. : 152.4 mm

    The hose pipe is available in varied lengths as indicated below:
    EKE 47501:  High Pressure Flexible Hose , 1 m Long
    EKE 47502:  High Pressure Flexible Hose , 2 m Long
    EKE 47503:  High Pressure Flexible Hose , 5 m Long , metallic

    Essential Accessories:
    EKE 475 Hydraulic Hand Operated Pump , with Load Gauge 150 mm dia.

    Hydraulic Jacks – 2000 KN

    Hydraulic Jacks – 2000 kN

    EKE 470:

    Hydraulic Jacks have multipurpose utility, i.e application of loads while encaged in filed investigation , determination of load carrying capacity of pipes in the field, tensioning of wires in pre-cast structures, loading of members of any structure of reformations characteristics , etc.. The jacks are supplied complete with manually operated pumping units fitted with Bourdon tube type pressure gauge and a steel connecting pipe.

    All the jacks have a piston travel of 50 mm and jacks upto 500 kN capacity are provided with retraction springs.

    High Pressure Flexible Hose Pipe is required for connecting the pumping unit to the Hydraulic Jack. This is an essential extra to be ordered with the jacks

    •    Capacity : 2000 kN
    •    Readable To : 10 kN
    •    Piston Dia. : 215.4 mm

    The hose pipe is available in varied lengths as indicated below:
    EKE 47501:  High Pressure Flexible Hose , 1 m Long
    EKE 47502:  High Pressure Flexible Hose , 2 m Long
    EKE 47503:  High Pressure Flexible Hose , 5 m Long , metallic

    Essential Accessories:
    EKE 475 Hydraulic Hand Operated Pump , with Load Gauge 150 mm dia.
