COMPRESSION AND FLEXURAL TEST

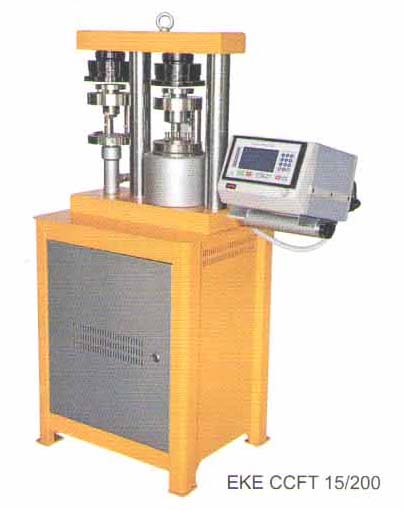

Cement Compression And Flexural Tester

EKE CCFT 15/200:

-    Designed to be fully automatic
-    Equipped with an LCD Data Acquisition Control System
-    The load rate is automatically controlled upon the samples
-    Provided with a double testing chamber. It performs flexure test for the size (40 x 40 x 160 mm) and compression test on cubes of size ( 40 x 40 x 40 mm) and or ( 50 x 50 x 50 mm)
-    The test   results can be transferred to a computer (should be ordered separately) or a thermal printer (should be ordered separately)
-    User – friendly 5-points calibration

Technical Specifications:
•    Capacity : 15 kN/200kN (Flexure/Compression)
•    Rigid 2-Column frame
•    Used for flexure  and compression tests on cement samples
•    Full Automatic
•    LCD Graphical Data Acquisition Control System
•    Stops Automatically upon test completion
•    Real time graph indication
•    Maximum load and stress are shown
•    Unit selection available (kN, kgf. Lgf)
•    User – friendly 5-ponts calibration (Password Protected)
•    Power supply : 220 – 240 V / 50 Hz (110 V/60 Hz is available )

Supplied with:
•    Compression Jig (for 50 x 50 mm or 40 x 40 mm cube specimens)
•    Flexural Jig (for 40 x 40 x 160 prism specimen)

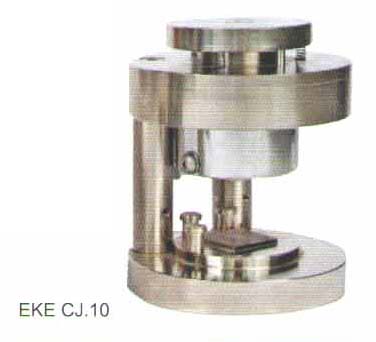

Compression Jig

EKE C.J.10:

-    Used for cement compression for the cubes of sizes 40 or 50 mm
        (to be specified at the time of order)
-    The platens have hardness of 60 HRC and the upper one is seat – ball assembled
-    Rust- protected by cadmium coating

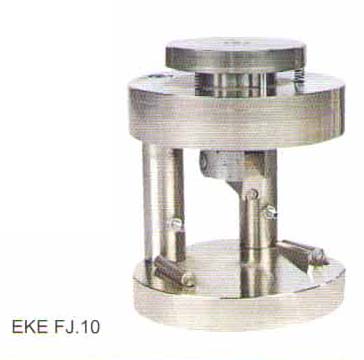

Flexural Jig

EKE F.J.10:

-    Used for cement Flexural for the cubes of sizes 40 or 50 mm
(to be specified at the time of order)
-    The platens have hardness of 60 HRC and the upper one is seat – ball assembled
-    Rust- protected by cadmium coating

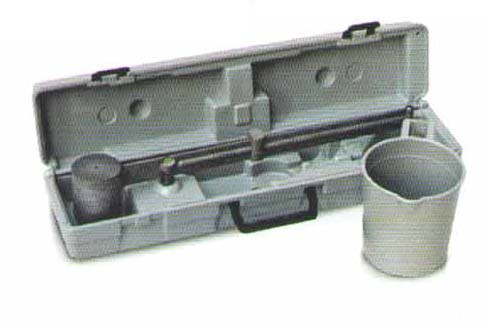

Mud Balance

EKE MB:

-    Used to determine the density of the mud
-    Consists of a graduated arm with a cup, lid, knife edge , counter weight and carrying case

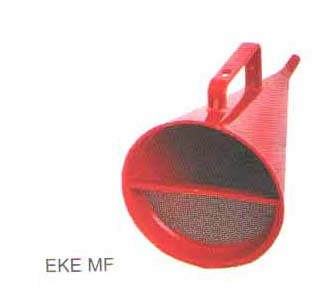

Marsh Funnel

EKF MF:

-    Used to determine the viscosity of the drilling mud and other fluid materials
-    Consists of a funnel  and graduated cup. Both made from a very strong and break- resistant plastic

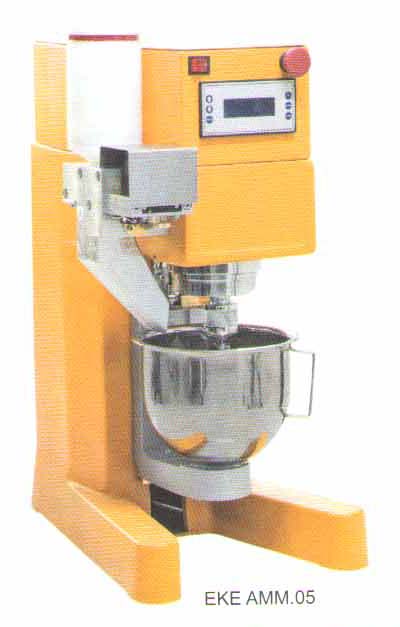

Automatic Cement & Mortar Mixer

EKE AMM.05:

-    Used to assure an efficient mixing for the cement and mortar
-    Can take a capacity up to 5 litters
-    The mixer is equipped with a planetary mixing mechanism for better performance
-    The beater speed is adjustable between 140 rpm and 285 rpm
-    The mixer automatically add the sand at the correct time depending on the selected standard

Technical Specifications :
•    Automatic Mixing
•    Bowl capacity : 5 Litter
•    Planetary mixing action
•    Beater Speeds : 140 rpm / 285 rpm
•    Power Supply : 380 V ( 3 phase)
