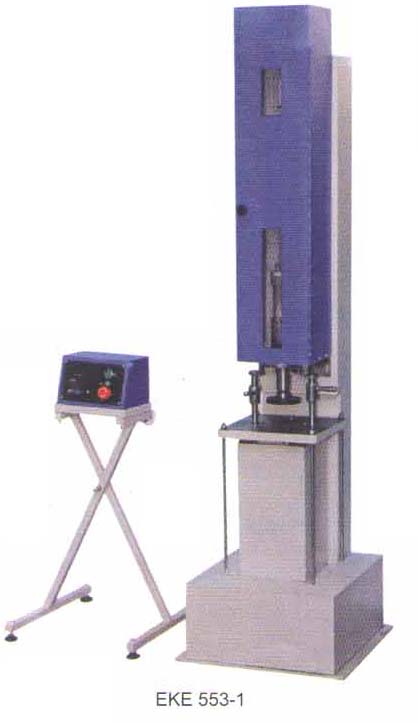

Automatic Compaction For Bituminous Mixes
Automatic Compaction for Bituminous Mixes
EKE 553-1:
• Rugged construction to withstand hard work.
• Fully automatic and easy to operate.
• Uniform compaction.
• Automatic Blow Counter.
The Automatic compactor eliminates the laborious process of manual compaction and allows achievement of seven degree of compaction is achieved, the drive mechanism lifts the weight of 4.5 kg and drop it through a height of 457 mm.
The rammer foot is removable, which facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An automatic blow counter enables the number of blows to be preset before each test and automatically stops the machine on completion.
Suitable for operation on 230V, 50 Hz, single phase, AC supply.

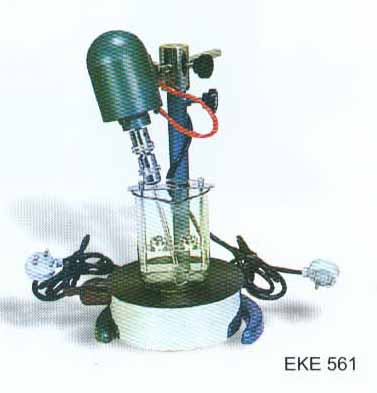

Ring And Ball Apparatus
Ring and Ball Apparatus
EKE 561:
Electrical heating, with a Heater and Energy regulator. Suitable for operation on 220V, 50 Hz, single phase, AC supply, each unit is supplied with a bath of heat resistant glass and the following:
| Tapered ring | 2 Nos. |
| Ball Centering Guide | 2 Nos. |
| Steel Balls of 9.5 mm dia | 2 Nos. |
| Ring Holder | 1 Nos. |
| Electric Heater (Hot plate) | 1 No |
