CHARPY IMPACT TESTING MACHINE (NON-METALS)

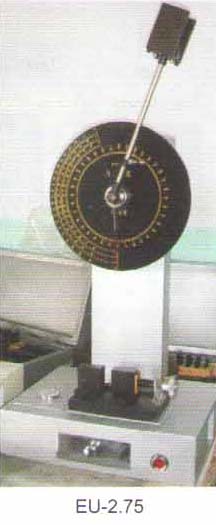

Non Metal Materials Izod Charpy Impact Testing Machine – 2.75

EU – 2.75:

Main Functions:
EU Series Pendulum Impact Testing Machine is used for test or determine the anti – impact capacity of non – metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass and dielectric etc. be adopted by scientific Research Industries, Colleges, materials manufactures and laboratories.

The machine is developed according to the standard of ISO 180-82 or ASTM D256

Also, it has advantages of simple in structure, easy to operate and high accuracy.

Specifications:
•    Impact Energy : 1 J 2.75 J
•    Impact Velocity : 3.5 mv/s
•    Raising Angle : 160°
•    Impact semi diameter : 0.322m
•    Pendulum Movement:PL(1J) = 0.5155N-m
                                        Pl(5.5J)=11.3419N-m
•    Distance between striking edge to upper surface of clamps : 22 mm

Non Metal Materials Izod Charpy Impact Testing Machine – 22

EU – 22:

Main Functions:
EU Series Pendulum Impact Testing Machine is used for test or determine the anti – impact capacity of non – metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass and dielectric etc. Be adopted by scientific Research Industries, Colleges, materials manufactures and laboratories.

The machine is developed according to the standard of ISO 180-82 or ASTM D256

Also, it has advantages of simple in structure, easy to operate and high accuracy.

Specifications:
•    Impact Energy : 5.5J 11J 22J
•    Impact Velocity : 3.5 mv/s
•    Raising Angle : 160°
•    Impact semi diameter: 0.322m
•    Pendulum Movement: PL(2.75J) = 1.4177N-m
                                         Pl(11J)=5.6710N-m
                                         PL(22J)=11.3419N/m
•    Distance between striking edge to upper surface of clamps : 22 mm

Metal Materials Izod Charpy Impact Testing Machine EJ-5

EJ-5:

Main Functions:
Pendulum Impact Testing Machine  is used to test or determine the anti – impact capacity of non-materials, such as hard plastic , enhanced nylon, ceramic, toughened glass and dielectric etc. Be adopted by scientific Research Industries, Colleges, materials manufactures and laboratories.

The machine is developed according to the standard of ISO 180-82

Also, it has advantages of simple in structure, easy to operate and high accuracy.

Specifications:
-    Impact Velocity : 2.9m/s
-    Pendulum Energy : 0.5J 1J 2J 4J 5J
-    Raising Angle : 160°
-    Distance between cendulunters of pendulum and specimen: 380 mm
-    Pem Moment: 0.5J PL=0.25Nm
                              2J PL=1.03Nm
                              5J PL = 2.578Nm
                              15J PL=7.773Nm
                              50J PL=25.77Nm
-    Dial Scales    0.05J minimum scale
     0.2J minimum scale: 0.02J
     0.5J minimum scale: 0.05J
     0.15J minimum scale:0.15J
     0.50J minimum scale : 0.5J
    -Corner Dimension of Striking edge : 30 degree
    -Round angle radius of striking edge : R=2mm
    -Specimen : Conform to ISO 180

Metal Materials Izod Charpy Impact Testing Machine - EJ-50

EJ-50:

Main Functions :
Pendulum Impact Testing Machine  is used to test or determine the anti – impact capacity of non-materials, such as hard plastic , enhanced nylon, ceramic, toughened glass and dielectric etc. Be adopted by scientific Research Industries, Colleges, materials manufactures and laboratories.

The machine is developed according to the standard of ISO 180-82

Also, it has advantages of simple in structure, easy to operate and high accuracy.

Specifications:
-    Impact Velocity : 3.8m/s
-    Pendulum Energy : 7.5J 15J 25J 50J
-    Raising Angle : 160°
-    Distance between cendulunters of pendulum and specimen: 380 mm
-    Pem Moment: 1J PL=0.516Nm
                             4J PL=2.06Nm
                             7.5J PL = 3.866Nm
                             25 PL= 12.889Nm
-    Dial Scales    0.005J  0.1J minimum scale 0.01J
     -0.4J minimum scale: 0.04J
     -0.75J minimum scale: 0.075J
     -0.25J minimum scale:0.075J
     -0.50J minimum scale : 0.5J
     -   Corner Dimension of Striking edge : 30 degree
     -   Round angle radius of striking edge : R=2mm
     -   Specimen : Conform to ISO 180

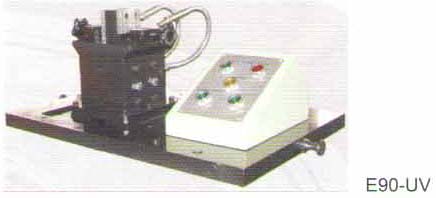

Sample Preparation Machine for Impact Test (Automatic)

E90-UV:

Main Function:
This machine is mainly used to make U or V shape notches on impact test samples. The machine can cut this notch with only  one stroke of the cutting knife. Easy and fast , be suitable for preparing  the samples under continuously impact test in metal Laboratory, Inspection Department and other facilities

Specifications:
E 90-UV (Automatic ) sample preparation machine for 2 mm U/V notches
