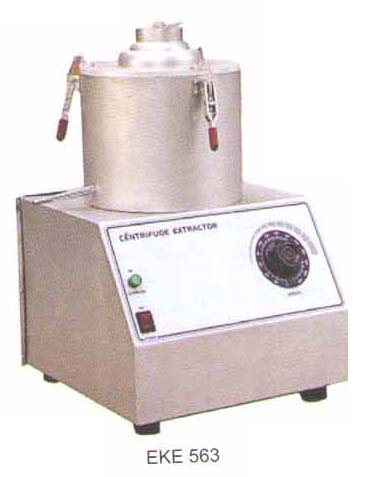

Centrifuge Extractor Electrically Operated
Centrifuge Extractor Electrically Operated
Ref. Standard ASTM D 2172, AASHTO T 58, T-164
EKE 563:
For determining bitumen percentage in bituminous paving mixtures.
It has a removable, precision machined, aluminium rotor bowl, mounted on a vertical shaft. A filter paper disc is pressed in between the rotor bowl and cover plate by tightening a knurled nut, the bowl assembly is enclosed in a housing mounted on a cast body. In the electrical operating model, the rotor bowl is coupled to a motor, the solvent may be introduced during test through a cup on the housing cover
Electrical operation capacity 1500g, with a Dimmer stat for speed control from 2,400 to 3,600 rpm.
Suitable for operation on 220V, 50Hz, single phase, AC supply
Each unit is supplied complete with a set of 25 filter paper Discs,
Optional Extra:
EKE 56301 Filter Paper Discs, Set of 25 numbers

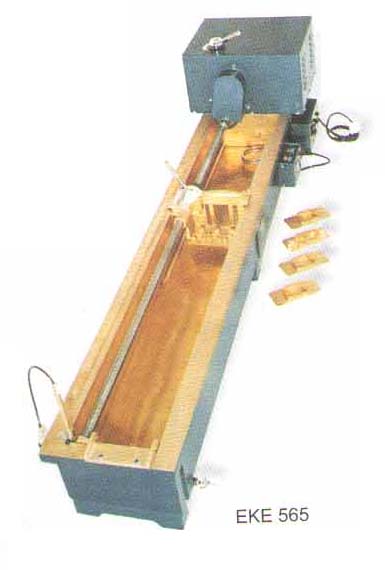

Ductility Testing Machine , Elect
Ductility Testing Machine , Electrically Operated, Digital
Ref. Standard IS: 1208, ASTM D113, AASHTOQ T51
EKE 565:
Designed to test three specimens simultaneously, the machine consists of a carriage moving over a lead crew, An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation, the entire assembly is mounted with water bath completely encased in metal bound hardwood, it is equipped with electric pump circulator and heater, the temperature is controlled digital temperature controller, two rates of travel. I.e. 5 cm/min and 1 cm / min are provided.
Suitable for operation on 220V, 50Hz, single phase, AC supply
Supplied complete with:
EKE 56501 Ductility Mould, With base plate…..4 Nos.
